You may remember way back in part 5 that we did some simple calculations by
hand to show that the classic racing line through a 90-degree right-hander is
better than the either the line that hugs the inside or the line that hugs the
outside of the corner. 'Better' means 'has lowest time.' The 'classic racing
line' was, under the assumptions of that article, the widest possible inscribed
line.
In this and the next instalment of The Physics of Racing, we raise the
bar. Not only do we calculate the times for all lines through a corner,
but we show a new kind of analysis for the exit, accounting for
simultaneously accelerating and unwinding the steering wheel after the apex.
This kind of analysis requires us to search for the lowest time because
we cannot calculate it directly. We apply the approximation of the traction
circle-subject of part 7-to stay within the capabilities of the car. We also
model a more complex segment than in part 5, including an all-important exit
chute where we take advantage of improved corner-exit speed. This style of
analysis applies directly to computer simulation that we now have in progress in
other continuing threads of The Physics of Racing.
The whole point of this analysis is to back up the old mantra: "slow-in,
fast-out." We will find that the quickest way through the whole segment
does not include the fastest line around the corner. Rather, we get
the lowest overall time by cornering more slowly so we can get back on the gas
earlier. It's always tempting to corner a little faster, but it frequently
does not pay off in the context of the rest of the track.
This analysis is sufficiently long that it will take two instalments of this
series. In this, the first instalment, we do exact calculations on a dummy
line, which is the actual line we will drive up to the apex, but just a
reference line after the apex. In the next instalment, we improve on the dummy
line by accelerating and unwinding, predicting the times for a line we would
actually drive, but entailing some small inexactitude.
Let's first describe the track segment. Imagine an entry straight of 650
feet, connected to a 180-degree left-hander with outer radius 200 feet
and inner radius 100 feet, connected to an exit chute of 650 feet. In the

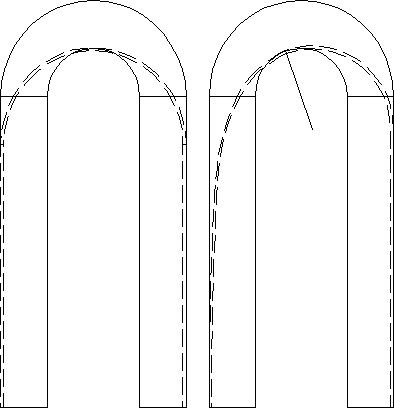

following sketch, we show the segment twice with different lines. The line on
the left contains the widest possible inscribed cornering radius, and therefore
the greatest possible cornering speed. The sketch on the right shows the line
with the lowest overall time. Although its cornering speed is slower than in the
line on the left, it includes a lengthy acceleration and unwinding phase on exit
that more than makes up for it.
Line with
Fastest Cornering Speed
Line with
Lowest Overall Time
Note that both lines begin on the extreme right-hand side of the entry
straight. Such will be a feature of every corner we analyse. Lines that begin
elsewhere across the entry straight may be valid in scenarios like passing.
However, we focus here on lines that are more obvious candidates for lowest
times. Also, throughout, we ignore the width of the car, working with the
'bicycle line'. If we were including the width, w, of the car, we
would get the same final results on a track with outer radius of
200 + w / 2 feet and inner radius of 100 - w / 2
feet.
First, we compute exact times where we can on the course: the entry straight,
the braking zone, and the corner up to the apex. To have a concrete baseline for
comparison, we also do a 'suboptimal' exit computation-the dummy line-that
includes completing the corner without unwinding and then running down the exit
chute dead straight somewhere in the middle of the track. In the next instalment
of The Physics of Racing, we compare the dummy line to the more
sophisticated exit that includes simultaneously accelerating and unwinding to
use up the entire width of the track in the exit chute.
Let us enter the segment in the right-hand chute at 100 mph = 146.667 fps
(feet per second). We want the total times for a number of different cornering
radii between two extremes. The largest extreme is a radius of 200 feet, which
is the same as the radius of the outer margin of the track. It should be obvious
that it is not possible to drive a circle with a radius greater than 200 feet

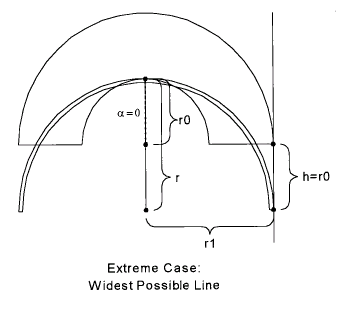

and still stay on the track. This extreme is depicted in the following sketch:
We take the opportunity, here, to define a number of parameters that will
serve throughout. First, let us call the radius of the outer edge of the track r1;
this is obviously 200 feet, but, by giving it a symbolic name, we retain the
option of changing its numeric value some other time. Likewise, let's call the
radius of the inner circle r0, now 100 feet. Let's use the symbol r
to denote the radius of the inscribed circle we intend to drive. In the extreme
case of the widest possible line, r is the same as r1, namely, 200
feet. In the other extreme case, that of the tightest inscribed circle, r is

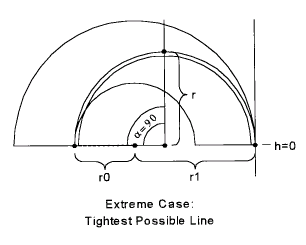

150 feet, as shown in the following sketch:
We're now ready to discuss the two remaining parameters you may have noticed:
h and
(Greek letter alpha). Consider the following figure illustrating the

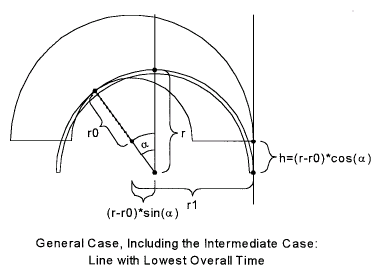

general case:
h indicates the point where we must be done with braking. More
precisely, h is the distance of the turn-in point below the
geometric start of the corner. Its value, by inspection, is (r - r0) cos
.
is the
angle past the geometric top where the inscribed circle-the driving line-apexes
the inner edge of the track. We see two values for the horizontal distance
between the centre of the inscribed circle and the centre of the inner edge, and
those values are (r - r0) sin
and
r1 - r. Their equality allows us to solve for
:
The following table shows numeric values of h and
for a number of
inscribed radii (Note that if we varied r0 and r1 we would have a
much larger 'book' of values to show. For now, we'll just vary r.):
Inscribed
Corner
Radius (ft)
(deg)
h (ft)
150
90.00
0.00
151
73.90
14.14
152
67.38
20.00
153
62.47
24.49
154
58.41
28.28
155
54.90
31.62
160
41.81
44.72
165
32.58
54.77
170
25.38
63.25
175
19.47
70.71
180
14.48
77.46
185
10.16
83.67
190
6.38
89.44
195
3.02
94.87
200
0.00
100.00
There are a couple of interesting things to notice about these numbers.
First, they match up with the visually obvious values of h = 0,
= 90
and h = 100, = 0 when r = 150,
r = 200 respectively. This is a good check that we haven't
made a mistake. Secondly,
changes
very rapidly with corner radius, and this fact has major ramifications on
driving line. By driving a line just one foot larger than the minimum, one
is able to apex more than fifteen degrees later!
With these data, we're now equipped to compute all the times up to the apex
and beyond. First, let's compute the speed in the corner by assuming that our
car can corner at 1g = 32.1 ft / s2
= v2 / r,
giving us .
We express all speeds in miles per hour, but other lengths in
feet. We won't take the time and space to write out all the conversions
explicitly, but just remind ourselves once and for all that there are 22 feet
per second for every 15 miles per hour.
Now that we have the maximum cornering speed, we can compute how much braking
distance we need to get down to that speed from 100 mph. Let's assume that our
car can brake at 1g also. We know that braking causes us to lose a little
velocity for each little increment of time. Precisely, dv / dt = g.
However, we need to understand how the velocity changes with distance, not with
time. Recall that dx / dt = v,
dt = dx / v, so we get dx = vdv / g.
Those who remember differential and integral calculus will immediately see that
is
the required formula for braking distance. In any event, the braking distance
goes as the square of the speed, that is, like the kinetic energy, and that's
intuitive. However, there's a factor of two in the numerator that's easy to miss
(the origin of this factor is in the calculus, where we compute limit
expressions like ).
We next subtract the braking distance from the entry straight, and also
subtract h, to give us the distance in which we can go at 100 mph, top
speed, before the braking zone.
Now, we need the time spent braking, and that's easy:
. All the
other times are easy to compute, so here are the times for a variety of
cornering lines up to the apices (or apexes for those who aren't Latin
majors):
Inscribed Corner Radius (ft)
Cornering speed @1g in mph
Braking Distance (ft) @1g from 100 mph
Straight Distance (ft) prior to braking
Time (sec) in straight @100 mph prior to braking
Time (sec) in braking zone
Time (sec) in corner prior to apex
Total time (sec) up to the apex
150
47.24
261.11
388.89
2.652
2.418
6.802
11.872
152
47.55
260.11
369.89
2.522
2.404
5.987
10.912
154
47.86
259.11
362.60
2.472
2.390
5.682
10.544
155
48.02
258.61
359.77
2.453
2.382
5.566
10.401
160
48.79
256.11
349.17
2.381
2.347
5.144
9.872
170
50.29
251.11
335.64
2.288
2.278
4.641
9.208
180
51.75
246.11
326.43
2.226
2.212
4.325
8.762
190
53.16
241.11
319.45
2.178
2.147
4.099
8.424
200
54.55
236.11
313.89
2.140
2.083
3.927
8.150
At first glance, it appears that the widest line is a huge winner, but
we must realize that these times include only driving up to the apex, and that
is far earlier on the widest line, where = 0. Suppose we continued driving all
the way around the corner at constant speed and then accelerated out the exit
chute at 0.5g? This is the dummy line. We won't really drive this line
after the apex, but discuss it nonetheless to provide a reference time. It's
very easy to compute and provides a foundational intuition for the more advanced
exit computation to follow in the next instalment:
Inscribed Corner Radius
(ft)
Total time (sec) up to
the apex
Time (sec) in corner
after apex
Time for entrance and
complete corner
Exit speed from chute
(mph) @ g/2 accel
Time in exit chute (sec)
Combined segment time
Combined post-apex time
and exit-chute time
150
11.872
0.000
11.872
109.091
5.670
17.541
5.670
152
10.912
0.860
11.773
107.857
5.528
17.301
6.388
154
10.544
1.209
11.754
107.422
5.460
17.213
6.669
155
10.401
1.348
11.750
107.260
5.430
17.180
6.779
160
9.872
1.881
11.753
106.697
5.308
17.061
7.189
170
9.208
2.600
11.808
106.101
5.116
16.924
7.716
180
8.762
3.126
11.888
105.806
4.955
16.844
8.082
190
8.424
3.556
11.980
105.666
4.813
16.792
8.369
200
8.150
3.927
12.077
105.627
4.682
16.760
8.609
So, we see that, driving the dummy line, the widest line yields the slowest
time from the entrance up through the complete semicircle, but the quickest overall
time when the exit chute is included. The widest line has lower (better) times
than the tightest line in
the entry straight by about half a second, because h is large and
the entry straight is shorter for wider circles
in the braking zone by about three tenths because the cornering speed is
higher and less braking is needed
and in the exit chute by almost a second, again because is h large
and the exit chute is thereby shorter
The widest line has higher (worse) times by about a second in the circle
itself because the wider circle is also longer. When the balances are all added
up, the widest line is about eight tenths quicker than the tightest line, but
it's all because of the effects of the corner on the straights before and
after.
Recall once again that the dummy line is not a line we would actually drive
after the apex. But, with that as a framework, we're in position to introduce
the next improvement. Everything we do from here on improves just the post-apex
portion of the corner and the exit chute. We will actually drive the dummy line
up to the apex. So, from this point on, we need only look at the last column in
the table above, where we are shocked to see that there are almost three
seconds' spread from the slowest to the quickest way out. A good deal of this
ought to be available for improvement by accelerating and unwinding.
