LOTUS EUROPA S1/S2 WORKSHOP MANUAL

Structural Dimensions

Lotus Europa Central -- Tech Specifications -- S1/S2 Workshop Home -- Manuals Home -- Feedback
The following diagrams have been extracted from the Lotus Europa Workshop Manual and consolidated on this indexed page. Clicking on any diagram will take you to the section of the workshop manual from which it originates for your further research or information. Some of these diagrams have been 'cleaned up' for clarity of display, and while we have attempted to maintain both the content and context of the presentation, your existing hard copy should be consulted if there is any apparent variation in the on-screen image.
Sec Fig Description
A 2 General Dimensions of the Chassis Unit
C 14 Steering Arm
C 15 Vertical Link
C 16 Upper Wishbone Trailing Half
C 17 Lower Wishbone Half
C 18 Upper Wishbone Leading Half
D 12 Lower Link
D 13 Radius Arm
H 7 Steering Unit

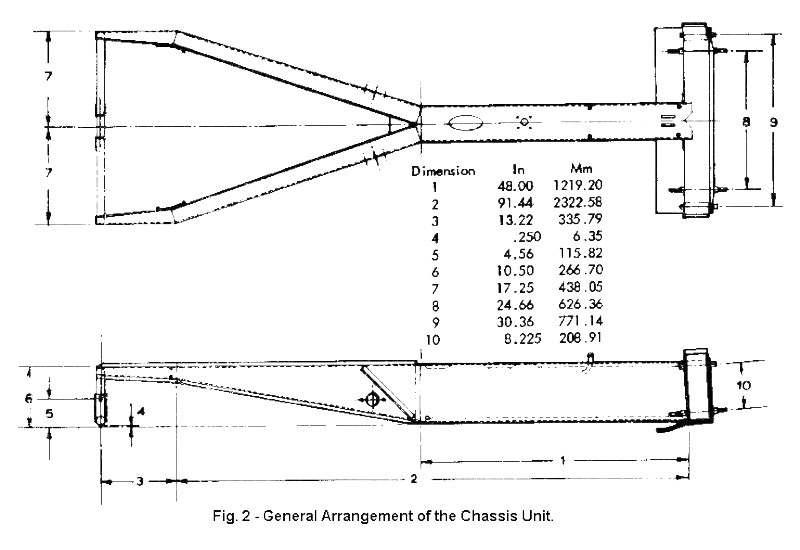

General Dimensions of the Chassis Unit

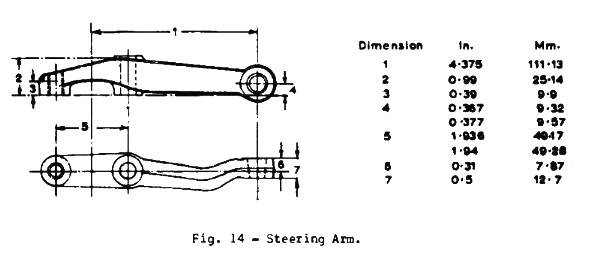

Steering Arm

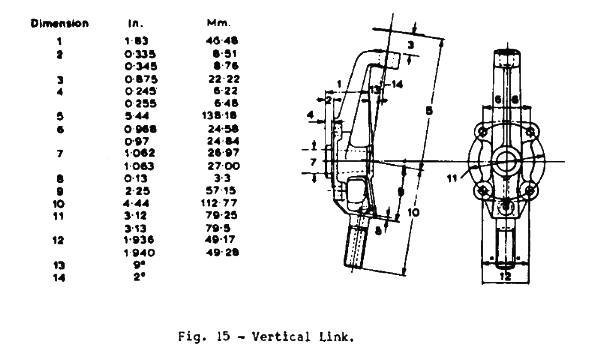

Vertical Link

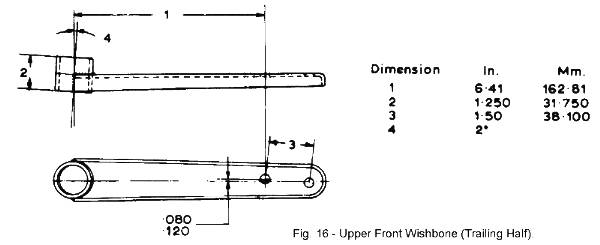

Upper Wishbone Trailing Half

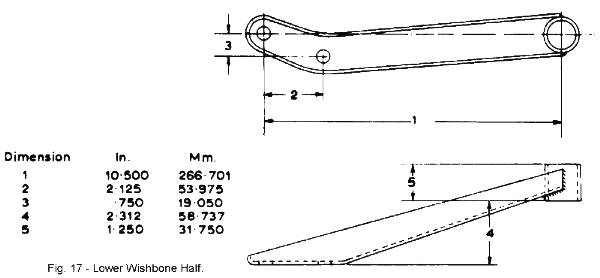

Lower Wishbone Half

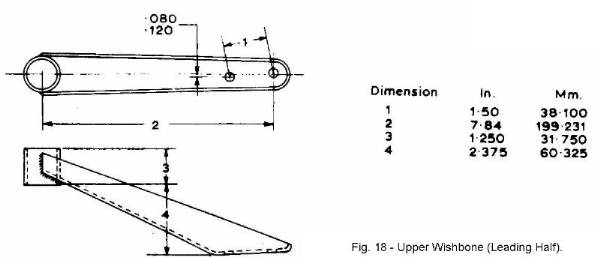

Upper Wishbone Leading Half

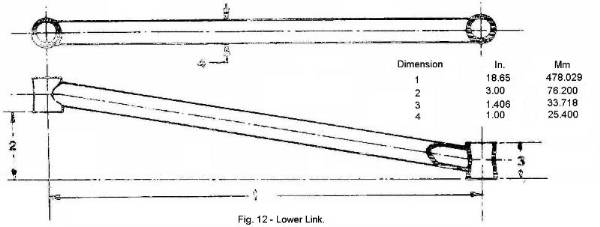

Lower Link

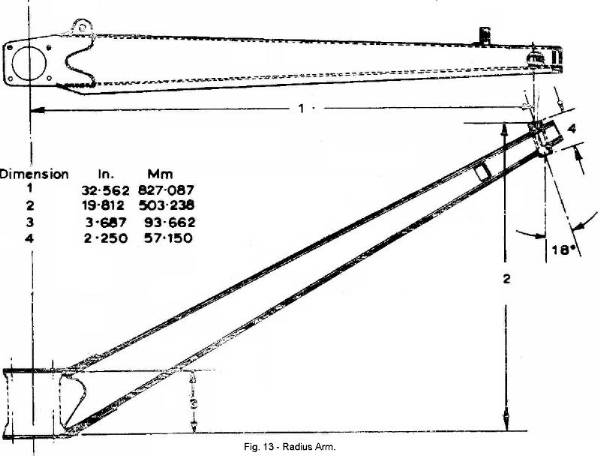

Radius Arm

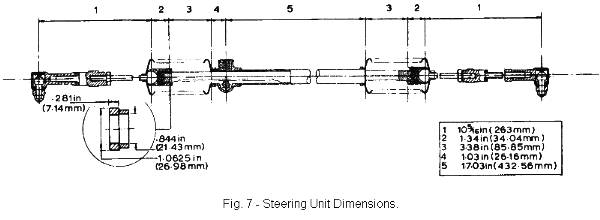

Steering Unit
