LOTUS EUROPA TC/TCS PARTS MANUAL

Section QA -- Clutch -- Disc and Pressure Plate

Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (120K)

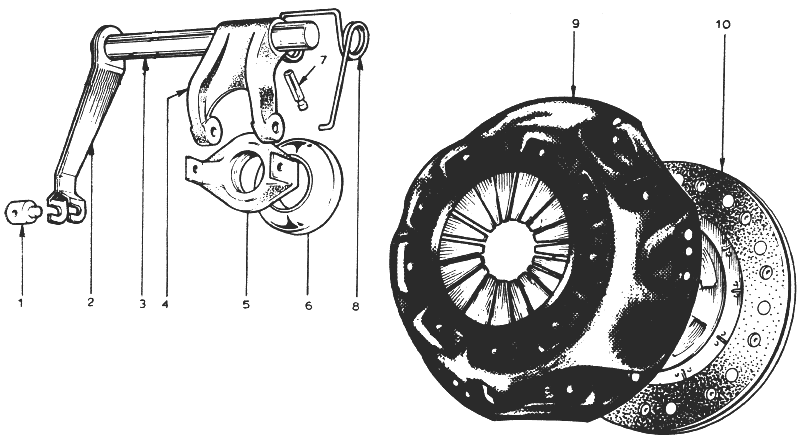

A046F6117Z - Abutment - Clutch Cable A074Q6008Z - Lever - Release A074Q6038Z - Cross Shaft A074Q6004Z - Fork - Clutch Release Bearing A074Q6041Z - Carrier - Clutch Release Bearing A074Q6011Z - Clutch Release Bearing A074Q6007Z - Pin - Fork to Cross Shaft A074Q6006Z - Spring - Clutch Return A074Q6009Z - Assembly - Cover A074Q6010Z - Plate - Friction


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
A046F6117Z      Abutment - Clutch Cable
A074Q6008Z      Lever - Release
A074Q6038Z      Cross Shaft
A074Q6004Z      Fork - Clutch Release Bearing
A074Q6041Z      Carrier - Clutch Release Bearing
A074Q6011Z      Clutch Release Bearing Ford 3014E7548-C (no longer available from Ford)
A074Q6007Z      Pin - Fork to Cross Shaft
A074Q6006Z      Spring - Clutch Return
A074Q6009Z      Assembly - Cover
10 A074Q6010Z      Plate - Friction
