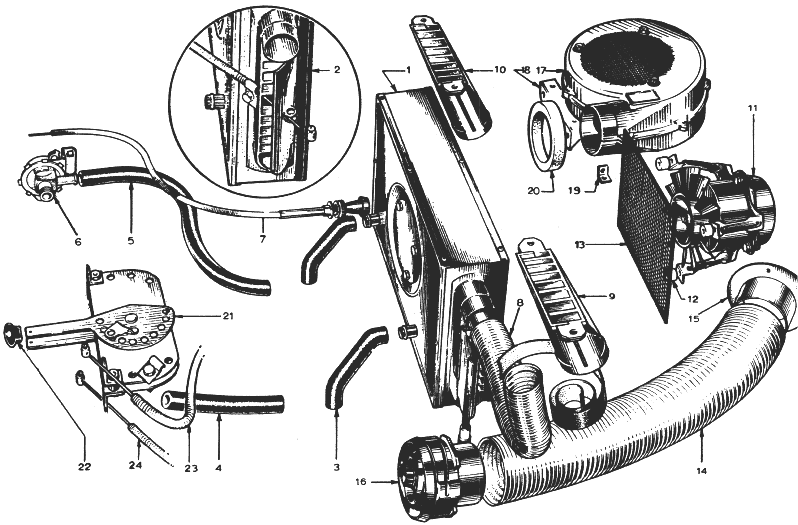

LOTUS EUROPA TC/TCS PARTS MANUALSection PA -- Heater -- Demisters and FansLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (175K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | A050P0706W | 1 | 1 | 1 | + | + | Unit - Heater | ||||||
| 2 | A074P6002Z | 1 | Unit - Heater | ||||||||||
| 3 | X050P0057V | 2 | 2 | 2 | 2 | Hose - Heater to Chassis Transfer Pipe | |||||||
| 4 | A046P6010V | Hose - Chassis Transfer Pipe to Main System (As Required) | |||||||||||
| 5 | A046P6010V | Hose - Control Valve to Chassis Transfer Pipe (As Required) | |||||||||||
| 6 | X036P6003Z | 1 | 1 | 1 | 1 | Heater Control Valve | - More Info - | ||||||
| 7 | C074P0075Z | 1 | 1 | 1 | 1 | Heater Cable | |||||||
| 8 | X036P0046Z | 2 | 2 | 2 | 2 | Hose - Heater to Demist L/H | |||||||
| 9 | X050P6047Z | 1 | 1 | 1 | 1 | Demist Nozzle L/H | |||||||
| 10 | X050P6048Z | 1 | 1 | 1 | 1 | Demist Nozzle R/H | |||||||
| 11 | X046P6195Z | 1 | 1 | + | + | Motor - Heater | |||||||
| 12 | W0050 | 3 | 3 | + | + | Spacer | |||||||
| 13 | Z054B1510Z | 1 | 1 | 1 | + | + | Grille | ||||||
| 14 | X046P6006Z | 2 | 2 | 2 | 2 | Hose - Face Level Vent | - More Info - | ||||||
| 15 | X054P0059Z | 2 | 2 | 2 | 2 | Connector - Inlet | |||||||
| 15 | 434 | 6 | 6 | 6 | 6 | Rivet - Connector Securing - Connector - Inlet | |||||||
| 16 | X046B6124Z | 2 | 2 | 2 | 2 | Face Level Vent | |||||||
| 17 | X046M6205Z | 1 | 1 | Motor - Heater | |||||||||
| 18 | A074B2110Z | 1 | 1 | Bracket | |||||||||
| 19 | A074B2111Z | 1 | 1 | Bracket | |||||||||
| 20 | X026B0373Z | 1 | 1 | Seal | |||||||||
| 21 | A050P0049Z | 1 | Control - Heater | ||||||||||
| 22 | A050P0050Z | 2 | Knob - Heater Control | ||||||||||
| 22 | 342 | 2 | Screw - Knob Securing | ||||||||||
| 23 | A074P0077Z | 1 | Heater Cable (long) | ||||||||||
| 24 | A074P0076Z | 1 | Heater Cable Control (short) |
