LOTUS EUROPA TC/TCS PARTS MANUALSection MH -- Electrical -- RadioLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (135K) |
Notes Bulletin Reference | |||||||||||||

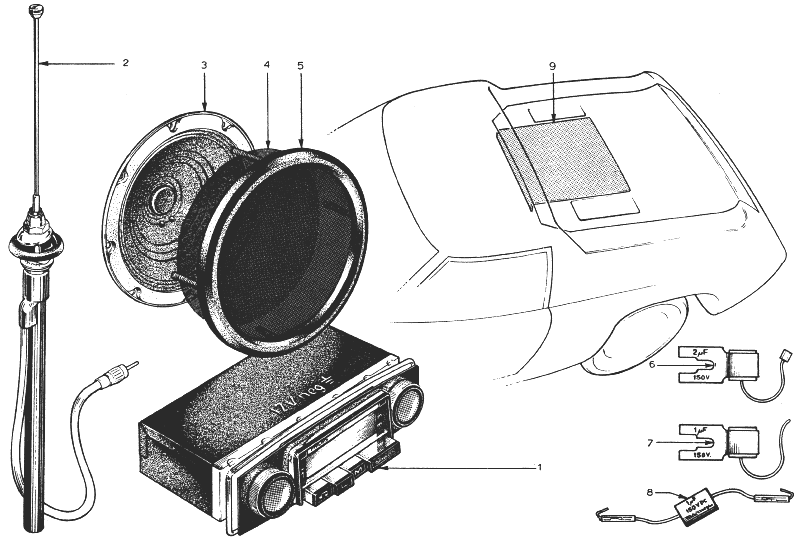

A074M6005W | 1 | 1 | + | + | Kit - Radio and Suppression - comprising | ||||||||
1 | A050M6197Z | 1 | 1 | + | + | Reciever - Radio | |||||||
1 | A036M6403Z | 1 | 1 | + | + | Bezel - Facia (outer) | |||||||
1 | A036M6404Z | 1 | 1 | + | + | Bezel - Facia (inner) | |||||||
1 | A036M6402Z | 2 | 2 | + | + | Bracket - Mounting | |||||||
2 | A036M6408Z | 1 | 1 | 1 | 1 | Aerial | |||||||
3 | A050M6193Z | 1 | 1 | 1 | 1 | Speaker (round) | |||||||
4 | A074M6011Z | 1 | 1 | 1 | 1 | Scrim (between Speaker and Grille) | |||||||
5 | A050M6194Z | 1 | 1 | 1 | 1 | Bezel and Grille | |||||||
6 | A074M6006Z | 1 | 1 | 1 | 1 | Capacitor - two microfarad (coil suppressor) | |||||||
7 | A074M6007Z | 3 | 3 | 3 | 3 | Capacitor - one microfarad (alternator & wiper motor suppression) | |||||||
8 | A074M6008Z | 2 | 2 | 2 | 2 | Capacitor - One microfarad (stop lamp switch and voltage stabaliser suppression) | |||||||
8 | A074M6010Z | 1 | 1 | 1 | 1 | Braid - (15 ins) Bonnet Bonding | |||||||
8 | A036M6400Z | 1 | 1 | 1 | 1 | Braid (12 ins) Coil Bonding | |||||||
8 | A050M6011Z | 2 | 2 | 2 | 2 | Braid (6 ins) Seat Bonding | |||||||
8 | A050M6223Z | 3 | 3 | 3 | 3 | Connector | |||||||
9 | A065M6008V | 1 | 1 | 1 | 1 | Foil - Screening (22 ins (52 cm) x (20 isn (51 cm)) | |||||||
9 | A036M6431Z | 1 | 1 | + | + | Fuse - Radio |
