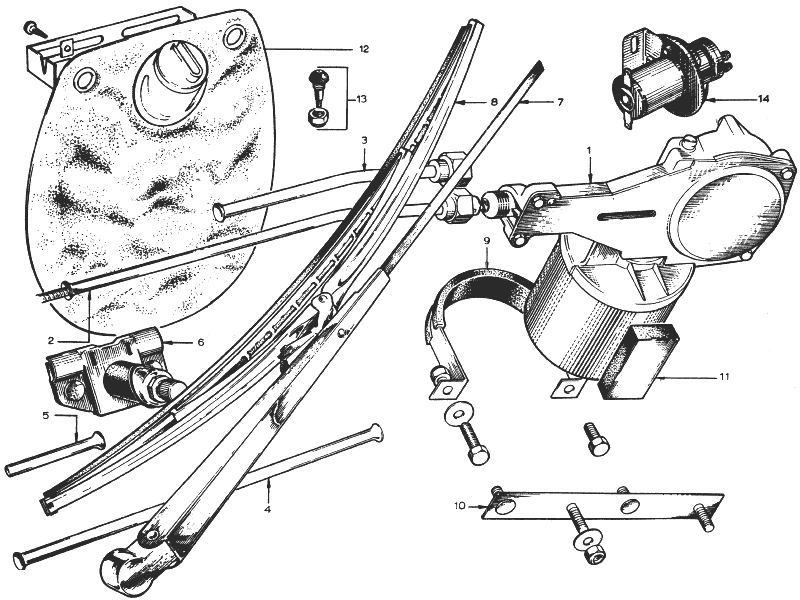

LOTUS EUROPA TC/TCS PARTS MANUALSection MG -- Electrical -- Windscreen WipersLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (155K) |
Notes Bulletin Reference | |||||||||||||
1 | X054M6041W | 1 | 1 | + | + | Motor - Windscreen Wiper | |||||||
1 | X054M6042W | 1 | 1 | Motor - Windscreen Wiper | |||||||||
2 | X054M0003Z | 1 | 1 | + | + | Bundy - Motor to Wheelbox | |||||||
3 | A054M0010Z | 1 | 1 | Bundy - Motor to Wheelbox | |||||||||
4 | A054M0011Z | 1 | 1 | Bundy - Wheelbox to Wheelbox | |||||||||
5 | X026M0012Z | 1 | 1 | 1 | 1 | Bundy - Over-run | |||||||
6 | X036M6151W | 1 | 1 | + | + | Assembly - Wheelbox | |||||||
6 | X054M6056W | 2 | 2 | Assembly - Wheelbox | |||||||||
7 | X046M6177Z | 1 | 1 | + | + | Wiper Arm | |||||||
7 | X054M6036Z | 2 | 2 | Arm - Wiper | |||||||||
8 | A054M6090Z | 1 | 1 | + | + | Blade - Wiper | |||||||
8 | X054M6037Z | 2 | 2 | Blade - Wiper | |||||||||
9 | X046M6151Z | 1 | 1 | 1 | 1 | Motor Mounting Clamp | |||||||
10 | X054M1677Z | 1 | 1 | Bracket - Motor Mounting | |||||||||
10 | 1 | 1 | 1 | + | + | Bolt - Clamp Securing - Bracket - Motor Mounting | |||||||
10 | 3C | 1 | 1 | + | + | Bolt - Clamp Securing - Bracket - Motor Mounting | |||||||
10 | 113 | 2 | 2 | + | + | Washer - Plain - Bracket - Motor Mounting | |||||||
10 | 208 | 2 | 2 | 2 | 2 | Nut - Bracket - Motor Mounting | |||||||
10 | 110 | 2 | 2 | 2 | 2 | Washer - Bulkhead to Bulkhead - Bracket - Motor Mounting | |||||||
10 | 208 | 2 | 2 | 2 | 2 | Nut - Bulkhead to Bulkhead Securing - Bracket - Motor Mounting | |||||||
11 | X046M6152Z | 1 | 1 | 1 | 1 | Mounting Pad | |||||||
12 | A036B6160Z | 1 | 1 | 1 | 1 | Bag - Washer | |||||||
12 | A036B6162Z | 1 | 1 | 1 | 1 | Bracket - Bag Mounting | |||||||
13 | A050M6198Z | 1 | 1 | + | + | Jet - Washer | |||||||
13 | A036M6427Z | 2 | 2 | Jet - Washer | |||||||||
13 | X050M6053Z | 1 | 1 | T Piece | |||||||||
14 | A036M6421Z | 1 | Pump - Washer | ||||||||||
14 | A036B6173Z | 1 | 1 | 1 | 1 | Tube - Bag to Pump | |||||||
14 | A054M6057Z | 1 | 1 | 1 | 1 | Tube - Pump to Jet |
