LOTUS EUROPA TC/TCS PARTS MANUALSection MF -- Electrical -- Side Markers and Interior LightsLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (120K) |
Notes Bulletin Reference | |||||||||||||

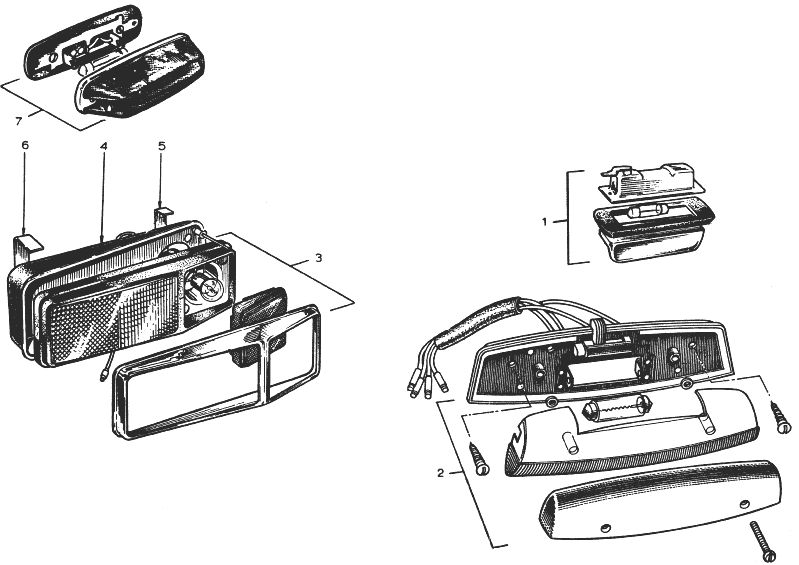

1 | X036M6253W | 1 | 1 | 1 | 1 | Number Plate Lamp | |||||||
1 | A050M6168Z | 1 | 1 | 1 | 1 | Bulb (239) -Number Plate Lamp | - More Info - | ||||||
1 | 315 | 2 | 2 | 2 | 2 | Screw - Securing -Number Plate Lamp | |||||||
1 | 422 | 2 | 2 | 2 | 2 | Nut - Number Plate Lamp | |||||||
2 | X036M6048W | 1 | 1 | 1 | 1 | Interior Lamp | |||||||
2 | X036M6317Z | 1 | 1 | 1 | 1 | Bulb (239) - Lamp - Interior | - More Info - | ||||||
2 | 316C | 2 | 2 | 2 | 2 | Screw - Securing - Lamp - Interior | |||||||
2 | 422 | 2 | 2 | 2 | 2 | Nut - Lamp - Interior | |||||||
3 | X036M6282W | 2 | 2 | Lamp - Side Marker (amber) | |||||||||
3 | X036M6281W | 2 | 2 | Lamp - Side Marker (red) | |||||||||
3 | A036M6330Z | 2 | 2 | Bulb (989) - Lamp - Side Marker | - More Info - | ||||||||
4 | X050M1852Z | 2 | 2 | Insert - Side Marker Lamp | |||||||||
5 | A050M1853Z | 2 | 2 | Bracket - Mounting (front) | |||||||||
6 | Z050B0854Z | 2 | 2 | Bracket - Mounting (rear) | |||||||||
6 | X054M0126Z | 2 | 2 | Lead - Earth | |||||||||
7 | X036M6001W | 2 | 2 | + | + | Lamp - Flasher Repeater | |||||||
7 | A036M6339Z | 2 | 2 | + | + | Bulb (254) - Lamp - Flasher Repeater | - More Info - |
