LOTUS EUROPA TC/TCS PARTS MANUAL

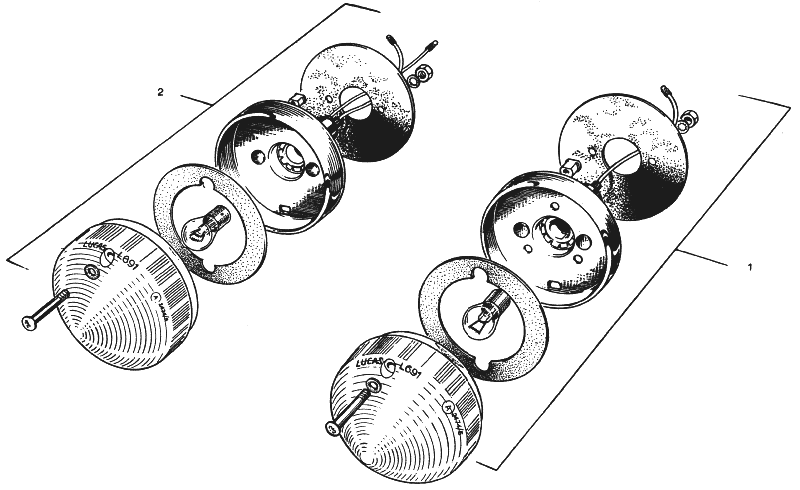

Section MC -- Electrical -- Parking Lamps

Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (105K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 X036M6252W    2  2  ++Lamp - Flasher (amber)
1 A036M6324Z    2  2  ++Lens (amber)
1 A036M6329Z    2  2  ++Bulb (382) - Single Filament  - More Info -
2 X036M6263W    2  2   +Lamp - Parking/Flasher (clear)
2 A036M6323Z    2  2   +Lens - Clear
2 A036M6331Z    2  2   +Bulb (380) - Double Filament  - More Info -
2 X036M6283W     2  2   Lamp - Parking/Flasher (amber)
2 A036M6372Z     2  2   Lens - Amber
2 A036M6331Z     2  2   Bulb (380) - Double Filament  - More Info -
