LOTUS EUROPA TC/TCS PARTS MANUALSection MB -- Electrical -- HeadlightsLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (145K) |
Notes Bulletin Reference | |||||||||||||

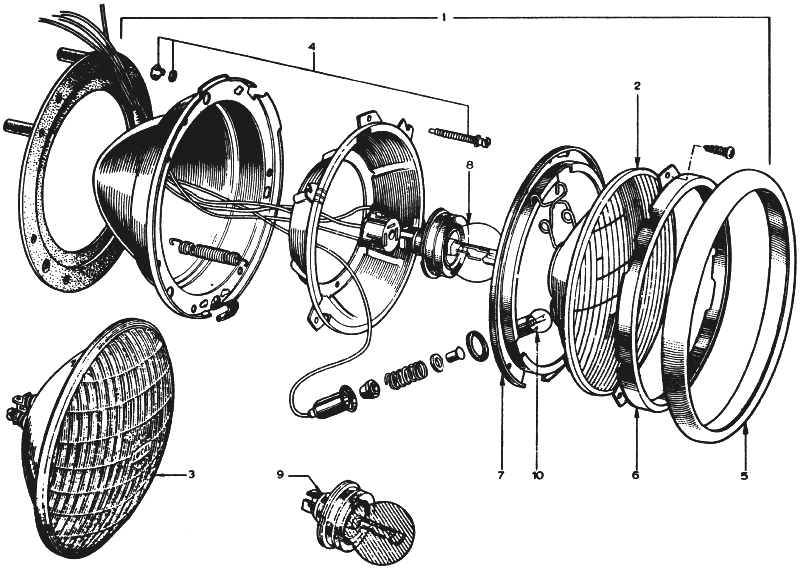

1 | A074M6002W | 2 | 2 | + | Assembly - Headlamps | ||||||||
1 | A054M6064W | 2 | + | Assembly - Headlamp (replaced by A074M6002W) | |||||||||
1 | X046M6197W | 2 | 2 | + | Assembly - Headlamp (clear bulb and pilot bulb) | ||||||||
1 | A054M6061W | 2 | 2 | + | Assembly - Headlamp (yellow bulb and pilot bulb) | ||||||||
1 | A036M6078W | 2 | 2 | + | Assembly - Headlamp (clear bulb only) | ||||||||
1 | A036M6302W | 2 | 2 | Assembly - Headlamp | |||||||||
2 | X046M6185Z | 2 | 2 | Unit - Lamp - Headlamp | |||||||||
3 | X036M6081Z | 2 | 2 | + | Unit - Lamp - Headlamp | ||||||||
3 | X036M6083Z | 2 | 2 | Unit - Lamp - Headlamp | |||||||||
4 | X046M6187Z | 4 | 4 | 4 | 4 | Screw - Trimmer - Headlamp Assembly | |||||||
5 | X036M6036Z | 2 | 2 | 2 | 2 | Headlamp Bezel | - More Info - | ||||||
6 | X046M6163Z | 2 | 2 | 2 | 2 | Headlamp Rim | |||||||
6 | X046M6162Z | 2 | 2 | 2 | 2 | Headlamp Assembly Gasket | |||||||
7 | X036M6044Z | 2 | 2 | 2 | 2 | Headlamp Assembly Gasket | |||||||
8 | X036M6360Z | 2 | 2 | + | Bulb (? #) - Clear - Headlamp Assembly | ||||||||
9 | A036M6361Z | 2 | 2 | + | Bulb (? #) - Yellow - Headlamp Assembly | ||||||||
10 | A036M6330Z | 2 | 2 | + | + | Bulb (989) - Pilot - Headlamp Assembly | - More Info - | ||||||
10 | RSTS1014 | 8 | 8 | 8 | 8 | Screw - Headlamp Mounting | |||||||
10 | X036B6004Z | 8 | 8 | 8 | 8 | Nut - Headlamp Mounting |
