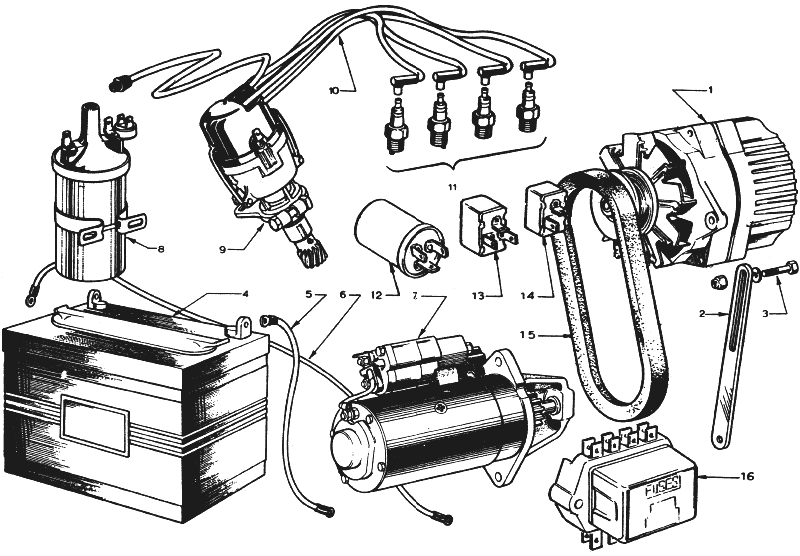

LOTUS EUROPA TC/TCS PARTS MANUALSection MA -- Electrical -- Major ComponentsLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (325K) |
Notes Bulletin Reference | |||||||||||||
A074M0188W | 1 | 1 | 1 | + | + | Loom - Main | |||||||
B074M0188W | 1 | Loom - Main | |||||||||||
A074M0189W | 1 | 1 | 1 | + | + | Loom - Facia/Window Lift | |||||||
B074M0224Z | 1 | Loom - Facia/Window Lift | |||||||||||
A074M0190W | 1 | 1 | 1 | + | + | Loom - Panel Lamp | |||||||
B074M0190W | 1 | Loom - Panel Lamp | |||||||||||
A054M0792W | 1 | Loom - Hazard Warning | |||||||||||
A074M0203W | 1 | 1 | + | Loom - Hazard Warning | |||||||||
X054M0785Z | 1 | 1 | 1 | + | Loom - Brake Fail | ||||||||
A074M0209Z | 1 | 1 | Seat Belt Warning | ||||||||||
A074M0222Z | 1 | 1 | Lead - Extension - Seat Belt Warning | ||||||||||
1 | A074E6000Z | 1 | 1 | 1 | 1 | Alternator | |||||||
2 | A074E0133Z | 1 | 1 | 1 | 1 | Arm - Adjusting | |||||||
3 | 9 | 1 | 1 | 1 | 1 | Bolt | |||||||
3 | 116 | 1 | 1 | 1 | 1 | Washer | |||||||
3 | 211 | 1 | 1 | 1 | 1 | Nut | |||||||
4 | X036M6002Z | 1 | 1 | 1 | 1 | Battery | |||||||
5 | A074M0919Z | 1 | 1 | 1 | 1 | Cable - Battery to Earth | |||||||
6 | X046M0046Z | 1 | 1 | 1 | 1 | Cable - Battery to Starter | |||||||
6 | XUCB0416Z | 2 | 2 | 2 | 2 | Bolt - Cables to Battery Terminals | |||||||
6 | 110 | 2 | 2 | 2 | 2 | Washer - Cables to Battery Terminals | |||||||
6 | 206 | 2 | 2 | 2 | 2 | Nut - Cables to Battery Terminals | |||||||
7 | A074E6010Z | 1 | 1 | 1 | 1 | Motor - Starter | |||||||
8 | X036M6298Z | 1 | 1 | 1 | 1 | Coil - Ignition | |||||||
9 | E026M0009W | 1 | 1 | + | + | Distributor | |||||||
9 | G026M0009W | 1 | 1 | Distributor comprising: | |||||||||
9 | X028M0073Z | 1 | 1 | 1 | 1 | Distributor Cap | |||||||
9 | X036M6057Z | 1 | 1 | 1 | 1 | Bush and Spring - Distributor | |||||||
9 | X028M0070Z | 1 | 1 | 1 | 1 | Rotor Arm - Distributor | |||||||
9 | A036M6362Z | 1 | 1 | 1 | 1 | Contact Breaker Set (Quick Fit) - Distributor (points) | |||||||
9 | X036M6060Z | 1 | 1 | 1 | 1 | Condensor - Distributor | |||||||
9 | A026M6091Z | 1 | 1 | 1 | 1 | Screw - Distributor to Block | |||||||
10 | A036E0816W | 1 | 1 | 1 | 1 | Harness Spark Plug Cable Set - Ignition | |||||||
10 | A074E0740Z | 1 | 1 | 1 | 1 | Harness Spark Plug Cable Set - Ignition (Replaced by A036E0816W) | |||||||
11 | A036M6412Z | 4 | 4 | 4 | 4 | Spark Plug | - More Info - | ||||||
12 | X036M6270Z | 1 | 1 | + | Unit - Hazard Flasher | ||||||||
13 | A036M6334Z | 1 | Unit - Hazard Flasher | ||||||||||
13 | A007M4124Z | 1 | Unit - Hazard Flasher | ||||||||||
14 | X036M6300Z | 1 | 1 | 1 | 1 | Unit - Indicator Flasher | |||||||
14 | X036M6301Z | 1 | 1 | 1 | 1 | Clip - Securing - Unit - Indicator Flasher | |||||||
15 | A074E6008Z | 1 | 1 | 1 | 1 | Drive Belt - Alternator | - More Info - | ||||||
16 | A074M6001W | 1 | 1 | 1 | 1 | Fuse Box | - More Info - | ||||||
16 | X026M0039Z | 1 | 1 | 1 | 1 | Lead - Earth - Engine to Chassis | |||||||
16 | X036B1079Z | 1 | 1 | 1 | 1 | Horn - High Note | |||||||
16 | X036B1080Z | 1 | 1 | 1 | 1 | Horn - Low Note | |||||||
16 | X026B0403Z | 2 | 2 | 2 | 2 | Spacer - horn to Body | |||||||
16 | X050M6056Z | 1 | 1 | 1 | 1 | Set - Air Horn (Optional) | |||||||
16 | X0501526Z | 1 | 1 | 1 | 1 | Bracket - Air Horn Mounting |
