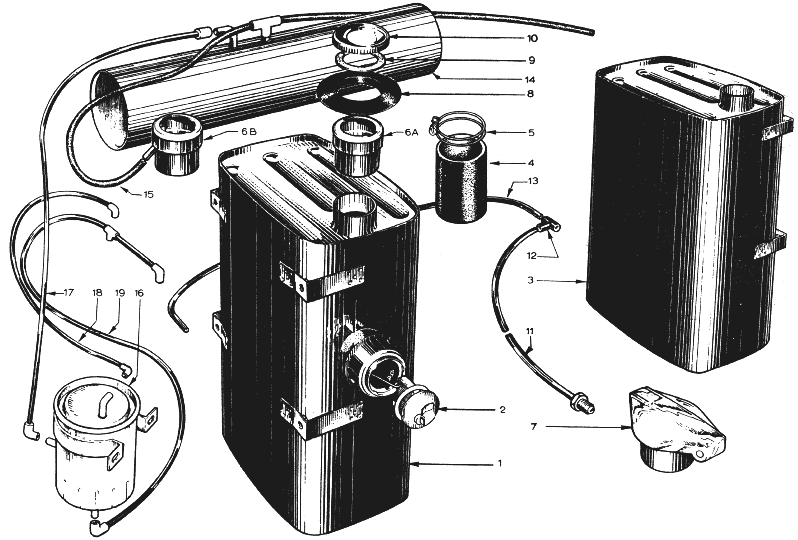

LOTUS EUROPA TC/TCS PARTS MANUALSection LA -- Fuel System -- Fuel Tanks and HosesLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (160K) |
Notes Bulletin Reference | |||||||||||||
1 | D074L0014W | 1 | 1 | 1 | 1 | L/H Fuel Tank - c/w Contents Transmitter | |||||||
2 | A074L6000Z | 1 | 1 | 1 | 1 | Fuel Content Transmitter | |||||||
2 | X050L6001Z | 1 | 1 | 1 | 1 | Contents Transmitter Gasket | |||||||
3 | D074L0015W | 1 | 1 | 1 | 1 | R/H Fuel Tank | |||||||
4 | A046L0003Z | 2 | 2 | 2 | 2 | Hose - Filler Neck to Tank | |||||||
5 | X054K6000Z | 4 | 4 | 4 | 4 | Hose Clip - Hose Clamp | |||||||
6A | A074L0719W | 2 | + | + | Assembly - Filler Neck | ||||||||
6B | A074L0705Z | 2 | Assembly - Filler Neck | ||||||||||
7 | A074L0721Z | 2 | + | + | Assembly - Filler Neck. C/w Flip Top Fuel Filler Cap | ||||||||
7 | A074L0720Z | 2 | Assembly - Filler Neck. C/w Flip Top Fuel Filler Cap | ||||||||||
8 | X046L6001Z | 2 | 2 | 2 | 2 | Gromet - Filler Nect | |||||||
9 | X046L6005Z | 2 | 2 | + | + | Seal - Filler Cap | |||||||
10 | X046L6002Z | 2 | 2 | + | + | Fuel Filler Cap | - More Info - | ||||||
11 | A074L0087Z | 1 | 1 | + | + | Pipe - T Piece to Fuel Pump | |||||||
12 | X026S0132Z | 1 | 1 | + | + | T Piece | |||||||
13 | A074L0086Z | 1 | 1 | + | + | Pipe - Tank to T Piece | |||||||
13 | X036B6010Z | 2 | 2 | + | + | Gromet - Tank Pipe | |||||||
14 | A074L0717W | 1 | 1 | Assembly - Catch tank | |||||||||
14 | X036L6017Z | 1 | 1 | T Piece | |||||||||
15 | A074L0089Z | 1 | 1 | Pipe - L/H Fuel Tank to Catch Tank | |||||||||
15 | A074L0090Z | 1 | 1 | Pipe - R/H Fuel Tank to Catch Tank | |||||||||
16 | A036L0046Z | 1 | 1 | Cannister - Charcoal | |||||||||
17 | A074L0091Z | 1 | 1 | Pipe - Cannister to Catch Tank | |||||||||
17 | X036J0735Z | 1 | 1 | Connector - Elbow | |||||||||
18 | A074L0092Z | 1 | 1 | Pipe - Cannister to Air Box | |||||||||
18 | X036J0735Z | 1 | 1 | Connector - Elbow | |||||||||
19 | A074L0088Z | 1 | 1 | Pipe - Cannister to Carburetters |
