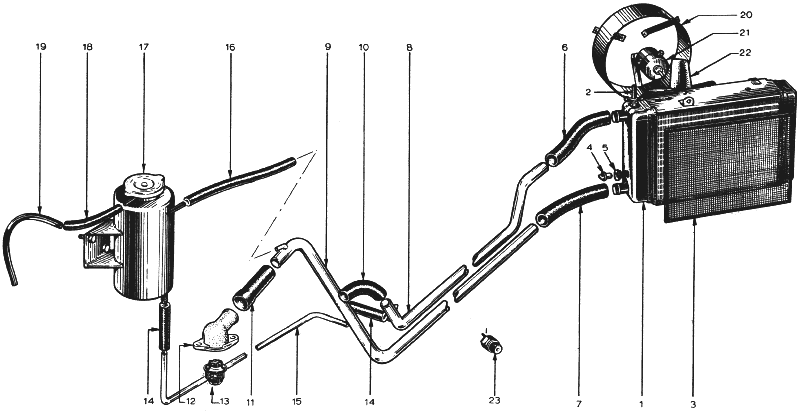

LOTUS EUROPA TC/TCS PARTS MANUALSection KA -- Cooling SystemLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (110K) |
Notes Bulletin Reference | |||||||||||||
1 | D074K0088Z | 1 | 1 | 1 | 1 | Radiator | - More Info - | ||||||
1 | 4 | 1 | 1 | 1 | 1 | Screw Top Securing - Radiator | |||||||
1 | 113 | 1 | 1 | 1 | 1 | Washer - Radiator | |||||||
1 | 208 | 1 | 1 | 1 | 1 | Nut - Radiator | |||||||
1 | 208 | 2 | 2 | 2 | 2 | Nut - Bottom Securing - Radiator | |||||||
1 | 113 | 2 | 2 | 2 | 2 | Washer - Radiator | |||||||
2 | A054K6001Z | 1 | 1 | 1 | 1 | Bleed Valve | |||||||
3 | X046K0001A | 1 | 1 | 1 | 1 | Radiator Screen | |||||||
4 | A036K6026Z | 1 | 1 | 1 | 1 | Switch - Thermal | |||||||
5 | A036K6027Z | 1 | 1 | 1 | 1 | Gromet - Switch | |||||||
6 | X046K0030Z | 1 | 1 | 1 | 1 | Radiator Hose - Radiator (Top) | |||||||
7 | A074K0087Z | 1 | 1 | 1 | 1 | Radiator Hose - Radiator (Bottom) | |||||||
8 | B074K0095Z | 1 | 1 | 1 | 1 | Pipe - Transfer - Radiator to Pump | |||||||
9 | B074K0098Z | 1 | 1 | 1 | 1 | Pipe - Transfer - Radiator to Thermostat | |||||||
10 | A074K0093Z | 1 | 1 | 1 | 1 | Radiator Hose - Transfer Pipe to Pump | |||||||
11 | A074K0089Z | 1 | 1 | 1 | 1 | Radiator Hose - Transfer Pipe to Thermostat | |||||||
12 | A036E6101Z | 1 | 1 | 1 | 1 | Thermostat Housing | |||||||
12 | A036E6102Z | 1 | 1 | 1 | 1 | Thermostat Housing Gasket | |||||||
13 | A036E6023Z | 1 | 1 | 1 | 1 | Thermostat - 78º C | - More Info - | ||||||
14 | A074K0092Z | 2 | 2 | 2 | 2 | Water Feed Pipe Connecting Hose | |||||||
15 | A074K0097Z | 1 | 1 | 1 | 1 | Water Feed Pipe | |||||||
16 | A074K0094Z | 1 | 1 | 1 | 1 | Bleed Hose | |||||||
17 | C074K0091Z | 1 | 1 | 1 | 1 | Swirl Pot (Header Tank) | - More Info - | ||||||
18 | A036L0085V | Swirl Pot (Header Tank) to Overflow Pipe Hose (As Required) | |||||||||||
19 | A074K0066Z | 1 | 1 | 1 | 1 | Overflow Pipe | |||||||
20 | A074K0086Z | 1 | 1 | 1 | 1 | Cowl Radiator Fan c/w Mounting | |||||||
21 | A036K0080Z | 1 | 1 | 1 | 1 | Radiator Fan Motor | |||||||
22 | A074K6000Z | 1 | 1 | 1 | 1 | Radiator Fan | |||||||
23 | A060M6136Z | 1 | 1 | 1 | 1 | Water Temperature Transmitter |
