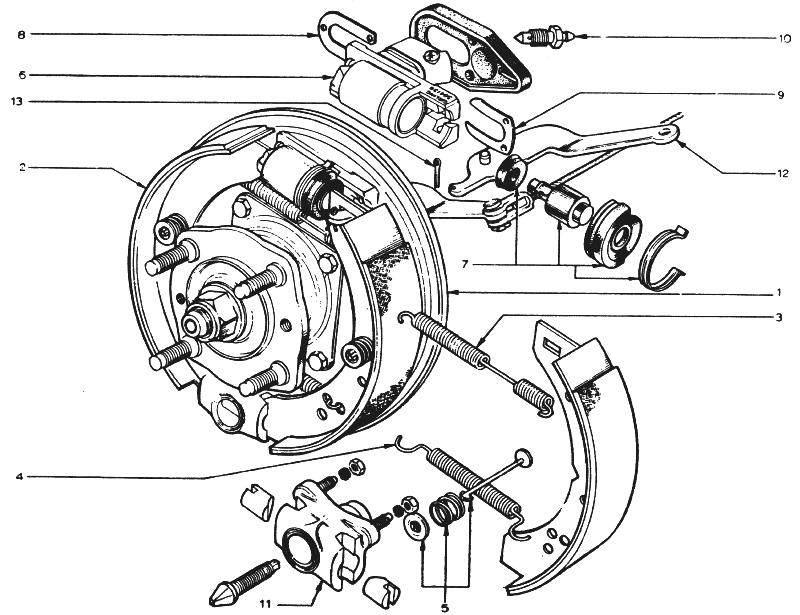

LOTUS EUROPA TC/TCS PARTS MANUALSection JD -- Brakes -- Rear Drums and ShoesLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (135K) |
Notes Bulletin Reference | |||||||||||||
1 | A046J6021W | 1 | 1 | 1 | 1 | + | + | Rear Brake Assembly L/H | |||||
1 | A046J6022W | 1 | 1 | 1 | 1 | + | + | Rear Brake Assembly R/H | |||||
1 | X046J6000Z | 1 | 1 | 1 | 1 | + | + | Backplate L/H | |||||
1 | X046J6001Z | 1 | 1 | 1 | 1 | + | + | Backplate R/H | |||||
2 | X046J6002Z | 4 | 4 | 4 | 4 | + | + | Brake Shoe | - More Info - | ||||
3 | X046J6003Z | 2 | 2 | 2 | 2 | + | + | Spring - Upper Return | |||||
4 | X046J6004Z | 2 | 2 | 2 | 2 | + | + | Spring - Lower Return | This number also used for "Screw - Bleed" | ||||
5 | X046J6046Z | 4 | 4 | 4 | 4 | + | + | Assembly - Steady rest | |||||
6 | X046J6005Z | 2 | 2 | 2 | 2 | + | + | Wheel Cylinder (Brake Cylinder) Assembly | - More Info - | ||||
7 | X046J6006Z | + | + | Kit - Cylinder Servicing (As Required) | |||||||||
8 | X046J6009Z | 2 | 2 | 2 | 2 | + | + | Plate - Reatining | |||||
9 | X046J6010Z | 2 | 2 | 2 | 2 | + | + | Plate - Locking | |||||
10 | X046J6004Z? | 2 | 2 | + | + | Screw - Bleed | This number also used for "Spring - Lower Return" | ||||||
11 | X046J6011Z | 2 | 2 | + | + | Assembly - Brake Shoe Adjuster | |||||||
12 | X046J6007Z | 2 | 2 | + | + | Lever - Handbrake | |||||||
12 | W0086 | 2 | 2 | + | + | Split Pin | |||||||
12 | A074J6037W | 1 | 1 | + | + | Assembly - Rear Brake - L/H | |||||||
12 | A074J6038W | 1 | 1 | + | + | Assembly - Rear Brake - R/H Comprising: | |||||||
1 | A074J6043Z | 1 | 1 | + | + | Backplate - L/H | |||||||
1 | A074J6044Z | 1 | 1 | + | + | Backplate - R/H | |||||||
2 | A074J6044A | 4 | 4 | Shoe - Brake | |||||||||
6 | A074J6046W | 2 | 2 | Assembly - Wheel Cylinder | - More Info - | ||||||||
6 | A074J6047Z | Kit - Cylinder Servicing (As Required) | |||||||||||
11 | A074J6049W | 1 | 1 | Unit - Adjuster - L/H | |||||||||
11 | A074J6048W | 1 | 1 | Unit - Adjuster - R/H | |||||||||
11 | 13 | 8 | 8 | 8 | 8 | Screw - Brake Assembly to Radius Arm | |||||||
11 | 116 | 8 | 8 | 8 | 8 | Washer |
