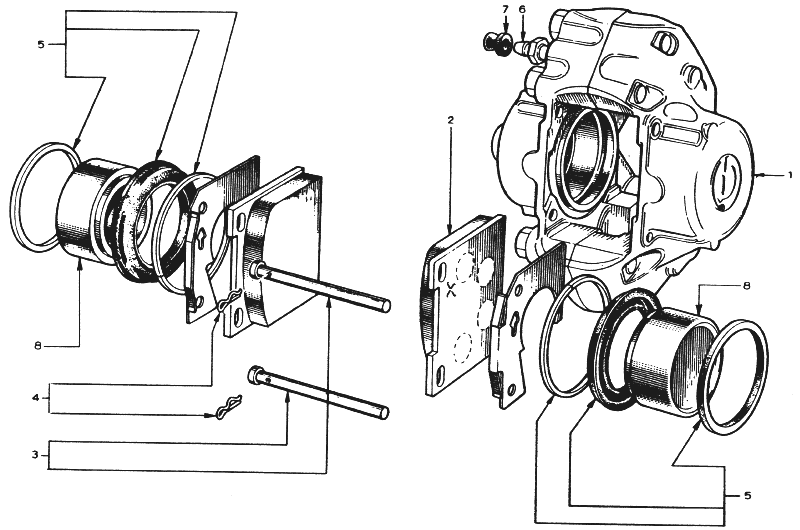

LOTUS EUROPA TC/TCS PARTS MANUALSection JC -- Brakes -- Front Calipers and PadsLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (120K) |
Notes Bulletin Reference | |||||||||||||
1 | A036J6105Z | 1 | 1 | 1 | 1 | Brake Caliper - L/H (Less Pads) | - More Info - | ||||||
1 | A036J6106Z | 1 | 1 | 1 | 1 | Brake Caliper - R/H (Less Pads) | - More Info - | ||||||
2 | A074J0188Z | 1 | 1 | 1 | 1 | Brake Pad Set | - More Info - | ||||||
3 | X036J6011Z | 4 | 4 | 4 | 4 | Pin - Pad retaining | |||||||
4 | X036J6012Z | 4 | 4 | 4 | 4 | Clip - Pin Retaining | |||||||
5 | X036J6003Z | Kit - Caliper Repair (As Required) | |||||||||||
6 | X036J6004Z | 2 | 2 | 2 | 2 | Screw - Bleed | |||||||
7 | X036J6005Z | 2 | 2 | 2 | 2 | Cover - Bleed Screw | |||||||
8 | X036J6000Z | 4 | 4 | 4 | 4 | Piston |
