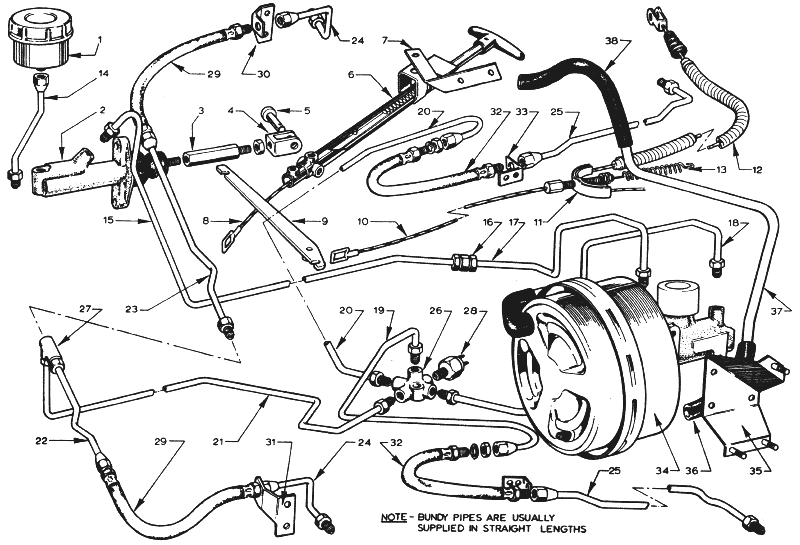

LOTUS EUROPA TC/TCS PARTS MANUALSection JA -- Brakes -- Handbrake and Single SystemLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (330K) |
Notes Bulletin Reference | |||||||||||||
1 | X046J6019W | 1 | 1 | + | + | Reservoir | |||||||
1 | X046J6041Z | 1 | 1 | + | + | Cap - Reservoir | |||||||
1 | X046J0048Z | 1 | 1 | + | + | Bracket - mounting | |||||||
2 | X046J6018W | 1 | 1 | + | + | Cylinder - Master | |||||||
2 | X046J6015Z | 1 | 1 | + | + | Kit - Master Cylinder Servicing | |||||||
3 | A074J0193Z | 1 | 1 | + | + | Adaptor - Push Rod | |||||||
4 | X046J0076Z | 1 | 1 | + | + | Clevis - Push Rod | |||||||
5 | W0084 | 1 | 1 | + | + | Pin - Clevis | |||||||
5 | W0086 | 1 | 1 | + | + | Pin Split - Pin Clevis | |||||||
6 | C036J0752W | 1 | 1 | + | Assembly - Handbrake R/H | ||||||||
6 | C036J0751W | 1 | 1 | 1 | 1 | + | Assembly - Handbrake L/H | ||||||
6 | 7 | 1 | 1 | 1 | 1 | Screw - Handbrake to Bracket | |||||||
6 | 211 | 1 | 1 | 1 | 1 | Nut - Handbrake to Bracket | |||||||
7 | X054J0104Z | 1 | 1 | + | Bracket - Handbrake R/H | ||||||||
7 | X054J0103Z | 1 | 1 | + | Bracket - Handbrake L/H | ||||||||
7 | 7 | 2 | 2 | 2 | 2 | Screw - Bracket - Securing | |||||||
7 | 118 | 2 | 2 | 2 | 2 | Washer - Bracket - Securing | |||||||
7 | 211 | 2 | 2 | 2 | 2 | Nut - Bracket - Securing | |||||||
7 | A074M6016Z | 1 | 1 | Microswitch - Handbrake | |||||||||
8 | A074J0747Z | 1 | 1 | 1 | 1 | Cable - Handbrake to Multiplying Lever | |||||||
9 | A074J0750Z | 1 | 1 | + | Lever - Multiplying - R/H | ||||||||
9 | A074J0749Z | 1 | 1 | 1 | 1 | + | Lever - Multiplying - L/H | ||||||
9 | A074J0748Z | 1 | 1 | 1 | 1 | Bolt - Pivot - Lever - Multiplying | |||||||
9 | W0078 | 1 | 1 | 1 | 1 | Washer - Lever - Multiplying | |||||||
10 | B074J0194Z | 1 | 1 | 1 | 1 | Cable - Handbrake - Intermediate | |||||||
11 | X046J6028Z | 1 | 1 | 1 | 1 | Compensator | |||||||
12 | X046J0069Z | 1 | 1 | 1 | 1 | Cable - Handbrake - Rear | |||||||
13 | X046J0016Z | 1 | 1 | 1 | 1 | Spring - Handbrake - Cable Return | |||||||
14 | X046G6032Z | 1 | 1 | + | + | Pipe - Bundy - Reservoir to Master Cylinder | |||||||
15 | X050J6052Z | 1 | 1 | + | + | Pipe - Bundy - Master Cylinder to Two Way Union | |||||||
16 | A050J6085Z | 1 | 1 | + | + | Union - two Way | |||||||
17 | A074J6010Z | 1 | 1 | + | + | Pipe - Bundy - Two Way Union to Servo Unit | |||||||
18 | X026J6019Z | 1 | 1 | + | + | Pipe - Bundy - Servo Unit to Five Way Union | |||||||
19 | X046J6045Z | 1 | 1 | + | + | Pipe - Bundy - Five Way Union to L/H rear Hose | |||||||
20 | Z036J6093Z | 1 | 1 | + | + | Pipe - Bundy - Five Way Union to R/H Rear Hose | |||||||
21 | A054J6006Z | 1 | 1 | + | + | Pipe - Bundy - Five Way Union to three Way Union | |||||||
22 | A036J6089Z | 1 | 1 | + | + | Pipe - Bundy - Three Way Union to L/H Front Hose | |||||||
23 | A074J6007Z | 1 | 1 | + | + | Pipe - Bundy - Three Way Union to R/H front Hose | |||||||
24 | X046J6044Z | 2 | 2 | + | + | Pipe - Bundy - Hose to Caliper | |||||||
25 | A074J6032Z | 2 | 2 | + | + | Pipe - Bundy - Hose to Rear Brake | |||||||
26 | X036J6015Z | 1 | 1 | + | + | Union - Five Way | |||||||
26 | A050B1938Z | 1 | 1 | + | + | Spacer - Five Way Union to Chassis | |||||||
27 | X036J6016Z | 1 | 1 | + | + | Union - Three Way | |||||||
28 | X046J6025Z | 1 | 1 | + | + | Stop Lamp Switch | - More Info - | ||||||
28 | X036J6059 | 1 | 1 | + | + | Seal - Stop Lamp Switch | |||||||
29 | X046J6016Z | 2 | 2 | + | + | Hose - Flexible - Front | |||||||
29 | 216 | 2 | 2 | + | + | Nut - Securing - Hose - Flexible - Front | |||||||
30 | X046J2001Z | 1 | 1 | + | + | Bracket - Hose Securing - R/H | |||||||
31 | X046J2000Z | 1 | 1 | + | + | Bracket - Hose Securing - L/H | |||||||
32 | X046J6020Z | 2 | 2 | + | + | Hose - Flexible - Rear | |||||||
32 | 216 | 2 | 2 | + | + | Nut - Securing - Hose - Flexible - Rear | |||||||
33 | X046J2002Z | 2 | 2 | + | + | Bracket - Hose Securing | |||||||
34 | X054J6023W | 1 | 1 | + | + | Unit - Brake Servo | |||||||
35 | D036J0162Z | 1 | 1 | + | + | Bracket - Servo Unit Mounting | |||||||
35 | C036J0089Z | 1 | 1 | + | + | Plate - Backing | |||||||
36 | A074J6005Z | 1 | 1 | + | + | Hose - Vacuum | |||||||
36 | A074J6019Z | 1 | 1 | + | + | Hose - Vacuum | |||||||
37 | A074J6009Z | 1 | 1 | + | + | Pipe - Bundy - Vacuum | |||||||
38 | X050J6078Z | 1 | 1 | + | + | Hose - Vacuum |
