LOTUS EUROPA TC/TCS PARTS MANUALSection HA -- SteeringLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (325K) Note: For more detail, refer to Section H of the S1 Parts Manual. |
Notes Bulletin Reference | |||||||||||||

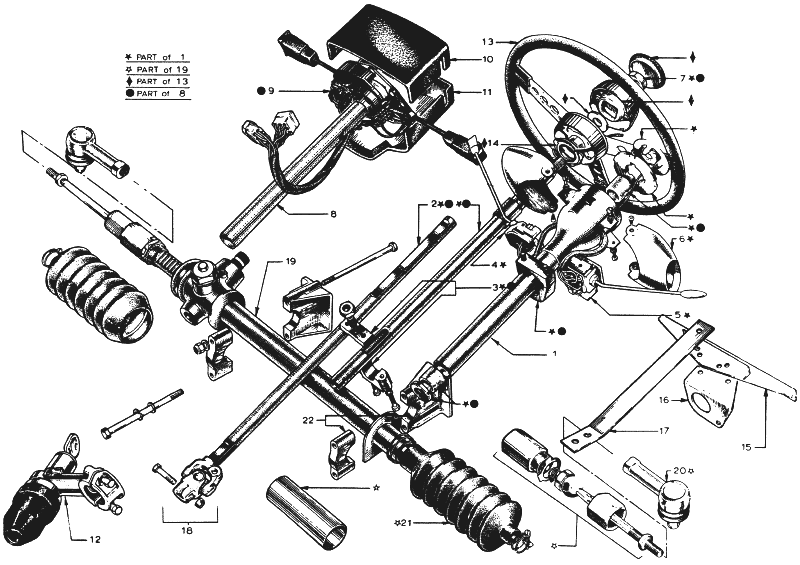

1 | X054H0730W | 1 | 1 | + | Assembly - Column | ||||||||
1 | X054H0731W | 1 | 1 | 1 | + | Assembly - Column - Comprising: | |||||||
2 | X046H6003Z | 1 | 1 | 1 | 1 | Column - Lower Inner - Assembly - Column | |||||||
3 | X036H6038Z | 1 | 1 | 1 | 1 | Clamp - Impact | |||||||
4 | X036H6078Z | 1 | 1 | 1 | + | + | Switch - Indicators | ||||||
5 | X046M6183Z | 1 | 1 | 1 | + | + | Switch - Dip and Flasher - Replaced by | ||||||
5 | A036H6075Z | 1 | 1 | + | Switch - Dip and Flasher | ||||||||
5 | A036H6076Z | 1 | 1 | 1 | + | Switch - Dip and Flasher | |||||||
6 | X036H6033Z | 2 | 2 | 2 | + | + | Escutcheon | ||||||
6 | X036H6066Z | 1 | 1 | 1 | + | Transfer - Lamp | |||||||
6 | X036H6067Z | 1 | 1 | + | Transfer - Lamp | ||||||||
6 | X036H6068Z | 1 | 1 | 1 | + | Transfer - Indicators | |||||||
6 | X036H6069Z | 1 | 1 | + | Transfer - Indicators | ||||||||
6 | A036H6077Z | 2 | 2 | 2 | + | + | Screw - Excutcheon | ||||||
7 | X036H6035Z | 1 | 1 | 1 | 1 | Nut - Steering Wheel Securing | |||||||
8 | A074H0731W | 1 | Assembly - Column - Comprising: | ||||||||||
2 | X046H6003Z | 1 | Column - Lower Inner - Assembly - Column | ||||||||||
3 | X036H6038Z | 1 | Clamp - Impact | ||||||||||
7 | X036H6035Z | 1 | Nut - Steering Wheel Securing | ||||||||||
9 | 074M6019W | 1 | Assembly - Steering Column Switch | ||||||||||
10 | A074B0935Z | 1 | Excutcheon - Upper | ||||||||||
11 | A074B0937Z | 1 | Escutcheon - Lower | ||||||||||
12 | A036H6065Z | 1 | 1 | + | + | Lock - Steering Column | |||||||
12 | A036H6064Z | 1 | 1 | Lock - Steering Column | |||||||||
13 | A036H6006Z | 1 | 1 | 1 | + | + | Wheel - Steering | ||||||
13 | A036H6007Z | 1 | Wheel - Steering | ||||||||||
14 | X036H6034Z | 1 | 1 | 1 | 1 | Slip Ring - Steering Wheel | |||||||
15 | A054H0031Z | 1 | 1 | 1 | 1 | Bracket - Support | |||||||
15 | 303C | 2 | 2 | 2 | 2 | Screw - Securing - Bracket - Support | |||||||
15 | 102 | 2 | 2 | 2 | 2 | Washer - Bracket - Support | |||||||
16 | A054H0067Z | 1 | 1 | 1 | 1 | + | Bracket - Anti-rotation | ||||||
16 | A054H0066Z | 1 | 1 | + | Bracket - Anti-rotation | ||||||||
17 | A074H0094Z | 1 | 1 | + | Bracket - Impact | ||||||||
18 | A073H0095Z | 1 | 1 | + | Bracket - Impact | ||||||||
18 | A074H6000Z | 1 | 1 | 1 | 1 | + | Universal joint | ||||||
19 | B074H0703W | 1 | 1 | 1 | 1 | Assembly - Steering Rack and Pinion | - More Info - | ||||||
19 | B074H0704W | 1 | 1 | + | Assembly - Steering Rack and Pinion | - More Info - | |||||||
20 | A074H0088Z | 2 | 2 | 2 | 2 | Ball Joint - Track Rod (Tie Rod End) | - More Info - | ||||||
21 | X036H6027Z | 2 | 2 | 2 | 2 | Bellows - Steering Rack | - More Info - | ||||||
22 | X046H0015Y | 2 | 2 | 2 | 2 | Bracket - Rack and Pinion Mounting | |||||||
22 | 6C | 4 | 4 | 4 | 4 | Bolt - Bracket - Rack and Pinion Mounting | |||||||
22 | 110 | 4 | 4 | 4 | 4 | Washer - Bracket - Rack and Pinion Mounting | |||||||
22 | 208 | 4 | 4 | 4 | 4 | Nut - Bracket - Rack and Pinion Mounting |
