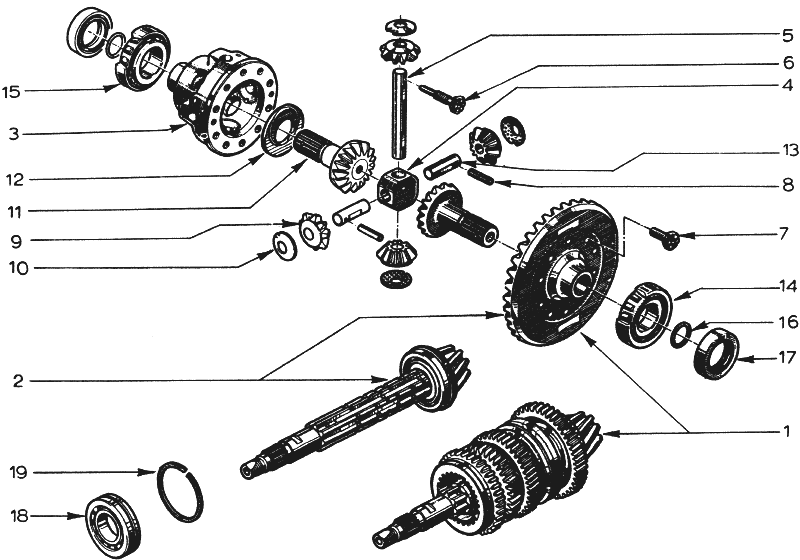

LOTUS EUROPA TC/TCS PARTS MANUALSection FN -- Transmission -- Crown Wheel and Pinion (365)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (110K) |
Notes Bulletin Reference | |||||||||||||
1 | A074F6151Z | 1 | 1 | + | + | Crown Wheel and Pinion with Gear Set | Type 365-04 | ||||||
A074F6160Z | 1 | 1 | + | + | Crown Wheel and Pinion with Gear Set | Type 365-07 | |||||||
2 | A074F6152Z | 1 | 1 | + | + | Crown Wheel and Pinion (Yellow) | Type 365-04 | ||||||
2 | A074F6159Z | 1 | 1 | + | + | Crown Wheel and Pinion (Yellow) | Type 365-07 | ||||||
2 | A074F6153Z | 1 | 1 | + | + | Crown Wheel and Pinion (Blue) | Type 365-04 | ||||||
2 | A074F6158Z | 1 | 1 | + | + | Crown Wheel and Pinion (Blue) | Type 365-07 | ||||||
18 | A074F6036Z | 1 | 1 | + | + | Bearing - Pinion - Crown Wheel and Pinion | |||||||
19 | A074F6037Z | 1 | 1 | + | + | Circlip Bearing - Pinion - Crown Wheel and Pinion | |||||||
3 | A074F6155Z | 1 | 1 | + | + | Housing | |||||||
4 | A074F6154Z | 1 | 1 | + | + | Hub | |||||||
5 | A074F6146Z | 1 | 1 | + | + | Shaft | |||||||
6 | A074F6147Z | 1 | 1 | + | + | Pip Bolt - Crown Wheel Attaching | |||||||
7 | A074F6139Z | 9 | 9 | + | + | Bolt - Crown Wheel Attaching | |||||||
8 | A074F6149Z | 2 | 2 | + | + | Roll Pin | |||||||
9 | A074F6145Z | 4 | 4 | + | + | Planet Wheel | |||||||
10 | A074F6135Z | 4 | 4 | + | + | Thrust Washer | |||||||
11 | A074F6150Z | 2 | 2 | + | + | Sun Wheel | |||||||
12 | A074F6144Z | + | + | Washer 1.97 to 2.00 mm (As Required) | |||||||||
12 | A074F6145Z | + | + | Washer 2.03 to 2.08 mm (As Required) | |||||||||
13 | A074F6148Z | 2 | 2 | + | + | Shaft | |||||||
14 | X046F6142Z | 1 | 1 | + | + | Bearing | |||||||
15 | X046F6126Z | 1 | 1 | + | + | Bearing | |||||||
16 | X046F6140Z | 2 | 2 | + | + | O Ring | |||||||
17 | Z74F6042Z | 2 | 2 | + | + | Seal | |||||||
18 | A074F6036Z | 1 | 1 | + | + | Bearing - Pinion | |||||||
19 | A074F6024Z | 1 | 1 | + | + | Circlip - Bearing |
