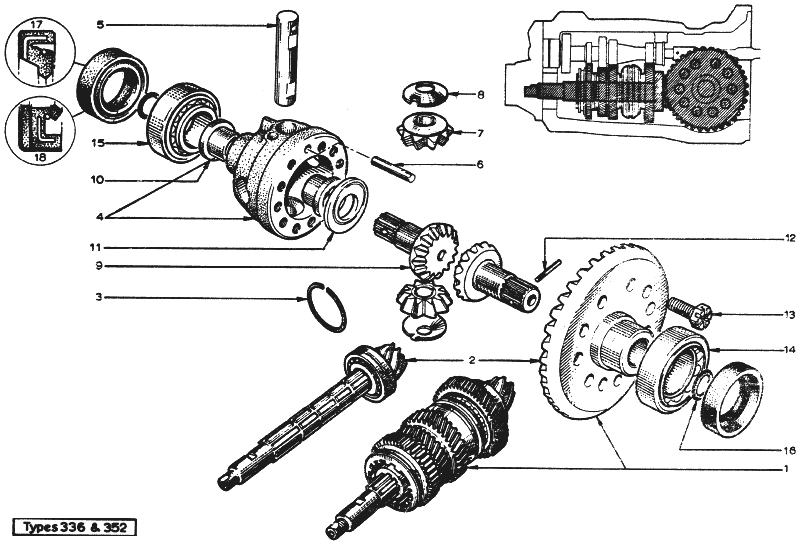

LOTUS EUROPA TC/TCS PARTS MANUALSection FM -- Transmission -- Crown Wheel and Pinion (336/352)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (135K) |
Notes Bulletin Reference | |||||||||||||
1 | B046F6143W | 1 | 1 | + | + | Crown Wheel and Pinion with Gear Set (336 Gearbox) | |||||||
1 | A074F6057W | 1 | 1 | 1 | 1 | Crown Wheel and Pinion with Gear Set (352 Gearbox) | |||||||
2 | X046F6131Z | 1 | 1 | + | + | Crown Wheel and Pinion (Yellow) (336 Gearbox) | |||||||
2 | X046F6132Z | 1 | 1 | + | + | Crown Wheel and Pinion (Blue) (336 Gearbox) | |||||||
2 | A074F6056Z | 1 | 1 | 1 | 1 | Crown Wheel and Pinion (Yellow) (352 Gearbox) | |||||||
2 | A074F6055Z | 1 | 1 | 1 | 1 | Crown Wheel and Pinion (Blue) (352 Gearbox) | |||||||
3 | X046F6129Z | 1 | 1 | + | + | Circlip | |||||||
4 | A046F6192Z | 1 | 1 | + | + | Carrier - Crown Wheel | |||||||
5 | C046F6193Z | 1 | 1 | + | + | Differential Pin (336 gearbox) | |||||||
5 | A074F6058Z | 1 | 1 | 1 | 1 | Differential Pin (352 Gearbox) | |||||||
6 | A046F6124Z | 1 | 1 | 1 | 1 | Roll Pin | |||||||
7 | A046F6136Z | 2 | 2 | 2 | 2 | Planet Wheel | |||||||
8 | X046F6135Z | 2 | 2 | 2 | 2 | Thrust Washer | |||||||
9 | X046F6138Z | 2 | 2 | 2 | 2 | Sun Washer | |||||||
10 | X046F6137Z | 2 | 2 | 2 | 2 | Bush | |||||||
11 | X046F6144Z | Washer (1.97 to 2.00 mm) (As Required) | |||||||||||
11 | X046F6145Z | Washer (2.03 to 2.07 mm) (As Required) | |||||||||||
12 | X046F6188Z | 2 | 2 | 2 | 2 | Roll Pin | |||||||
13 | X046S6194Z | 10 | 10 | + | + | Bolt - Crown Wheel Attaching (336 Gearbox) | |||||||
13 | X046F6139Z | 10 | 10 | 10 | 10 | Bolt - Crown Wheel Attaching (352 Gearbox) | |||||||
14 | X046F6142Z | 1 | 1 | 1 | 1 | Bearing | |||||||
15 | X046F6126Z | 1 | 1 | 1 | 1 | Bearing | |||||||
16 | X046F6140Z | 2 | 2 | 2 | 2 | O Ring | |||||||
17 | X046F6141Z | 2 | 2 | + | + | Ring Seal (336 Gearbox) | |||||||
17 | X046F6141Z | 2 | 2 | + | + | Ring Seal (336 Gearbox) | Replaces X046F6141Z | ||||||
18 | A074F6024Z | 2 | 2 | 2 | 2 | Ring Seal (352 Gearbox) |
