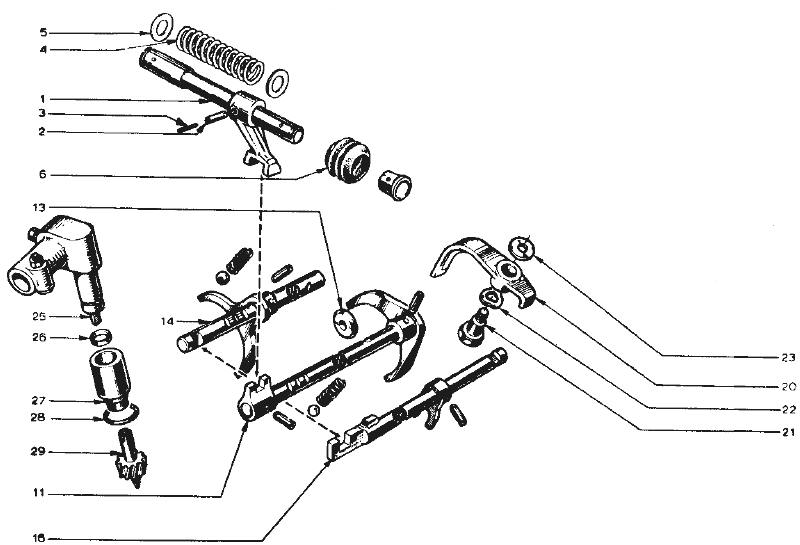

LOTUS EUROPA TC/TCS PARTS MANUALSection FJ -- Transmission -- Shift Mechanism (336)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (100K) |
Notes Bulletin Reference | |||||||||||||
1 | X054F6005Z | 1 | 1 | + | + | Cross Shaft | - More Info - | ||||||
2 | A074F6004Z | 1 | 1 | + | + | Roll Pin - Outer | |||||||
3 | X046F6097Z | 1 | 1 | + | + | Roll Pin - Inner | |||||||
4 | A046F6049Z | 1 | 1 | + | + | Spring | |||||||
5 | A046F6093Z | 2 | 2 | + | + | Washer | |||||||
6 | X046F6092Z | 2 | 2 | + | + | Cap - Protective | |||||||
11 | D046F6109Z | 1 | 1 | + | + | Selector Shaft with Fork 1st/2nd Gear | |||||||
11 | X046F6110Z | 1 | 1 | + | + | Roll Pin - Fork Attaching - Selector Shaft with Fork 1st/2nd Gear | |||||||
11 | A046F6030Z | 1 | 1 | + | + | Locking Ball - Selector Shaft with Fork 1st/2nd Gear | |||||||
11 | A046F6101Z | 1 | 1 | + | + | Spring - Selector Shaft with Fork 1st/2nd Gear | |||||||
13 | X046F6100Z | 1 | 1 | + | + | Locking Disc | |||||||
14 | B046F6103Z | 1 | 1 | + | + | Selector Shaft with Fork 3rd/4th Gear | |||||||
14 | X046F6099Z | 1 | 1 | + | + | roll Pin - Fork Attaching - Selector Shaft with Fork 3rd/4th Gear | |||||||
14 | A046F6030Z | 1 | 1 | + | + | Locking Ball - Selector Shaft with Fork 3rd/4th Gear | |||||||
14 | A046F6101Z | 1 | 1 | + | + | Spring - Selector Shaft with Fork 3rd/4th Gear | |||||||
16 | X054F6006Z | 1 | 1 | + | + | Selector Shaft with Fork - Reverse Gear | |||||||
16 | X046F6123Z | 1 | 1 | + | + | Roll Pin - Fork Attaching - Selector Shaft with Fork - Reverse Gear | |||||||
20 | X046F6120Z | 1 | 1 | + | + | Selector Reverse Gear (Pivot hole dia 12mm) | |||||||
20 | X074F6038Z | 1 | 1 | + | + | Selector Reverse Gear (Pivot hole dia 14mm) | |||||||
21 | X046F6122Z | 1 | 1 | + | + | Pivot Bolt (Dia 12 mm) | |||||||
21 | A074F6033Z | 1 | 1 | + | + | Pivot Bolt (Dia 14 mm) | |||||||
22 | X046F6121Z | 1 | 1 | + | + | Washer (I/D 12 mm) | |||||||
22 | A074F6034Z | 1 | 1 | + | + | Washer (I/D 14 mm) | |||||||
23 | X046F6119Z | 1 | 1 | + | + | Spacer Washer | |||||||
25 | X046F6104Z | 1 | 1 | + | + | Speedometer Angle Drive | |||||||
26 | X046F6105Z | 1 | 1 | + | + | Ring Seal | |||||||
27 | X046F6106Z | 1 | 1 | + | + | Speedometer Drive Gear Guide | |||||||
28 | X046F6107Z | 1 | 1 | + | + | O Ring | |||||||
29 | X046F6108Z | 1 | 1 | + | + | Speedometer Drive Gear |
