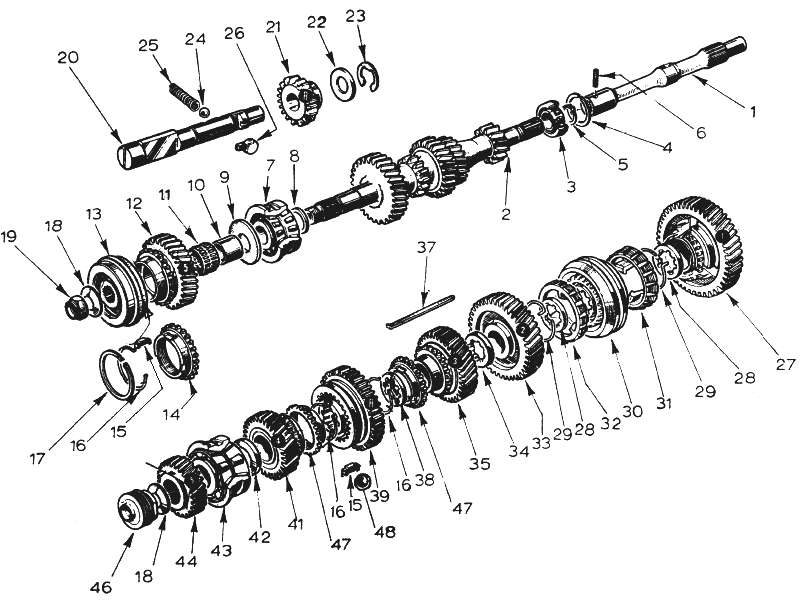

LOTUS EUROPA TC/TCS PARTS MANUALSection FH -- Transmission -- Gearset (365)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (330K) |
Notes Bulletin Reference | |||||||||||||
1 | A074F6052Z | 1 | 1 | + | + | Clutch Shaft | |||||||
2 | A074F6091Z | 1 | 1 | + | + | Primary Shaft | |||||||
3 | A074F6090Z | 1 | 1 | + | + | Bearing | |||||||
4 | A074F6088Z | 1 | 1 | + | + | Circlip - Inner | |||||||
5 | A074F6089Z | 1 | 1 | + | + | Circlip - Outer | |||||||
6 | A046F6033Z | 1 | 1 | + | + | Roll Pin | |||||||
7 | A074F6122Z | 1 | 1 | + | + | Bearing | |||||||
8 | A074F6100Z | Shim - 3.00 mm. (As Required) | |||||||||||
8 | A074F6101Z | Shim - 3.25 mm. (As Required) | |||||||||||
8 | A074F6102Z | Shim - 3.50 mm. (As Required) | |||||||||||
8 | A074F6103Z | Shim - 3.75 mm. (As Required) | |||||||||||
8 | A074F6104Z | Shim - 4.00 mm. (As Required) | |||||||||||
8 | A074F6105Z | Shim - 4.25 mm. (As Required) | |||||||||||
8 | A074F6106Z | Shim - 4.50 mm. (As Required) | |||||||||||
8 | A074F6107Z | Shim - 4.75 mm. (As Required) | |||||||||||
8 | A074F6108Z | Shim - 5.00 mm. (As Required) | |||||||||||
8 | A074F6109Z | Shim - 5.25 mm. (As Required) | |||||||||||
8 | A074F6110Z | Shim - 5.50 mm. (As Required) | |||||||||||
9 | A074F6121Z | 1 | 1 | + | + | Spacer | |||||||
10 | A074F6120Z | 1 | 1 | + | + | Sleeve | |||||||
11 | A074F6119Z | 1 | 1 | + | + | Bearing - Needle Roller | |||||||
12 | A074F6223Z | 1 | 1 | + | + | Gear - 5th Primary | |||||||
13 | A074F6117Z | 1 | 1 | + | + | Synchroniser Hub 5th | |||||||
14 | A074F6095Z | 1 | 1 | + | + | Synchroniser Ring | |||||||
15 | A074F6114Z | 6 | 6 | + | + | Key | Type 365-04 | ||||||
15 | A074F6114Z | 3 | 3 | + | + | Key | Type 365-07 | ||||||
16 | A074F6099Z | 3 | 3 | + | + | Synchro Spring | |||||||
17 | A074F6115Z | 1 | 1 | + | + | Circlip Inner | |||||||
18 | A074F6112Z | 2 | 2 | + | + | Washer | |||||||
19 | A074F6116Z | 1 | 1 | + | + | Nut | |||||||
20 | A074F6123Z | 1 | 1 | + | + | Shaft - Reverse Gear | |||||||
21 | A074F6124Z | 1 | 1 | + | + | Reverse Gear | |||||||
22 | X046F6026Z | 1 | 1 | + | + | Thrust Washer | |||||||
23 | X046F6025Z | 1 | 1 | + | + | Circlip | |||||||
24 | A046F6030Z | 1 | 1 | + | + | Locking Ball | |||||||
25 | A046F6029Z | 1 | 1 | + | + | Spring | |||||||
26 | A046F6032Z | 1 | 1 | + | + | Guide | |||||||
27 | X046F6053Z | 1 | 1 | + | + | Gear - 1st | Type 365-04 | ||||||
27 | A074F6161Z | 1 | 1 | + | + | Gear - 1st | Type 365-07 | ||||||
28 | X046F6038Z | 2 | 2 | + | + | Stop Washer | |||||||
29 | X046F6052Z | 2 | 2 | + | + | Synchro Spring | |||||||
30 | A074F6092Z | 1 | 1 | + | + | Synchro Hub 1st/2nd (Medium Blue) | Type 365-04 | ||||||
30 | A074F6163Z | 1 | 1 | + | + | Synchro Hub 1st/2nd (Yellow/Red) | Type 365-07 | ||||||
30 | A074F6093Z | 1 | 1 | + | + | Synchro Hub 1st/2nd (Yelow) | Type 365-04 | ||||||
30 | A074F6164Z | 1 | 1 | + | + | Synchro Hub 1st/2nd (White) | Type 365-07 | ||||||
31 | X046F6054Z | 1 | 1 | + | + | Synchro Ring 1st | Type 365-04 | ||||||
31 | A074F6162Z | 1 | 1 | + | + | Synchro Ring 1st | Type 365-07 | ||||||
32 | X046F6060Z | 1 | 1 | + | + | Synchro Ring 2nd | Type 365-04 | ||||||
32 | A074F6165Z | 1 | 1 | + | + | Synchro Ring 2nd | Type 365-07 | ||||||
33 | A074F6094Z | 1 | 1 | + | + | Gear 2nd | Type 365-04 | ||||||
33 | A074F6166Z | 1 | 1 | + | + | Gear 2nd | Type 365-07 | ||||||
34 | X046F6062Z | 1 | 1 | + | + | Stop Washer | |||||||
35 | A074F6125Z | 1 | 1 | + | + | Gear 3rd | Type 365-04 | ||||||
35 | A074F6167Z | 1 | 1 | + | + | Gear 3rd | Type 365-07 | ||||||
37 | X046F6063Z | 1 | 1 | + | + | Key | |||||||
38 | A074F6076Z | 1 | 1 | + | + | Stop Washer | Type 365-04 | ||||||
38 | A074F6169Z | 1 | 1 | + | + | Stop Washer | Type 365-07 | ||||||
39 | A074F6097Z | 1 | 1 | + | + | Synchro Hub 3rd/4th (Medium Blue) | Type 365-04 | ||||||
39 | A074F6170Z | 1 | 1 | + | + | Synchro Hub 3rd/4th (Blue/White) | Type 365-07 | ||||||
39 | A074F6098Z | 1 | 1 | + | + | Synchro Hub 3rd/4th (Yellow) | Type 365-04 | ||||||
39 | A074F6171Z | 1 | 1 | + | + | Synchro Hub 3rd/4th (Red) | Type 365-07 | ||||||
41 | A074F6156Z | 1 | 1 | + | + | Gear 4th | Type 365-04 | ||||||
41 | A074F6173Z | 1 | 1 | + | + | Gear 4th | Type 365-07 | ||||||
42 | X046F6064Z | + | + | Shim - 3.50 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6065Z | + | + | Shim - 3.55 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6066Z | + | + | Shim - 3.60 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6067Z | + | + | Shim - 3.65 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6068Z | + | + | Shim - 3.70 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6069Z | + | + | Shim - 3.75 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6070Z | + | + | Shim - 3.80 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6071Z | + | + | Shim - 3.85 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6072Z | + | + | Shim - 3.90 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6073Z | + | + | Shim - 3.95 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6074Z | + | + | Shim - 4.00 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6075Z | + | + | Shim - 4.05 mm. (As Required) | Type 365-04 Only | ||||||||
42 | X046F6076Z | + | + | Shim - 4.10 mm. (As Required) | Type 365-04 Only | ||||||||
43 | X046F6048Z | 1 | 1 | + | + | Bearing | |||||||
44 | A074F0224Z | 1 | 1 | + | + | Gear 5th Primary | |||||||
46 | A074F6111Z | 1 | 1 | + | + | Speedometer Worm Nut | |||||||
47 | A074F6095Z | 2 | 2 | + | + | Synchro Ring | Type 365-04 | ||||||
47 | A074F6168Z | 2 | 2 | + | + | Synchro Ring | Type 365-07 | ||||||
48 | A074F6172Z | 3 | 3 | + | + | Locking Ball | Type 365-07 |
