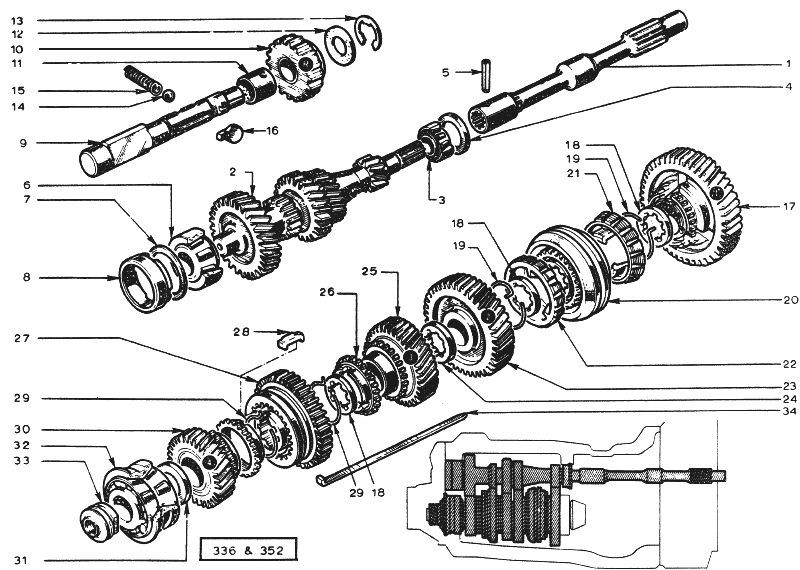

LOTUS EUROPA TC/TCS PARTS MANUALSection FG -- Transmission -- Gearset (336/352)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (300K) |
Notes Bulletin Reference | |||||||||||||
1 | X046F6050Z | 1 | 1 | + | + | Clutch Shaft (336 Gearbox) | |||||||
1 | A074F6052Z | 1 | 1 | 1 | 1 | Clutch Shaft (352 Gearbox) | |||||||
2 | B046F6034Z | 1 | 1 | 1 | 1 | Primary Shaft | |||||||
3 | X046F6051Z | 1 | 1 | 1 | 1 | Bearing | |||||||
4 | X046F6082Z | Shim - 2.00 mm. (As Required) | |||||||||||
4 | X046F6083Z | Shim - 2.25 mm. (As Required) | |||||||||||
4 | X046F6084Z | Shim - 2.50 mm. (As Required) | |||||||||||
4 | X046F6085Z | Shim - 2.75 mm. (As Required) | |||||||||||
4 | X046F6086Z | Shim - 3.00 mm. (As Required) | |||||||||||
4 | X046F6087Z | Shim - 3.25 mm. (As Required) | |||||||||||
4 | X046F6088Z | Shim - 3.50 mm. (As Required) | |||||||||||
4 | X046F6089Z | Shim - 3.75 mm. (As Required) | |||||||||||
4 | X046F6090Z | Shim - 4.00 mm. (As Required) | |||||||||||
5 | A06F6033Z | 1 | 1 | 1 | 1 | Roll Pin | |||||||
6 | X046F6035Z | 1 | 1 | 1 | 1 | Bearing | |||||||
7 | X046F6077Z | Shim - 0.10 mm. (As Required) | |||||||||||
7 | X046F6078Z | Shim - 0.20 mm. (As Required) | |||||||||||
7 | X046F6079Z | Shim - 0.25 mm. (As Required) | |||||||||||
7 | X046F6080Z | Shim - 0.50 mm. (As Required) | |||||||||||
7 | X046F6081Z | Shim - 1.00 mm. (As Required) | |||||||||||
8 | X046F6036Z | 1 | 1 | 1 | 1 | Retaining Ring | |||||||
9 | A046F6031Z | 1 | 1 | 1 | 1 | Shaft - Reverse Gear | |||||||
10 | X046F6027Z | 1 | 1 | 1 | 1 | Reverse Gear | |||||||
11 | X046F6028Z | 1 | 1 | + | + | Bush (336 Gearbox) | |||||||
12 | X046F6026Z | 1 | 1 | 1 | 1 | Thrust Washer | |||||||
13 | X046F6025Z | 1 | 1 | 1 | 1 | Circlip | |||||||
14 | A046F6030Z | 1 | 1 | 1 | 1 | Locking Ball | |||||||
15 | A046F6029Z | 1 | 1 | 1 | 1 | Spring | |||||||
16 | A046F6032Z | 1 | 1 | 1 | 1 | Guide | |||||||
17 | A046F6053Z | 1 | 1 | 1 | 1 | Gear - 1st | |||||||
18 | X046F6038Z | 3 | 3 | 3 | 3 | Stop Washer | |||||||
19 | X046F6052Z | 2 | 2 | 2 | 2 | Synchro Spring | |||||||
20 | X046F6058Z | 1 | 1 | 1 | 1 | Synchroniser Hub (yellow) | |||||||
20 | X046F6059Z | 1 | 1 | 1 | 1 | Synchroniser Hub (blue) | |||||||
21 | X046F6054Z | 1 | 1 | 1 | 1 | Synchroniser Ring - 1st | |||||||
22 | X046F6060Z | 1 | 1 | 1 | 1 | Synchroniser Ring - 2nd | |||||||
23 | B046F6061Z | 1 | 1 | 1 | 1 | Gear - 2nd | |||||||
24 | X046F6062Z | 1 | 1 | 1 | 1 | Stop Washer | |||||||
25 | X046F6037Z | 1 | 1 | 1 | 1 | Gear - 3rd | |||||||
26 | X046F6046Z | 2 | 2 | 2 | 2 | Synchroniser Ring - 3rd/4th | |||||||
27 | X046F6042Z | 1 | 1 | 1 | 1 | Synchroniser - 3rd/4th (yellow) | |||||||
27 | X046F6043Z | 1 | 1 | 1 | 1 | Synchroniser - 3rd/4th (blue) | |||||||
28 | X046F6039Z | 3 | 3 | 3 | 3 | Key | |||||||
29 | X046F6040Z | 2 | 2 | 2 | 2 | Synchro Spring | |||||||
30 | X046F6047Z | 1 | 1 | 1 | 1 | Gear - 4th | |||||||
31 | X046F6064Z | Shim - 3.50 mm. (As Required) | |||||||||||
31 | X046F6065Z | Shim - 3.55 mm. (As Required) | |||||||||||
31 | X046F6066Z | Shim - 3.60 mm. (As Required) | |||||||||||
31 | X046F6067Z | Shim - 3.65 mm. (As Required) | |||||||||||
31 | X046F6068Z | Shim - 3.70 mm. (As Required) | |||||||||||
31 | X046F6069Z | Shim - 3.75 mm. (As Required) | |||||||||||
31 | X046F6070Z | Shim - 3.80 mm. (As Required) | |||||||||||
31 | X046F6071Z | Shim - 3.85 mm. (As Required) | |||||||||||
31 | X046F6072Z | Shim - 3.90 mm. (As Required) | |||||||||||
31 | X046F6073Z | Shim - 3.95 mm. (As Required) | |||||||||||
31 | X046F6074Z | Shim - 4.00 mm. (As Required) | |||||||||||
31 | X046F6075Z | Shim - 4.05 mm. (As Required) | |||||||||||
31 | X046F6076Z | Shim - 4.10 mm. (As Required) | |||||||||||
32 | X046F6048Z | 1 | 1 | 1 | 1 | Bearing | |||||||
33 | X046F6049Z | 1 | 1 | + | + | Speedometer Worm Nut (336 Gearbox) | |||||||
33 | A074F6054Z | 1 | 1 | 1 | 1 | Speedometer Worm Nut (352 Gearbox) | |||||||
34 | A074F6063Z | 1 | 1 | 1 | 1 | Key |
