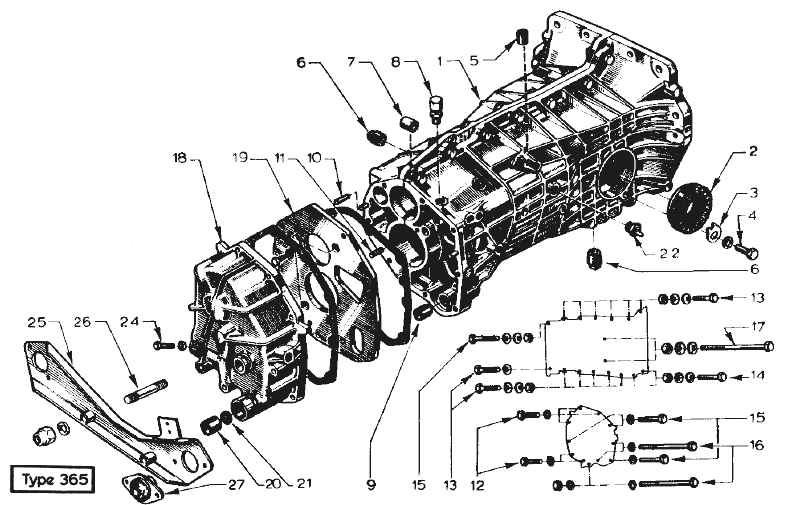

LOTUS EUROPA TC/TCS PARTS MANUALSection FE -- Transmission -- Casing (365)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (290K) |
Notes Bulletin Reference | |||||||||||||
A074F6019S | 1 | 1 | + | + | Gearbox Assembly | ||||||||
1 | A074F6077Z | 1 | 1 | + | + | Gearbox Casing | Type 365-04 | ||||||
1 | A074F6175Z | 1 | 1 | + | + | Gearbox Casing | Typt 365-07 | ||||||
2 | A074F6045Z | 2 | 2 | + | + | Nut - Bearing Retaining | |||||||
3 | X046F6015Z | 2 | 2 | + | + | Tab Washer | |||||||
3 | A046W6083Z | 2 | 2 | + | + | Washer | |||||||
4 | A074W6001Z | 2 | 2 | + | + | Bolt | |||||||
5 | X046F6013Z | 1 | 1 | + | + | Helicoil Insert | |||||||
6 | A074F6046Z | 2 | 2 | + | + | Plug - Oil Filler/Drain | |||||||
7 | X046F6003Z | 2 | 2 | + | + | Dowel | |||||||
8 | X046F6005Z | 1 | 1 | + | + | Breather | |||||||
9 | A074F6026Z | 1 | 1 | + | + | Bush | |||||||
10 | A074F6080Z | 1 | 1 | + | + | Dowel Pin | |||||||
11 | X046F6009Z | 1 | 1 | + | + | Dowel Pin | |||||||
12 | A074F6087Z | 5 | 5 | + | + | Bolt | |||||||
12 | A046W6011Z | 5 | 5 | + | + | Washer - Star | |||||||
13 | A046W6086Z | 12 | 12 | + | + | Bolt - 7 x 30 mm | |||||||
13 | A074W6003Z | 23 | 23 | + | + | Washer | |||||||
13 | A046W6084Z | 11 | 11 | + | + | Nut | |||||||
14 | A046W6089Z | 2 | 2 | + | + | Bolt - 7 x 35 mm | |||||||
14 | A074W6003Z | 4 | 4 | + | + | Washer - 7 x 35 mm | |||||||
14 | A046W6084Z | 2 | 2 | + | + | Nut - 7 x 35 mm | |||||||
15 | A046W6090Z | 4 | 4 | + | + | Bolt - 7 x 40 | |||||||
15 | A046W6011Z | 3 | 3 | + | + | Star Washer - Bolt - 7 x 40 | |||||||
15 | A074W6003Z | 2 | 2 | + | + | Washer - Bolt - 7 x 40 | |||||||
15 | A046W6084Z | 1 | 1 | + | + | Nut - Bolt - 7 x 40 | |||||||
16 | A074F6079Z | 3 | 3 | + | + | Bolt - 7 x 80 | |||||||
16 | A046W6011Z | 4 | 4 | + | + | Star Washer - Bolt - 7 x 80 | |||||||
16 | A046W6084Z | 1 | 1 | + | + | Nut - Bolt - 7 x 80 | |||||||
17 | A046W6088Z | 2 | 2 | + | + | Bolt - 8 x 110 | |||||||
17 | A046W6004Z | 4 | 4 | + | + | Washer - Bolt - 8 x 110 | |||||||
17 | A046W6087Z | 2 | 2 | + | + | Nut - Bolt - 8 x 110 | |||||||
18 | A074F6085Z | 1 | 1 | + | + | Rear Casing | |||||||
18 | A074F6082Z | 1 | 1 | + | + | Rear Casing to Spacer Plate Gasket | |||||||
19 | A074F6018Z | 1 | 1 | + | + | Spacer Plate | |||||||
19 | A074F6084Z | 3 | 3 | + | + | Bolt - Attaching - Spacer Plate | |||||||
19 | A074F6083Z | 3 | 3 | + | + | Washer - Attaching - Spacer Plate | |||||||
19 | A074F6047Z | 1 | 1 | + | + | Spacer Plate to Main Casing Gasket | |||||||
20 | A074F6027Z | 1 | 1 | + | + | Bush | |||||||
21 | A074W6028Z | 1 | 1 | + | + | Washer | |||||||
21 | A074F6076Z | 1 | 1 | + | + | Oil Seal | |||||||
22 | A074F6078Z | 1 | 1 | + | + | Reversing Lamp Switch | |||||||
24 | A074F6086Z | 1 | 1 | + | + | Bolt | |||||||
24 | A074W6007Z | 1 | 1 | + | + | Washer - Bolt | |||||||
25 | A074F0220Z | 1 | 1 | + | + | Mounting Plate - Gearbox to Chassis | |||||||
26 | A074F0289Z | 2 | 2 | + | + | Stud | |||||||
26 | L0BW0000 | 2 | 2 | + | + | Washer - Stud | |||||||
26 | YMMN070F | 2 | 2 | + | + | Nut - Stud | |||||||
27 | A074F6008Z | 2 | 2 | + | + | Mounting |
