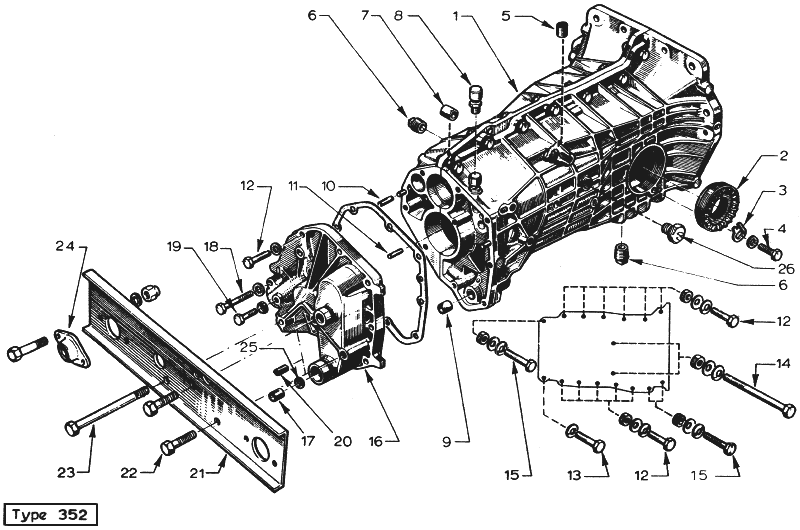

LOTUS EUROPA TC/TCS PARTS MANUALSection FD -- Transmission -- Casing (352)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (290K) |
Notes Bulletin Reference | |||||||||||||
PA074F6003W | 1 | 1 | 1 | 1 | Gearbox Assembly (13 mm diameter control shaft) | ||||||||
B074F6003W | 1 | 1 | 1 | 1 | Gearbox Assembly (15 mm diameter control shaft) | Gearbox Ser. No. 17000 onwards | |||||||
1 | A074F6044Z | 1 | 1 | 1 | 1 | Gearbox Casing (13 mm diameter control shaft) | |||||||
1 | A074F6030Z | 1 | 1 | 1 | 1 | Gearbox Casing (15 mm diameter control shaft) | |||||||
2 | A074F6045Z | 2 | 2 | 2 | 2 | Nut - Bearing Retaining | |||||||
3 | X046F6015Z | 2 | 2 | 2 | 2 | Tabwasher | |||||||
3 | A074W6000Z | 2 | 2 | 2 | 2 | Washer | |||||||
4 | A074W6001Z | 2 | 2 | 2 | 2 | Bolt | |||||||
5 | X046F6013Z | 1 | 1 | 1 | 1 | Helicoil Insert | |||||||
6 | A074F6046Z | 2 | 2 | 2 | 2 | Plug - Oil Filler/Drain | |||||||
7 | X046F6003Z | 2 | 2 | 2 | 2 | Dowel | |||||||
8 | X046F6005Z | 1 | 1 | 1 | 1 | Breather | |||||||
9 | Z074F6051Z | 1 | 1 | 1 | 1 | Bush (13 mm diameter control shaft) | |||||||
9 | A074F6026Z | 1 | 1 | 1 | 1 | Bush (15 mm diameter control shaft) | |||||||
10 | X046F6004Z | 2 | 2 | 2 | 2 | Dowel Pin | |||||||
11 | X046F6009Z | 1 | 1 | 1 | 1 | Dowel Pin | |||||||
12 | A046W6086Z | 17 | 17 | 17 | 17 | Bolt - 7 x 35 | |||||||
12 | A074W6003Z | 11 | 11 | 11 | 11 | Washer - Bolt - 7 x 35 | |||||||
12 | A046W6084Z | 11 | 11 | 11 | 11 | Nut - Bolt - 7 x 35 | |||||||
13 | A046W6089Z | 1 | 1 | 1 | 1 | Washer - Bolt - 7 x 35 | |||||||
A074W6003Z | 1 | 1 | 1 | 1 | Washer | ||||||||
14 | A046W6088Z | 2 | 2 | 2 | 2 | Bolt - 8 x 10 | |||||||
14 | A074W6004Z | 4 | 4 | 4 | 4 | Washer - Bolt - 8 x 10 | |||||||
14 | A046W6087Z | 2 | 2 | 2 | 2 | Nut - Bolt - 8 x 10 | |||||||
15 | A046W6090Z | 3 | 3 | 3 | 3 | Bolt - 7 x 40 | |||||||
15 | A074W6003Z | 6 | 6 | 6 | 6 | Washer - Bolt - 7 x 40 | |||||||
15 | A046W6084 | 3 | 3 | 3 | 3 | Nut - Bolt - 7 x 40 | |||||||
16 | A074F6048Z | 1 | 1 | 1 | 1 | Rear Casing | For 13 mm. dia. Control shaft | ||||||
16 | A074F6013Z | 1 | 1 | 1 | 1 | Rear Casing | For 15 mm. dia. Contrlo shaft | ||||||
16 | A074F6047Z | 1 | 1 | 1 | 1 | Rear to Main Casings Gasket | |||||||
17 | A074F6050Z | 1 | 1 | 1 | 1 | Bush | For 13 mm. dia. Control shaft | ||||||
17 | A074F6027Z | 1 | 1 | 1 | 1 | Bush | For 15 mm. dia. Control shaft | ||||||
18 | A046W6092Z | 1 | 1 | 1 | 1 | Bolt - 7 x 70 | |||||||
19 | A074W6006Z | 1 | 1 | 1 | 1 | Bolt | |||||||
19 | A074W6007Z | 1 | 1 | 1 | 1 | Washer - For Bolt A074W6006Z | |||||||
20 | A074F6049Z | 2 | 2 | 2 | 2 | Helicoil Insert | |||||||
21 | B074F0185Z | 1 | 1 | 1 | 1 | Mounting Plate - Gearbox to Chassis | |||||||
21 | C074F0185Z | 1 | 1 | 1 | 1 | Mounting Plate - Gearbox to Chassis | Introduced at Unit No. U.K. ? European ? Federal ? | ||||||
22 | XMMB0720 | 2 | 2 | 2 | 2 | Bolt - Attaching | For B074F0185Z | ||||||
22 | A074F0288Z | 2 | 2 | 2 | 2 | Stud - Attaching | For C074F0185Z | ||||||
23 | XMMB0780 | 1 | 1 | 1 | 1 | Bolt - Attaching | For B074F0185Z | ||||||
23 | A074F0287Z | 1 | 1 | 1 | 1 | Stud - Attaching | For C074F0185Z | ||||||
23 | L08W0000 | 3 | 3 | 3 | 3 | Washer - Shakeproof | For C074F0185Z | ||||||
23 | YMMN070F | 3 | 3 | 3 | 3 | Nut | For C074F0185Z | ||||||
24 | A074F6008Z | 2 | 2 | 2 | 2 | Mounting | |||||||
24 | XMMB12100Z | 2 | 2 | 2 | 2 | Bolt - Attaching - gearbox Mounting to Chassis | |||||||
25 | A074W6008Z | 1 | 1 | 1 | 1 | Washer | For 13 mm. dia. control shaft | ||||||
25 | A074F6028Z | 1 | 1 | 1 | 1 | Washer | For 15 mm. dia. control shaft | ||||||
26 | A065M6002Z | 1 | 1 | 1 | 1 | Reversing Lamp Switch |
