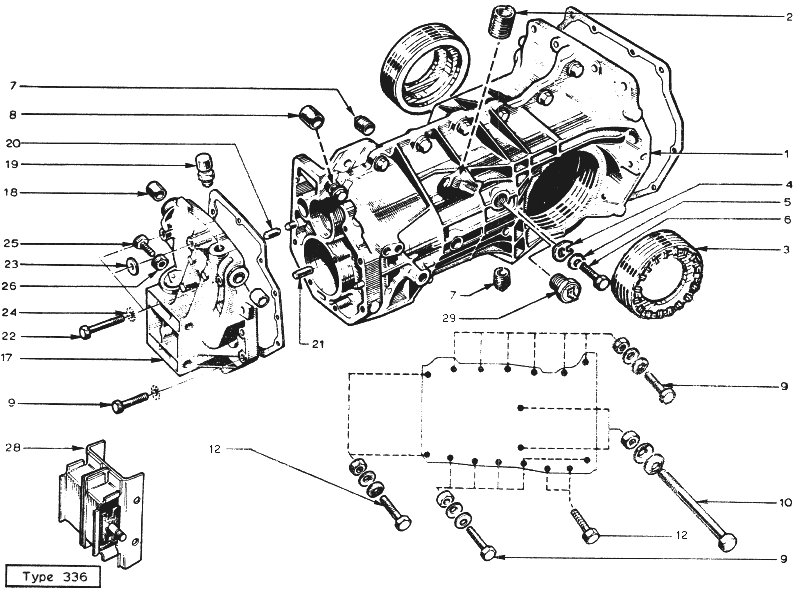

LOTUS EUROPA TC/TCS PARTS MANUALSection FC -- Transmission -- Casing (336)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (265K) |
Notes Bulletin Reference | |||||||||||||
A074F6002W | 1 | 1 | + | + | Gearbox Assebbly | ||||||||
1 | B046F6014Z | 1 | 1 | + | + | Gearbox Casing | |||||||
2 | X046F6013 | 1 | 1 | + | + | Helicoil Insert | |||||||
3 | Z046F6013Z | 2 | 2 | + | + | Nut - Bearing Retaining | |||||||
4 | X046F6001Z | 2 | 2 | + | + | Tabwasher | |||||||
5 | X046F6015Z | 2 | 2 | + | + | Washer | |||||||
6 | A046W6083Z | 2 | 2 | + | + | Bolt | |||||||
7 | A046W6019Z | 2 | 2 | + | + | Plug - Oil Filler/Drain | Replaces X046F6002Z | ||||||
8 | A074F6046Z | 2 | 2 | + | + | Spacer | |||||||
9 | X046F6003Z | 16 | 16 | + | + | Bolt - 7 x 30 | |||||||
9 | A046W6086Z | 11 | 11 | + | + | Washer - Bolt - 7 x 30 | |||||||
9 | A046W6093Z | 5 | 5 | + | + | Star Washer - Bolt - 7 x 30 | |||||||
9 | A046W6084Z | 12 | 12 | + | + | Nut - Bolt - 7 x 30 | |||||||
10 | A046W6088Z | 2 | 2 | + | + | Bolt - 8 x 110 | |||||||
10 | A046W6091Z | 4 | 4 | + | + | Washer - Bolt - 8 x 110 | |||||||
10 | A046W6087Z | 2 | 2 | + | + | Nut Bolt - 8 x 110 | |||||||
12 | A046W6090Z | 4 | 4 | + | + | Bolt - 7 x 40 | |||||||
12 | A046W6085Z | 4 | 4 | + | + | Washer - Bolt - 7 x 40 | |||||||
12 | A046W6084Z | 2 | 2 | + | + | Nut - Bolt - 7 x 40 | |||||||
17 | B046F6008Z | 1 | 1 | + | + | Rear Casing | |||||||
18 | A046F6006Z | 2 | 2 | + | + | Bush | Replaces X046F6006Z | ||||||
19 | X046F6005Z | 1 | 1 | + | + | Breather | |||||||
20 | X046F6004Z | 2 | 2 | + | + | Dowell Pin | |||||||
21 | X046F6009Z | 1 | 1 | + | + | Dowell Pin | |||||||
22 | A046F6092Z | 3 | 3 | + | + | Bolt - 7 x 50 | |||||||
24 | A046W6093Z | 5 | 5 | + | + | Star Washer - Bolt - 7 x 50 | |||||||
23 | A046W6036Z | 1 | 1 | + | + | Washer | |||||||
25 | A046W6095Z | 1 | 1 | + | + | Bolt | |||||||
26 | A046W6094Z | 1 | 1 | + | + | Nut | |||||||
28 | B046F6195Z | 1 | 1 | + | + | Mounting | |||||||
28 | X046E6462Z | 2 | 2 | + | + | Bolt - Mouting Attachment | |||||||
28 | A046W6002Z | 2 | 2 | + | + | Washer - Mouting Attachment | |||||||
28 | A046W6105Z | 2 | 2 | + | + | Nut - Mouting Attachment | |||||||
29 | A065M6002Z | 1 | 1 | + | + | Switch - Reversing Lamp - c/w Washer |
