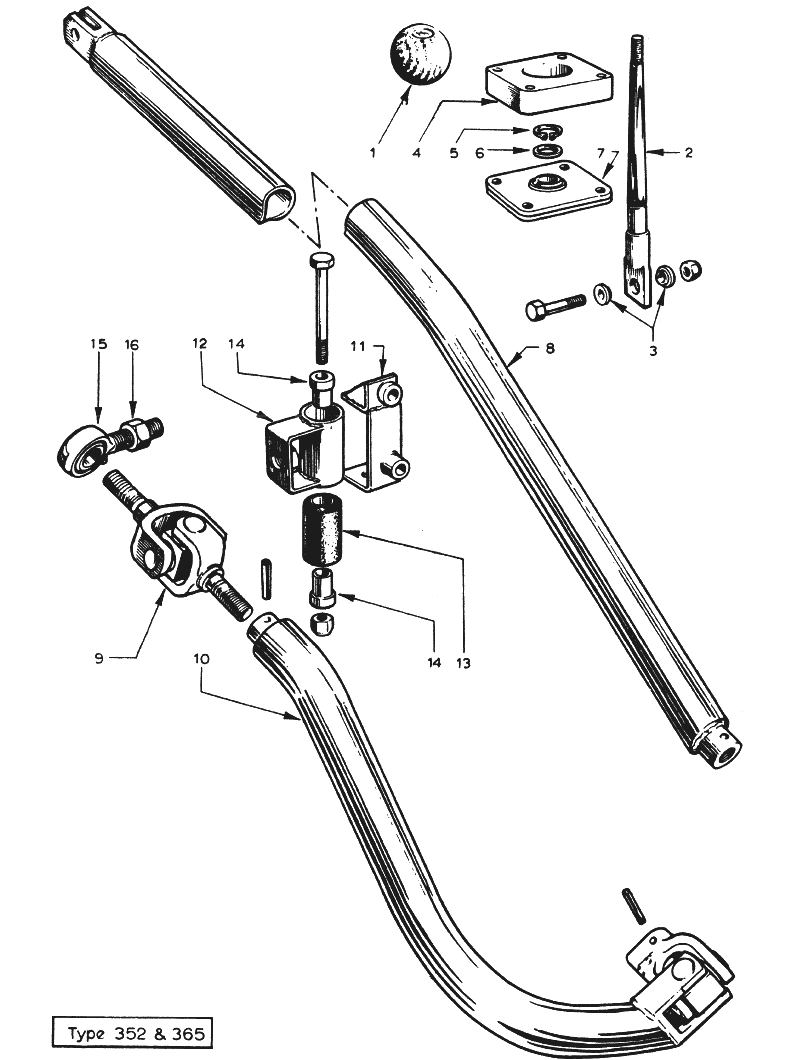

LOTUS EUROPA TC/TCS PARTS MANUALSection FB -- Transmission -- Shift Linkage (352/365)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (120K) |
Notes Bulletin Reference | |||||||||||||
1 | A050F0002A | 1 | 1 | 1 | 1 | Knob - Gear Lever (352 Gearbox) | |||||||
1 | A074F0002Z | 1 | 1 | + | + | Knob - Gear Lever (365 Gearbox) | |||||||
2 | A074F0196Z | 1 | 1 | 1 | 1 | Lever - Gear | |||||||
3 | X046F6153Z | 2 | 2 | 2 | 2 | Bush - Lever to Front Link | |||||||
3 | 3B | 1 | 1 | 1 | 1 | Bolt - Lever to Link Attaching | |||||||
3 | 20B | 1 | 1 | 1 | 1 | Nut - Lever to Link Attaching | |||||||
4 | B074F0207Z | 1 | 1 | 1 | 1 | Plate - Spacer | |||||||
5 | X046F6156Z | 1 | 1 | 1 | 1 | Circlip | |||||||
6 | X065F0156Z | 1 | 1 | 1 | 1 | Spacer | |||||||
7 | A065F6003Z | 1 | 1 | 1 | 1 | Ball Joint | |||||||
7 | A065F0171Z | 1 | 1 | 1 | 1 | Plate - Bearing - Upper | |||||||
7 | A065F0172Z | 1 | 1 | 1 | 1 | Plate - Bearing - Lower | |||||||
7 | 41 | 4 | 4 | 4 | 4 | Screw - Attaching - Plate - Bearing | |||||||
7 | A03W0605 | 4 | 4 | 4 | 4 | Washer - Plate - Bearing | |||||||
7 | 203 | 4 | 4 | 4 | 4 | Nut - Plate - Bearing | |||||||
8 | B074F0201Z | 1 | 1 | + | + | Link - Front Longitudinal | |||||||
8 | A074F0209Z | 1 | 1 | + | + | Link - Front Longitudinal | |||||||
9 | A074F0194Z | 1 | 1 | 1 | 1 | Universal joint | |||||||
10 | B074F0204Z | 1 | 1 | 1 | 1 | Link - Rear Longitudinal | 352 Gearboxes up to Ser. No. 17000 | ||||||
10 | C074F0204Z | 1 | 1 | 1 | 1 | Link - Rear Longitudinal | 352 Gearboxes from Ser. No. 17000 | ||||||
10 | A074F0210Z | 1 | 1 | + | + | Link - Rear Longitudinal | Type 365 Gearbox Only | ||||||
10 | A074F6012Z | 3 | 3 | 3 | 3 | Pin - Spiral | |||||||
11 | C074F0187Z | 1 | 1 | 1 | 1 | Bracket - A Pivot | |||||||
12 | C074F0188Z | 1 | 1 | 1 | 1 | A Pivot | |||||||
13 | A050C6042Z | 1 | 1 | 1 | 1 | Bush | |||||||
14 | A074F0219Z | 2 | 2 | 2 | 2 | Spacer | |||||||
14 | XUFB0440 | 1 | 1 | 1 | 1 | Bolt - A Pivot - Spacer | |||||||
14 | 208 | 1 | 1 | 1 | 1 | Nut - A Pivot - Spacer | |||||||
15 | A074F6011Z | 1 | 1 | 1 | 1 | Ball Joint | |||||||
16 | 219C | 1 | 1 | 1 | 1 | Locknut | |||||||
16 | 128G | 1 | 1 | 1 | 1 | Washer - Shakeproof |
