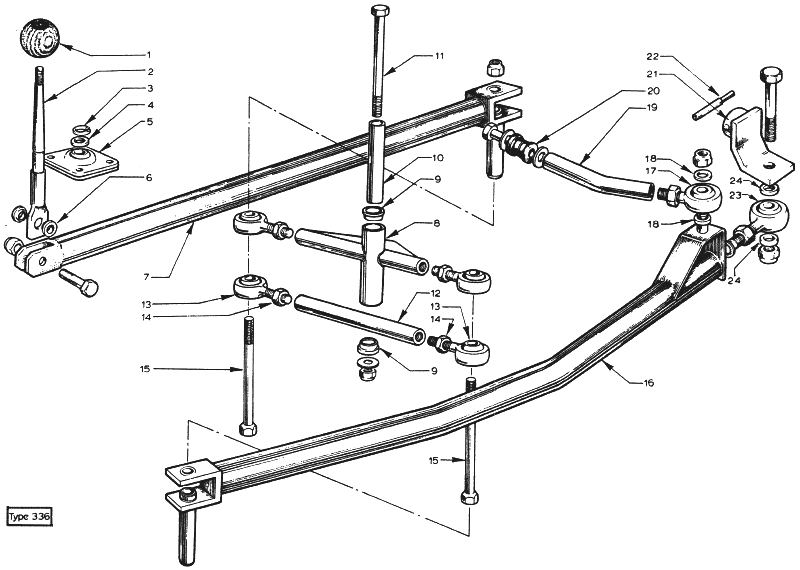

LOTUS EUROPA TC/TCS PARTS MANUALSection FA -- Transmission -- Shift Linkage (336)Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (225K) |
Notes Bulletin Reference | |||||||||||||
1 | X054F0002A | 1 | 1 | + | + | Knob - Gear Lever | |||||||
2 | A065F0155Y | 1 | 1 | + | + | Lever - Gear | |||||||
3 | X046F6156Z | 1 | 1 | + | + | Circlip | |||||||
4 | X065F0156Z | 1 | 1 | + | + | Spacer | |||||||
5 | A065F6003Z | 1 | 1 | + | + | Ball Joint | |||||||
5 | A065F0171Z | 1 | 1 | + | + | Plate - Bearing - Upper | |||||||
5 | A065F0172Z | 1 | 1 | + | + | Plate - Bearing - Lower | |||||||
5 | A074F0290Z | 1 | 1 | + | + | Plate - Spacer | |||||||
5 | 41 | 4 | 4 | + | + | Screw - Attaching - Plate - Spacer | |||||||
5 | A03W0605 | 4 | 4 | + | + | Washer - Plate - Spacer | |||||||
5 | 203 | 4 | 4 | + | + | Nut - Plate - Spacer | |||||||
6 | X046F6153Z | 2 | 2 | + | + | Bush - Lever to Front Link | |||||||
6 | 3B | 1 | 1 | + | + | Bolt - Lever to Link Attaching | |||||||
6 | 20B | 1 | 1 | + | + | Nut - Lever to Link Attaching | |||||||
7 | A074F0175Z | 1 | 1 | + | + | Link - Front Longitudinal | |||||||
8 | B054F0127Z | 1 | 1 | + | + | Relay Lever | |||||||
9 | X046F6163Z | 2 | 2 | + | + | Bush | |||||||
10 | X054F0151Z | 1 | 1 | + | + | Tube - Swivel | |||||||
11 | 6C | 1 | 1 | + | + | Bolt - Tube - Swivel | |||||||
11 | 110A | 1 | 1 | + | + | Washer - Tube - Swivel | |||||||
11 | YUFN040F | 1 | 1 | + | + | Nut - Tube - Swivel | |||||||
12 | A065F0160Z | 1 | 1 | + | + | Tube - Link | |||||||
13 | A065F6000Z | 4 | 4 | + | + | Ball Joint | |||||||
14 | AUFN050FZ | 4 | 4 | + | + | Nut | |||||||
15 | A065F0164Z | 2 | 2 | + | + | Bolt | |||||||
15 | 211 | 2 | 2 | + | + | Nut | |||||||
16 | A074F0176Z | 1 | 1 | + | + | Link - Rear Longitudinal | |||||||
17 | A065F6000Z | 1 | 1 | + | + | Ball Joint | |||||||
18 | A065F0170Z | 2 | 2 | + | + | Spacer | |||||||
19 | A074F0179Z | 1 | 1 | + | + | Link - Location | |||||||
20 | X054F6003Z | 2 | 2 | + | + | Gromet | |||||||
20 | 13C | 1 | 1 | + | + | Bolt - Gromet | |||||||
20 | 118 | 2 | 2 | + | + | Washer - Gromet | |||||||
21 | A074F0178Z | 1 | 1 | + | + | Actuator - Gearbox | |||||||
22 | X046F6151Z | 1 | 1 | + | + | Pin - Tension | |||||||
23 | A065F6001Z | 1 | 1 | + | + | Ball Joint | |||||||
23 | 121 | 1 | 1 | + | + | Washer - Ball Joint to Link | |||||||
23 | 216 | 1 | 1 | + | + | Nut - Ball Joint to Link | |||||||
24 | A065F0170Z | 2 | 2 | + | + | Spacer | |||||||
24 | 26 | 1 | 1 | + | + | Bolt - Ball Joint to Actuator | |||||||
24 | 215 | 1 | 1 | + | + | Nut - Ball Joint to Actuator |
