LOTUS EUROPA TC/TCS PARTS MANUAL

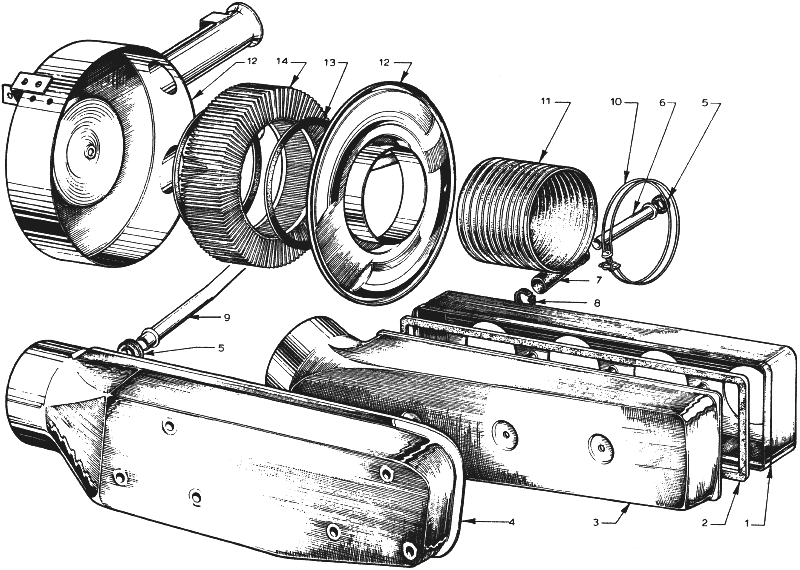

Section EJ -- Engine -- Airbox

Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (170K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
A094S0186Z      ++Backplate - airbox
A026S0016Z      ++Airbox Gasket
A074S0187Z      ++Airbox
16      ++Bolt - Airbox Securing
116      ++Washer - Shakeproof - Airbox Securing
A074S0112S        Assembly - Airbox
18A        Bolt - Assembly - Airbox
116        Washer - Shakeprooft - Assembly - Airbox
118        Washer - Plain - Assembly - Airbox
A026E0322A    ++Gromet - Breather Tube
X026S0052Z      ++Tube - Breather
X026S0054Z      ++Hose - Breather
X036S6020Z      ++Clip - Hose
Z026S0052Z        Tube - Breather
10 X036S6006Z      Clip - Airbox Hose
11 A074E0467Z      Airbox Hose (3 1/2 ins x 6 ins)
12 B026S0704W      Assembly - Air Cleaner
13 X036S6007Z      Ring - Sealing - Air Cleaner
14 X028S0020Z      Air Filter Element  - More Info -
14 B074E0196Z      Bracket - Air Cleaner to Luggage Compartment
