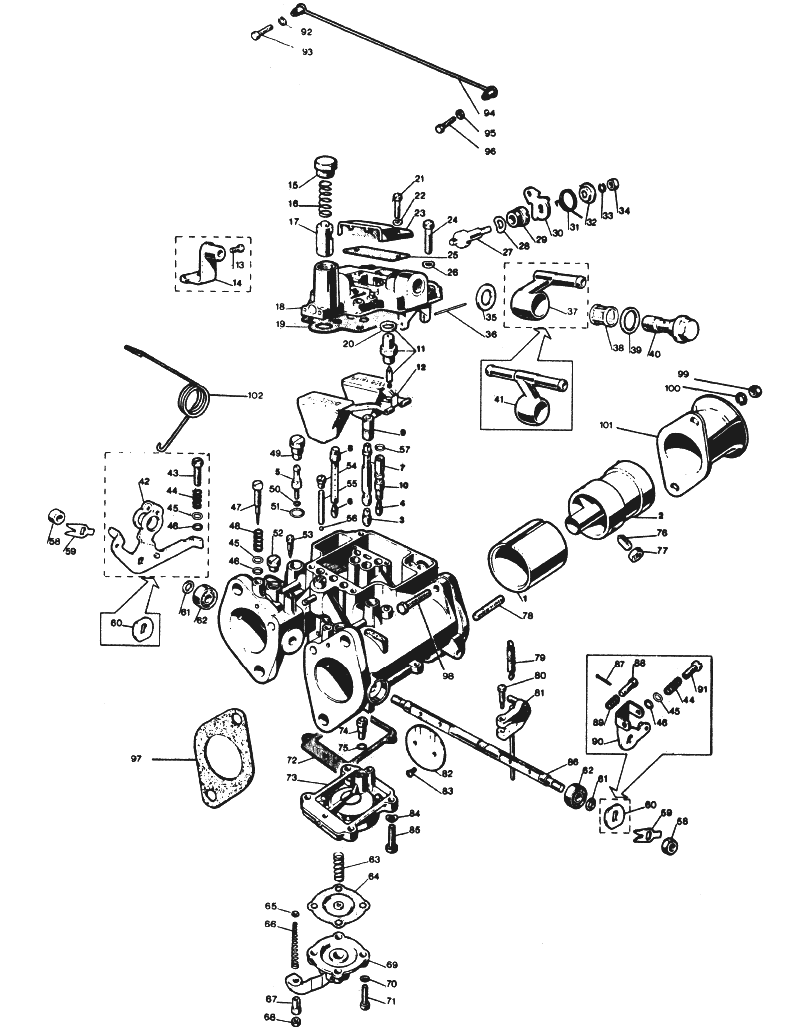

LOTUS EUROPA TC/TCS PARTS MANUALSection EG -- Engine -- Dellorto CarburetorLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (870K) |
Notes Bulletin Reference | |||||||||||||
1 | N026S0710W | 1 | + | Carburettor - Front | |||||||||
1 | N026S0711W | 1 | + | Carburettor - Rear | |||||||||
1 | P026S0710W | 1 | + | Carburettor - Front | |||||||||
1 | P026S0711W | 1 | + | Carburettor - Rear | |||||||||
1 | Q026S0710W | 1 | + | Carburettor - Front | |||||||||
1 | Q026S0711W | 1 | + | Carburettor - Rear | |||||||||
1 | R026S0710W | 1 | + | Carburettor - Front | |||||||||
1 | R026S0711W | 1 | + | Carburettor - Rear | |||||||||
1 | A074E6011Z | 4 | + | + | Choke - (30) | ||||||||
1 | A036E6040Z | 4 | + | Choke - (33) | |||||||||
1 | A036E6039Z | 4 | + | + | Choke - (32) | ||||||||
2 | A036E6059Z | 4 | 4 | Auxiliary Venturi | |||||||||
3 | A074E6013Z | 4 | Jet - Main (115) | ||||||||||
3 | A036E6042Z | 4 | 4 | Jet - Main (120) | European small valve and Domestic big valve engines | ||||||||
3 | A036E6043Z | Jet - Main (135) | |||||||||||
4 | A036E6048Z | Jet - Idling (50) | |||||||||||
4 | A074E6012Z | Jet - Idling (45) | |||||||||||
4 | A036E6047Z | Jet - Idling (47) | |||||||||||
5 | A074E6015Z | 4 | + | Jet - Pump (40) | |||||||||
5 | A036E6056Z | 4 | 4 | + | Jet - Pump (33) | ||||||||
5 | A036E6057Z | 4 | + | Jet - Pump (45) | |||||||||
6 | A036E6051Z | 2 | 2 | + | + | Jet - Starting (70) | |||||||
7 | A036E6053Z | 4 | + | Emulsion Tube - Main | |||||||||
7 | A036E6054Z | 4 | 4 | + | + | Emulsion Tube - Main | Not Domestic small valve engines | ||||||
8 | A036E6055Z | 2 | 2 | + | + | Emulsion Tube - Starting | |||||||
9 | A074E6014Z | 4 | + | Jet - Main Air Corrector (160) | |||||||||
9 | A036E6045Z | 4 | + | Jet - Main Air Corrector (130) | |||||||||
9 | A036E6044Z | 4 | 4 | + | Jet - Main Air Corrector (200) | ||||||||
10 | A036E6050Z | 4 | 4 | + | Jet - Idling Air Corrector | ||||||||
10 | A036E6049Z | 4 | 4 | + | Jet - Idling Air Corrector | ||||||||
11 | A036E6060Z | 2 | 2 | + | + | Needle Valve | |||||||
12 | A036E6061Z | 2 | 2 | + | Float Assembly | ||||||||
12 | A036E6062Z | 2 | 2 | + | Float Assembly | ||||||||
13 | A036E6063Z | 1 | 1 | + | + | Screw - Choke Cable | |||||||
14 | A036E6064Z | 1 | 1 | + | + | Support - Choke Cable | |||||||
15 | A036E6065Z | 2 | 2 | + | + | Plug - Starting Valve | |||||||
16 | A036E6066Z | 2 | 2 | + | + | Spring - Starting Valve | |||||||
17 | A036E6067Z | 2 | 2 | + | + | Starting Valve | |||||||
18 | A036E6068Z | 2 | 2 | + | + | Cover - Float Chamber | |||||||
19 | A036E6069Z | 2 | 2 | + | + | Float Chamber Cover Gasket | |||||||
20 | A036E6070Z | 2 | 2 | + | + | Needle Valve Gasket | |||||||
21 | A036E6071Z | 4 | 4 | + | + | Screw - Jet Cover | |||||||
22 | A036E6072Z | 4 | 4 | + | + | Washer - Spring | |||||||
23 | A036E6073Z | 2 | 2 | + | + | Cover - jet | |||||||
24 | A036E6074Z | 8 | 8 | + | + | Screw - Float Chamber Cover | |||||||
25 | A036E6075Z | 2 | 2 | + | + | Jet Cover Gasket | |||||||
26 | A036E6076Z | 8 | 8 | + | + | Washer - Spring - Float Chamber Cover | |||||||
27 | A036E6077Z | 2 | 2 | + | + | Control Shaft - Starting Valve | |||||||
28 | A036E6078Z | 2 | 2 | + | + | Washer - Spring | |||||||
29 | A036E6079Z | 2 | 2 | + | + | Plug - Control Shaft | |||||||
30 | A036E6080Z | 2 | 2 | + | + | Control Leverm Starting Valve | |||||||
31 | A036E6081Z | 2 | 2 | + | + | Return Spring | |||||||
32 | A036E6082Z | 2 | 2 | + | + | Bush - Return Spring | |||||||
33 | A036E6083Z | 2 | 2 | + | + | Washer - Spring | |||||||
34 | A036E6084Z | 2 | 2 | + | + | Nut | |||||||
35 | A036E6085Z | 2 | 2 | + | + | Banjo Union Gasket | |||||||
36 | A036E6086Z | 2 | 2 | + | + | Pin - Float Assembly | |||||||
37 | A036E6087Z | 1 | 1 | + | + | Union - Banjo (rear carb) | |||||||
38 | A036E6088Z | 2 | 2 | + | + | Filter | |||||||
39 | A036E6089Z | 2 | 2 | + | + | Banjo Plug Gasket | |||||||
40 | A036E6090Z | 2 | 2 | + | + | Plug - Banjo | |||||||
41 | A036E6091Z | 1 | 1 | + | + | Union - Banjo (front carb) | |||||||
42 | A036E6092Z | 1 | 1 | + | + | Lever - Throttle Control | |||||||
43 | A036E6093Z | 1 | 1 | + | + | Screw - Adjusting | |||||||
44 | A036E6094Z | 2 | 2 | + | + | Spring - Adjusting Screw | |||||||
45 | A036E6095Z | 4 | 4 | + | + | Washer - Plain | |||||||
46 | A036E6096Z | 4 | 4 | + | + | gasket | |||||||
47 | A036E6097Z | 4 | 4 | + | + | Screw - Idling Mixture | |||||||
48 | A036E6098Z | 4 | 4 | + | + | Spring - Idling Mixture | |||||||
49 | A036E6099Z | 4 | 4 | + | + | Plug - Pump Jet | |||||||
50 | A036E6100Z | 4 | 4 | + | + | Carburetter Gasket - Pump Jet - Small | |||||||
51 | A036E6101Z | 4 | 4 | + | + | Carburetter Gasket - Pump Jet - Large | |||||||
52 | A036E6102Z | 4 | 4 | + | + | Plug | |||||||
53 | A036E6103Z | 4 | 4 | + | + | Plug - Pressure Connection | |||||||
54 | A036E6104Z | 4 | 4 | + | + | Plug - Delivery Valve Seat | |||||||
55 | A036E6105Z | 4 | 4 | + | + | Stuffing - Delivery Valve | |||||||
56 | A036E6106Z | 4 | 4 | + | + | Outlet Valve | |||||||
57 | A036E6107Z | 4 | 4 | + | + | Carburetter Gasket | |||||||
58 | A036E6108Z | 4 | 4 | + | + | Nut | |||||||
59 | A036E6109Z | 4 | 4 | + | + | Plate - retaining | |||||||
60 | A036E6110Z | 1 | 1 | + | + | Spacer | |||||||
61 | A036E6111Z | 4 | 4 | + | + | Washer - Distance | |||||||
62 | A036E6112Z | 4 | 4 | + | + | Ball Bearing | |||||||
63 | A036E6113Z | 2 | 2 | + | + | Spring - Pump Diaghragm | |||||||
64 | A036E6114Z | 2 | 2 | + | + | Pump - Diaphragm | |||||||
65 | A036E6159Z | 2 | 2 | + | + | Washer | |||||||
66 | A036E6116Z | 2 | 2 | + | + | Spring - Pump Rod | |||||||
67 | A036E6117Z | 2 | 2 | + | + | Nut - Adjusting | |||||||
68 | A036E6118Z | 2 | 2 | + | + | Nut - Locking | |||||||
69 | A036E6160Z | 2 | 2 | + | + | Pump Cover | |||||||
70 | A036E6120Z | 8 | 8 | + | + | Washer - Spring | |||||||
71 | A036E6121Z | 8 | 8 | + | + | Screw - Pump Cover | |||||||
72 | A036E6122Z | 2 | 2 | + | + | Carburetter Gasket - Pump Body | |||||||
73 | A036E6123Z | 2 | 2 | + | + | Pump Body | |||||||
74 | A036E6124Z | 2 | 2 | + | + | Inlet Valve | |||||||
75 | A036E6125Z | 2 | 2 | + | + | Carburetter Gasket - Inlet Valve | |||||||
76 | A036E6161Z | 4 | 4 | + | + | Screw - Auxiliary Venturi Fixing | |||||||
77 | A036E6127Z | 4 | 4 | + | + | Nut - Fixing Screw | |||||||
78 | A036E6128Z | 4 | 4 | + | + | Stud | |||||||
79 | A036E6129Z | 2 | 2 | + | + | Spring - Throttle Shaft Return | |||||||
80 | A036E6130Z | 2 | 2 | + | + | Screw - Pump Control Lever | |||||||
81 | A036E6162Z | 2 | 2 | + | + | Rod - Lever and Pump Control | |||||||
82 | A036E6132Z | 4 | 4 | + | + | Throttle | |||||||
83 | A036E6133Z | 8 | 8 | + | + | Screw - throttle | |||||||
84 | A036E6134Z | 8 | 8 | + | + | Washer - Spring | |||||||
85 | A036E6135Z | 8 | 8 | + | + | Screw - Pump Body | |||||||
86 | A036E6136Z | 2 | 2 | + | + | Shaft - Throttle | |||||||
87 | A036E6137Z | 1 | 1 | + | + | Pin - Split | |||||||
88 | A036E6138Z | 1 | 1 | + | + | Pin - Control Lever | |||||||
89 | A036E6139Z | 1 | 1 | + | + | Spring - Pin | |||||||
90 | A036E6140Z | 1 | 1 | + | + | Control Lever | |||||||
91 | A036E6141Z | 1 | 1 | + | + | Screw - Control Lever | |||||||
92 | A036E6142Z | 1 | 1 | + | + | Washer - Spring | |||||||
93 | A036E6143Z | 1 | 1 | + | + | Screw - Fixing | |||||||
94 | A036E6144Z | 1 | 1 | + | + | Rod | |||||||
95 | A036E6145Z | 1 | 1 | + | + | Washer - Plain | |||||||
96 | A036E6146Z | 1 | 1 | + | + | Screw - Cable Securing | |||||||
97 | A036E6147Z | 4 | 4 | + | + | Carburetter Gasket | |||||||
98 | A036E6148Z | 8 | 8 | + | + | Screw - Horn Retaining | |||||||
99 | A036E6149Z | 8 | 8 | + | + | Nut | |||||||
100 | A036E6150Z | 8 | 8 | + | + | Washer - Spring | |||||||
101 | A036E6151Z | 4 | 4 | + | + | Air Horn | |||||||
102 | A074E0464Z | 1 | 1 | + | + | Spring - Throttle Return | |||||||
A036E6163 | 1 | 1 | Gasket Set | ||||||||||
p/o A036E6163 | Float Chamber Cover Gasket (1) p/o A036E6163 | ||||||||||||
p/o A036E6163 | Needle Valve Gasket (1) p/o A036E6163 | ||||||||||||
p/o A036E6163 | Jet Cover Gasket (1) p/o A036E6163 | ||||||||||||
p/o A036E6163 | Banjo Union Gasket (1) p/o A036E6163 | ||||||||||||
p/o A036E6163 | Bano Union Plug Gasket (1) p/o A036E6163 | ||||||||||||
p/o A036E6163 | Pump Jet Gasket (2) p/o A036E6163 | ||||||||||||
p/o A036E6163 | Pump Jet Plug Gasket (2) p/o A036E6163 | ||||||||||||
p/o A036E6163 | Idling Air Jet Gasket (2) p/o A036E6163 |
