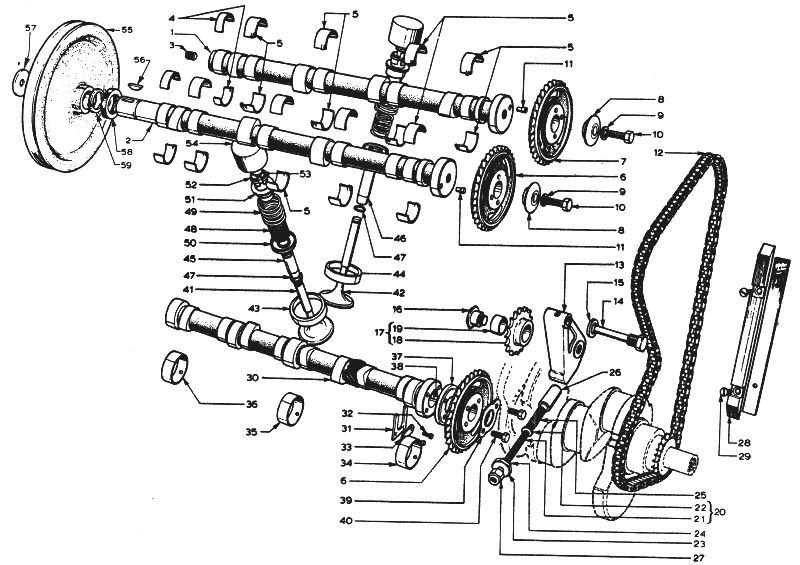

LOTUS EUROPA TC/TCS PARTS MANUALSection EF -- Engine -- Camshafts and ValvesLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (570K) |
Notes Bulletin Reference | |||||||||||||
1 | C026E0351Y | 1 | 1 | 1 | + | + | Camshaft (Exhaust) | ||||||
1 | D026E0351Y | 1 | + | + | Camshaft (Exhaust) | ||||||||
2 | C074E0351Y | 1 | 1 | 1 | + | + | Camshaft (Inlet) | ||||||
2 | D074E0351Y | 1 | + | + | Camshaft (Inlet) | ||||||||
3 | A026E6016Z | 1 | 1 | 1 | 1 | Plug | |||||||
4 | X026E0303Z | 4 | 4 | 4 | 4 | Bearing (Rear) | |||||||
5 | X026E0003Z | 16 | 16 | 16 | 16 | Bearing | |||||||
6 | A026E6024Z | 2 | 2 | 2 | 2 | Sproket (Inlet/Jackshaft) | |||||||
7 | X026E0305S | 1 | 1 | 1 | 1 | Sprocket (Exhaust) | |||||||
8 | X026E0016Z | 2 | 2 | 2 | 2 | Washer - Sprocket to Camshaft | |||||||
9 | X026E6094Z | 2 | 2 | 2 | 2 | Washer - Sprocket to Camshaft | |||||||
10 | X026E0304Z | 2 | 2 | 2 | 2 | Bolt - Sprocket to Camshaft | |||||||
11 | A026E6023Z | 2 | 2 | 2 | 2 | Dowel | |||||||
12 | X026E0007Z | 1 | 1 | 1 | 1 | Chain - Timing | |||||||
13 | X026E0012Z | 1 | 1 | 1 | 1 | Bracket - Chain Tensioner | |||||||
14 | X026E0011Z | 1 | 1 | 1 | 1 | Pin - Pivot | |||||||
15 | X026E0048Z | 1 | 1 | 1 | 1 | Washer | |||||||
16 | X026E0013Z | 1 | 1 | 1 | 1 | Pin | |||||||
17 | X026E707W | 1 | 1 | 1 | 1 | Assembly - Sprocket | Comprising: X026E0381Z & X026E0382Z | ||||||
18 | X026E0381Z | 1 | 1 | 1 | 1 | Pin - Assembly - Sprocket | |||||||
19 | X026E0382Z | 1 | 1 | 1 | 1 | Bush - Assembly - Sprocket | |||||||
20 | X026E0706W | 1 | 1 | 1 | 1 | Sub Assembly - Adjuster Screw | Comprising of X026E0008Z & A026E6098Z | ||||||
21 | X026E0008Z | 1 | 1 | 1 | 1 | Bolt - Adjustment - Adjuster Screw | |||||||
22 | A026E6098Z | 1 | 1 | 1 | 1 | Washer - Adjuster Screw | |||||||
23 | X026E0391Z | 1 | 1 | 1 | 1 | Nut Adjusting | |||||||
24 | X026E0292Z | 1 | 1 | 1 | 1 | Washer | |||||||
25 | X026E0009Z | 1 | 1 | 1 | 1 | Spring | |||||||
26 | X026E0010Z | 1 | 1 | 1 | 1 | Plunger | |||||||
27 | A036E6192Z | 1 | 1 | 1 | 1 | Nut | |||||||
28 | X026E0014Z | 1 | 1 | 1 | 1 | Guide - Chain | |||||||
29 | A026E6059Z | 2 | 2 | 2 | 2 | Screw - Securing | |||||||
30 | X026E0352Z | 1 | 1 | 1 | 1 | Jackshaft | |||||||
31 | A026E6063Z | 1 | 1 | 1 | 1 | Plate - Thrust | |||||||
32 | A026E6026Z | 2 | 2 | 2 | 2 | Bolt | |||||||
33 | A026E6037Z | 1 | 1 | 1 | 1 | Retainer - Bolt | |||||||
34 | A026E6193Z | 1 | 1 | 1 | 1 | Bearing (Front) | |||||||
35 | A036E6194Z | 1 | 1 | 1 | 1 | Bearing (Centre) | |||||||
36 | A036E6195Z | 1 | 1 | 1 | 1 | Bearing (Rear) | |||||||
37 | X026E0017Z | 1 | 1 | 1 | 1 | Adaptor | |||||||
38 | X026E0018Z | 1 | 1 | 1 | 1 | Dowel | |||||||
39 | X026E6025Z | 1 | 1 | 1 | 1 | Retainer | |||||||
40 | A026E6041Z | 2 | 2 | 2 | 2 | Bolt | |||||||
41 | A026E0019Y | 4 | + | + | Valve - Inlet | ||||||||
41 | B026E0019Y | 4 | 4 | 4 | + | + | Valve - Inlet | ||||||
42 | B026E0200Y | 4 | 4 | 4 | 4 | Valve - Exhaust | |||||||
43 | X026E0312Z | 4 | + | + | Insert - Inlet Valve Seat (Std) | ||||||||
43 | A026E0124Z | 4 | 4 | 4 | + | + | Insert - Inlet Valve Seat (Std) | ||||||
43 | A026E0312A | 4 | + | + | Insert - Inlet Valve Seat (0.005 ins. O/S) | ||||||||
43 | A026E0125Z | 4 | 4 | 4 | + | + | Insert - Inlet Valve Seat (0.005 ins. O/S) | ||||||
43 | A026E0312B | 4 | + | + | Insert - Inlet Valve Seat (0.010 ins. O/S) | ||||||||
43 | A026E0126Z | 4 | 4 | 4 | + | + | Insert - Inlet Valve Seat (0.010 ins. O/S) | ||||||
43 | A026E0312C | 4 | + | + | Insert - Inlet Valve Seat (0.015 ins. O/S) | ||||||||
43 | A026E0127Z | 4 | 4 | 4 | + | + | Insert - Inlet Valve Seat (0.015 ins. O/S) | ||||||
44 | A026E0313Z | 4 | 4 | 4 | 4 | Insert - Exhaust Valve Seat (Std) | |||||||
44 | AA026E0313 | 4 | 4 | 4 | 4 | Insert - Exhaust Valve Seat (0.005 ins. O/S) | |||||||
44 | A026E0313B | 4 | 4 | 4 | 4 | Insert - Exhaust Valve Seat (0.010 ins. O/S) | |||||||
44 | A026E0313C | 4 | 4 | 4 | 4 | Insert - Exhaust Valve Seat (0.015 ins. O/S) | |||||||
45 | A026E0314Z | 4 | 4 | 4 | 4 | Guide - Inlet Valve (Std) | |||||||
45 | A026E0314Z | 4 | 4 | 4 | 4 | Guide - Inlet Valve (0.001 ins. O/S) | |||||||
45 | A026E0314B | 4 | 4 | 4 | 4 | Guide - Inlet Valve (0.005 ins. O/S) | |||||||
45 | A026E0314C | 4 | 4 | 4 | 4 | Guide - Inlet Valve (0.006 ins. O/S) | |||||||
45 | A026E0314D | Guide - Inlet Valve (0.015 ins. O/S) | |||||||||||
45 | A026E0314E | Guide - Inlet Valve (0.030 ins. O/S) | |||||||||||
46 | A026E0315Z | Guide - Exhaust Valve (Std) | |||||||||||
46 | A026E0315A | Guide - Exhaust Valve (0.001 ins. O/S) | |||||||||||
46 | A026E0315B | Guide - Exhaust Valve (0.005 ins. O/S) | |||||||||||
46 | A026E0315C | Guide - Exhaust Valve (0.006 ins. O/S) | |||||||||||
46 | A026E0315D | Guide - Exhaust Valve (0.015 ins. O/S) | |||||||||||
46 | A026E0315E | Guide - Exhaust Valve (0.030 ins. O/S) | |||||||||||
47 | A026E6018Z | Circlip - Guide Valve | |||||||||||
48 | B026E0023Z | Spring - Valve Inner | |||||||||||
49 | B026E0022Z | Spring - Valve Outer | |||||||||||
50 | A026E0316Z | Seat - Valve Spring | |||||||||||
51 | A026E0021Z | Retainer - Valve Spring | |||||||||||
52 | A026E0045Z | Cone - Split | |||||||||||
53 | A026E6165Z | Shim - 0.065 ins. (As Required) | |||||||||||
53 | A026E6166Z | Shim - 0.066 ins. (As Required) | |||||||||||
53 | A026E6167Z | Shim - 0.067 ins. (As Required) | |||||||||||
53 | A026E6168Z | Shim - 0.068 ins. (As Required) | |||||||||||
53 | A026E6169Z | Shim - 0.069 ins. (As Required) | |||||||||||
53 | A026E6170Z | Shim - 0.070 ins. (As Required) | |||||||||||
53 | A026E6171Z | Shim - 0.071 ins. (As Required) | |||||||||||
53 | A026E6172Z | Shim - 0.072 ins. (As Required) | |||||||||||
53 | A026E6173Z | Shim - 0.073 ins. (As Required) | |||||||||||
53 | A026E6174Z | Shim - 0.074 ins. (As Required) | |||||||||||
53 | A026E6175Z | Shim - 0.075 ins. (As Required) | |||||||||||
53 | A026E6176Z | Shim - 0.076 ins. (As Required) | |||||||||||
53 | A026E6177Z | Shim - 0.077 ins. (As Required) | |||||||||||
53 | A026E6178Z | Shim - 0.078 ins. (As Required) | |||||||||||
53 | A026E6179Z | Shim - 0.079 ins. (As Required) | |||||||||||
53 | A026E6180Z | Shim - 0.080 ins. (As Required) | |||||||||||
53 | A026E6181Z | Shim - 0.081 ins. (As Required) | |||||||||||
53 | A026E6182Z | Shim - 0.082 ins. (As Required) | |||||||||||
53 | A026E6183Z | Shim - 0.083 ins. (As Required) | |||||||||||
53 | A026E6184Z | Shim - 0.084 Ins. (As Required) | |||||||||||
53 | A026E6185Z | Shim - 0.085 ins. (As Required) | |||||||||||
53 | A026E6186Z | Shim - 0.086 ins. (As Required) | |||||||||||
53 | A026E6187Z | Shim - 0.087 ins. (As Required) | |||||||||||
53 | A026E6188Z | Shim - 0.088 ins. (As Required) | |||||||||||
53 | A026E6189Z | Shim - 0.089 ins. (As Required) | |||||||||||
53 | A026E6190Z | Shim - 0.090 ins. (As Required) | |||||||||||
54 | X026E0042Z | 8 | 8 | 8 | 8 | Tappet | |||||||
55 | A074E0131Z | 1 | 1 | 1 | 1 | Pulley - Alternator | |||||||
56 | A074E6003Z | 1 | 1 | 1 | 1 | Key - Pulley | |||||||
57 | A05W1608 | 1 | 1 | 1 | 1 | Washer | |||||||
57 | 13 | 1 | 1 | 1 | 1 | Screw - Securing | |||||||
58 | A074E6001Z | 1 | 1 | 1 | 1 | Seal - Oil | |||||||
59 | A074E6002Z | 1 | 1 | 1 | 1 | Circlip |
