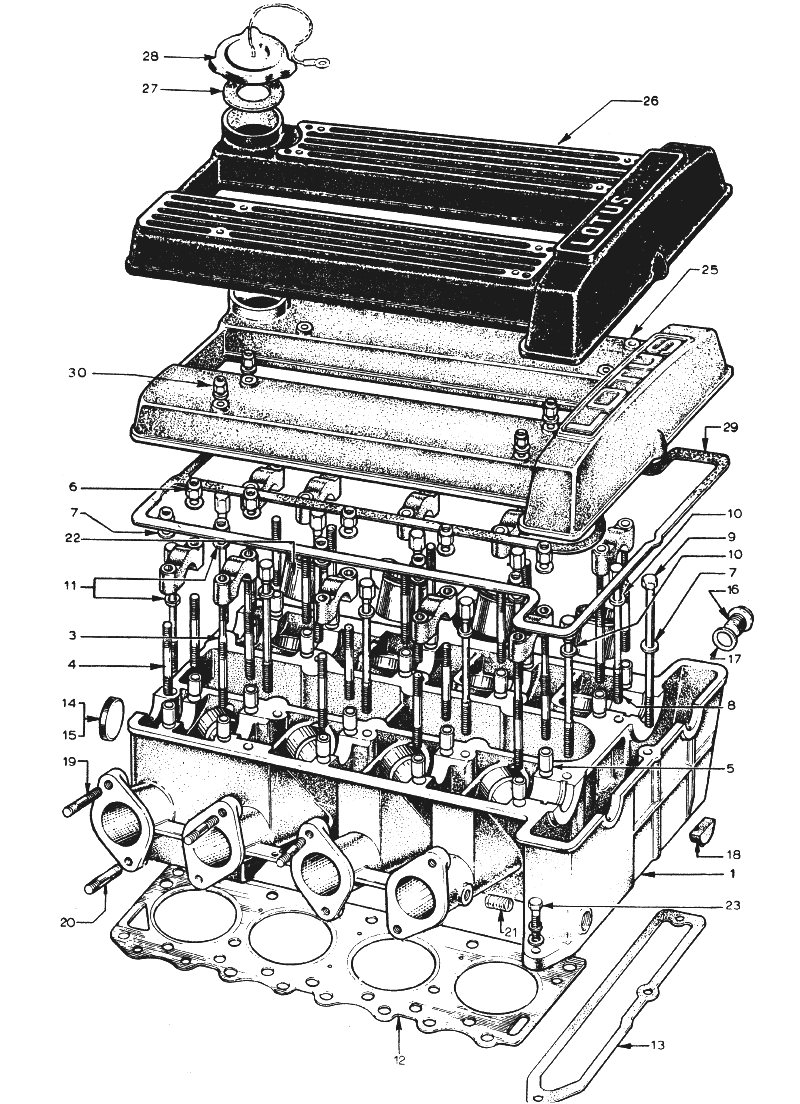

LOTUS EUROPA TC/TCS PARTS MANUALSection EE -- Engine -- Cylinder HeadLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (380K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | A074E0729S | 1 | + | + | Cylinder Head Assembly (less Camshafts - Tappets and Tappet Shims) | ||||||||
| 1 | E074E0729S | 1 | 1 | Cylinder Head Assembly (less Camshafts - Tappets and Tappet Shims) | |||||||||
| 1 | C074E0729S | 1 | + | + | Cylinder Head Assembly (less Camshafts - Tappets and Tappet Shims) | ||||||||
| 1 | A074E0703S | 1 | + | + | Cylinder Head Sub Assembly | Includes: Cylinder Head - Valve Inserts - Valve Guides - Bearing Caps | |||||||
| 1 | E074E0703S | 1 | 1 | Cylinder Head Sub Assembly | Includes: Cylinder Head - Valve Inserts - Valve Guides - Bearing Caps | ||||||||
| 1 | C074E0729S | 1 | + | + | Cylinder Head Sub Assembly | Includes: Cylinder Head - Valve Inserts - Valve Guides - Bearing Caps | |||||||
| 3 | A026E0318Z | 8 | 8 | 8 | 8 | Stud - Bearing Cap (Long) | |||||||
| 4 | A026E0319Z | 12 | 12 | 12 | 12 | Stud - Bearing Cap (Short) | |||||||
| 5 | X026E0320Z | 20 | 20 | 20 | 20 | Dowel Ringw | |||||||
| 6 | X036E6192Z | 20 | 20 | 20 | 20 | Nut | |||||||
| 7 | 118B | 20 | 20 | 20 | 20 | Washer | |||||||
| 8 | X026E0027A | 10 | 10 | 10 | 10 | Bolt - Cylinder Head | |||||||
| 9 | X026E0029Z | 1 | 1 | 1 | 1 | Bolt - Cylinder Head | |||||||
| 9 | X036M6243Z | 1 | 1 | 1 | 1 | Washer | |||||||
| 10 | X026E0028Z | 8 | 8 | 8 | 8 | Washer | |||||||
| 11 | X026E0031Z | 2 | 2 | 2 | 2 | Washer | |||||||
| 12 | X026E0026Z | 1 | 1 | 1 | 1 | Cylinder Head Gasket | |||||||
| 13 | X026E0032Z | 1 | 1 | 1 | 1 | Head and Timing Case Gasket | |||||||
| 14 | A026E6112Z | 4 | 4 | 4 | 4 | Plug - Expansion | |||||||
| 15 | A026E6122Z | 1 | 1 | 1 | 1 | Plug - Expansion | |||||||
| 16 | X026E0046Z | 1 | 1 | 1 | 1 | Plug - Transverse Oil Gallery | |||||||
| 17 | X026E0048Z | 1 | 1 | 1 | 1 | Washer - Plug | |||||||
| 18 | X026E0002Z | 4 | 4 | 4 | 4 | Plug - Camshaft Bore | |||||||
| 19 | A026E6027Z | 6 | 6 | + | + | Stud (Short) Carb to Cylinder Head | |||||||
| 20 | X026S0098Z | 2 | 2 | + | + | Stud (Long) Carb to Cylinder Head | |||||||
| 20 | 118 | 16 | 16 | + | + | Washer - Plain - Carb to Cylinder Head | |||||||
| 20 | 116B | 8 | 8 | + | + | Washer - Thackeray - Carb to Cylinder Head | |||||||
| 20 | 211 | 8 | 8 | Nut - Carb to Cylinder Head | |||||||||
| 20 | A036S0171Z | 8 | 8 | Stud - Secondary Throttle Body to Cylinder Head | |||||||||
| 20 | 118 | 8 | 8 | Washer - Plain - Secondary Throttle Body to Cylinder Head | |||||||||
| 20 | 211 | 8 | 8 | Nut - Secondary Throttle Body to Cylinder Head | |||||||||
| 21 | A026E6061Z | 1 | 1 | 1 | 1 | Plug - Vacuum Take-off Blanking | |||||||
| 22 | X026E0342Y | 8 | 8 | 8 | 8 | Sleeve - tappet | |||||||
| 23 | XUCB0516 | 1 | 1 | 1 | 1 | Bolt - Head to Timing Case | |||||||
| 23 | 115 | 1 | 1 | 1 | 1 | Washer - Spring - Head to Timing Case | |||||||
| 23 | 118 | 1 | 1 | 1 | 1 | Washer - Plain - Head to Timing Case | |||||||
| 25 | A074E0702Z | 1 | + | + | Cover Assembly - Camshaft (Red) | Comprises: Cover Camshaft - Cap - Oil Filter - Gasket | |||||||
| 26 | B074E0702Z | 1 | Cover Assembly - Camshaft (Red BV) | Comprises: Cover Camshaft - Cap - Oil Filter - Gasket | |||||||||
| 26 | C074E0702Z | 1 | 1 | + | + | Cover Assembly - Camshaft (Black BV) | Comprises: Cover Camshaft - Cap - Oil Filter - Gasket | ||||||
| 28 | A026E0415Z | 1 | 1 | 1 | 1 | Oil Filler Cap | |||||||
| 27 | A026E0325Z | 1 | 1 | 1 | 1 | Oil Filler Gasket | |||||||
| 29 | A026E0001Z | 1 | 1 | 1 | 1 | Camshaft Cover Gasket | |||||||
| 30 | 208 | 8 | 8 | 8 | 8 | Nut - Camshaft Cover | |||||||
| 30 | A074E6009Z | 8 | 8 | 8 | 8 | Washer - Camshaft Cover |
