LOTUS EUROPA TC/TCS PARTS MANUALSection ED -- Engine -- Water PumpLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (105K) |
Notes Bulletin Reference | |||||||||||||

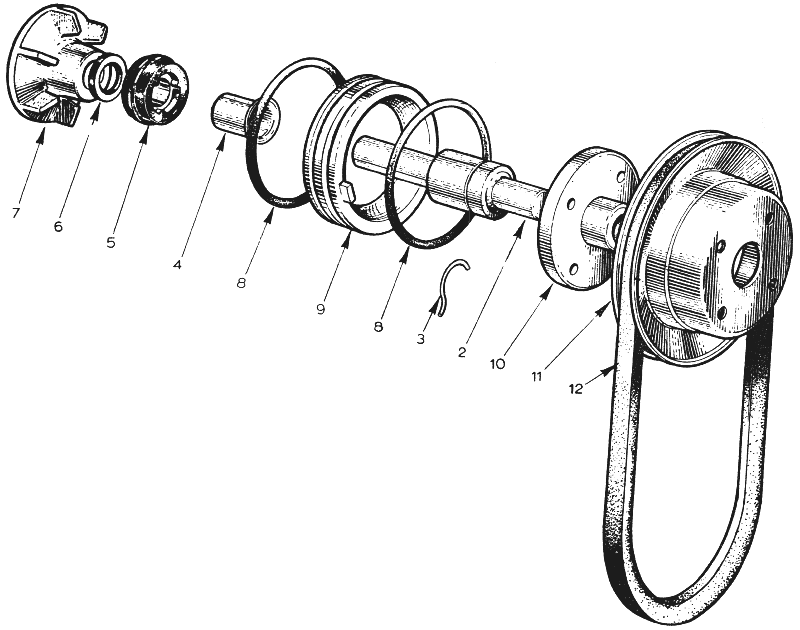

1 | A026E6000W | 1 | 1 | 1 | 1 | Kit - Water Pump Repair | |||||||
2 | A026E6049W | 1 | 1 | 1 | 1 | Shaft - p/o Kit - Water Pump Repair | |||||||
3 | A036E6188Z | 1 | 1 | 1 | 1 | Retainer - p/o Kit - Water Pump Repair | |||||||
4 | A026E6020Z | 1 | 1 | 1 | 1 | Slinger - p/o Kit - Water Pump Repair | |||||||
5 | A026E0393Z | 1 | 1 | 1 | 1 | Seal - p/o Kit - Water Pump Repair | |||||||
6 | A026E6127Z | 1 | 1 | 1 | 1 | Disc - p/o Kit - Water Pump Repair | |||||||
7 | A026E6126Z | 1 | 1 | 1 | 1 | Inpeller - p/o Kit - Water Pump Repair | |||||||
8 | X026E6002Z | 2 | 2 | 2 | 2 | O Ring - p/o Kit - Water Pump Repair | |||||||
9 | X026E0362Y | 1 | 1 | 1 | 1 | Insert - p/o Kit - Water Pump Repair | |||||||
10 | A036E6169Z | 1 | 1 | 1 | 1 | Hub - p/o Kit - Water Pump Repair | |||||||
10 | A036E6006Z | 4 | 4 | 4 | 4 | Bolt - Attaching | |||||||
10 | A036E6190Z | 4 | 4 | 4 | 4 | Washer | |||||||
11 | A03SE6191Z | 1 | 1 | 1 | 1 | Pulley | |||||||
12 | A074E6005Z | 1 | 1 | 1 | 1 | Drive Belt - Water Pump |
