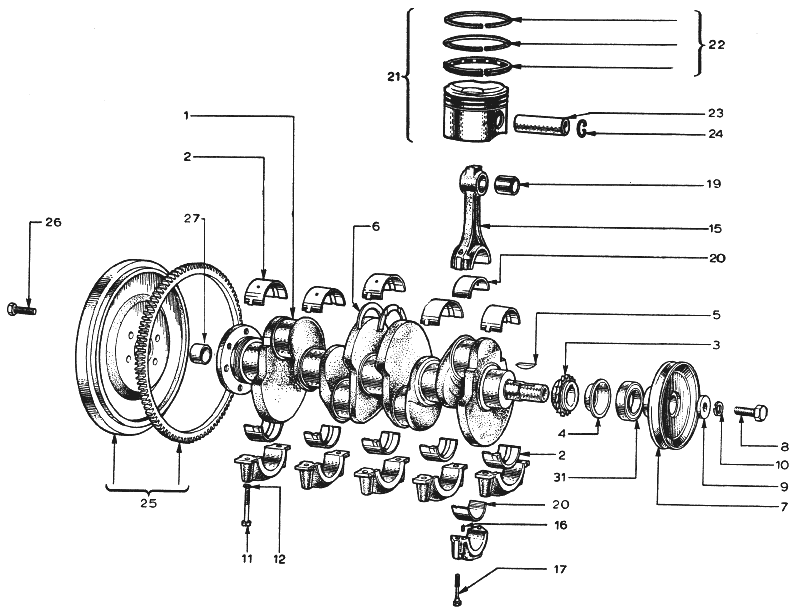

LOTUS EUROPA TC/TCS PARTS MANUALSection EB -- Engine -- Pistons, Rods and CrankLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (235K) |
Notes Bulletin Reference | |||||||||||||
1 | B026E0330Z | 1 | 1 | 1 | 1 | Crankshaft | |||||||
2 | X026E0336Z | 10 | 10 | 10 | 10 | Liner - Main Bearing (Std) | |||||||
2 | A026E0336Z | 10 | 10 | 10 | 10 | Liner - Main Bearing (0.010 ins. U/S) | |||||||
2 | B026E0336Z | 10 | 10 | 10 | 10 | Liner - Main Bearing 0.020 ins. U/S) | |||||||
3 | X026E0015Z | 1 | 1 | 1 | 1 | Sprocket - Crankshaft | |||||||
4 | X026E0326A | 1 | 1 | 1 | 1 | Slinger - Oil | |||||||
5 | A026E6033Z | 1 | 1 | 1 | 1 | Key - sprocket | |||||||
6 | A026E6035Z | Washer. Main Bearing Thrust (Std) (As Required) | |||||||||||
6 | A036E6218Z | Washer. Main Bearing Thrust (0.025 ins. O/S) (As Required) | |||||||||||
7 | X026E0331Y | 1 | 1 | 1 | 1 | Pulley - Crankshaft | |||||||
8 | A026E6044Z | 1 | 1 | 1 | 1 | Bolt - Pulley Attaching | |||||||
9 | A036E6071Z | 1 | 1 | 1 | 1 | Washer | |||||||
10 | A026E6055Z | 1 | 1 | 1 | 1 | Lockwasher | |||||||
11 | A036E6172Z | 10 | 10 | 10 | 10 | Bolt - Main Bearing Cap | |||||||
12 | A036E6173Z | 10 | 10 | 10 | 10 | Lockwasher | |||||||
12 | A026E6714S | 4 | 4 | 4 | 4 | Assembly - Connecting Rod | |||||||
15 | C026E0340Z | 4 | 4 | 4 | 4 | Rod - Connecting - p/o Assembly - Connecting Rod | |||||||
16 | A036E6174Z | 8 | 8 | 8 | 8 | Pin - Dowel - p/o Assembly - Connecting Rod | |||||||
17 | A036E6175Z | 8 | 8 | 8 | 8 | Bolt - Connecting Rod - p/o Assembly - Connecting Rod | |||||||
19 | A036E6176Z | 4 | 4 | 4 | 4 | Bush - p/o Assembly - Connecting Rod | |||||||
20 | A026E2029Z | 8 | 8 | 8 | 8 | Liner - Connecting Rod Bearing | |||||||
20 | A026E0715S | 1 | 1 | 1 | 1 | Kit - Rod Bearing Liner (Std) | |||||||
20 | A026E0735S | 1 | 1 | 1 | 1 | Kit - Rod Bearing Liner (0.010 ins O/S) | |||||||
20 | A026E0736S | 1 | 1 | 1 | 1 | Kit - Rod Bearing Liner (0.020 ins O/S) | |||||||
21 | C026E0712A | 4 | 4 | 4 | 4 | Assembly - Piston - Grade I (Std) | 82.474 mm.-3.2470 ins. 82.466 mm.-3.2467 ins. | ||||||
21 | C026E0712B | 4 | 4 | 4 | 4 | Assembly - Piston - Grade II (Std) | 82.481 mm.-3.2473 ins. 82.474 mm.-3.2470 ins. | ||||||
21 | C026E0712C | 4 | 4 | 4 | 4 | Assembly - Piston - Grade III (Std) | 82.489 mm.-3.2476 ins. 82.481 mm.-3.2473 ins. | ||||||
21 | C026E0712D | 4 | 4 | 4 | 4 | Assembly - Piston - Grade IV (Std) | 82.497 mm.-3.2479 ins. 82.489 mm.-3.2476 ins. | ||||||
21 | C026E0732A | 4 | 4 | 4 | 4 | Assembly - Piston - Grade I (0.015 ins. O/S) | 82.855 mm.-3.2620 ins. 82.847 mm.-3.2617 | ||||||
21 | C026E0732B | 4 | 4 | 4 | 4 | Assembly - Piston - Grade II (0.015 ins. O/S) | 82.862 mm.-3.2623 ins. 82.855 mm.-3.2620 | ||||||
21 | C026E0732C | 4 | 4 | 4 | 4 | Assembly - Piston - Grade III (0.015 ins. O/S) | 82.870 mm.-3.2626 ins. 82.862 mm.-3.2623 | ||||||
21 | C026E0732D | 4 | 4 | 4 | 4 | Assembly - Piston - Grade IV (0.015 ins. O/S) | 82.878 mm.-3.2629 ins. 82.870 mm.-3.2626 | ||||||
22 | X026E0733W | 4 | 4 | 4 | 4 | Set - Piston Rings (Std) | |||||||
22 | A026E0733W | 4 | 4 | 4 | 4 | Set - Piston Rings (0.015 ins. O/S) | |||||||
22 | X026E6003Z | Set - Oil Control Ring (Std) (As Required) | |||||||||||
22 | X026E6004Z | Set - Oil Control Ring (0.015 ins. O/S) (As Required) | |||||||||||
23 | X026E0405Y | 4 | 4 | 4 | 4 | Pin - Piston | |||||||
24 | A036E6177Z | 8 | 8 | 8 | 8 | Retainer - Pin | |||||||
25 | A026E0717W | 1 | 1 | 1 | 1 | Assembly - Flywheel | |||||||
26 | A026E6062Z | 6 | 6 | 6 | 6 | Bolt - Flywheel Securing | |||||||
26 | A026E6104Z | 1 | 1 | 1 | 1 | Pin - Dowel | |||||||
27 | A074E0137Z | 1 | 1 | 1 | 1 | Bearing - Clutch Spigot | |||||||
31 | A026E6022Z | 1 | 1 | 1 | 1 | Front Crank Seal |
