LOTUS EUROPA TC/TCS PARTS MANUALSection EA -- Engine -- BlockLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (575K) |

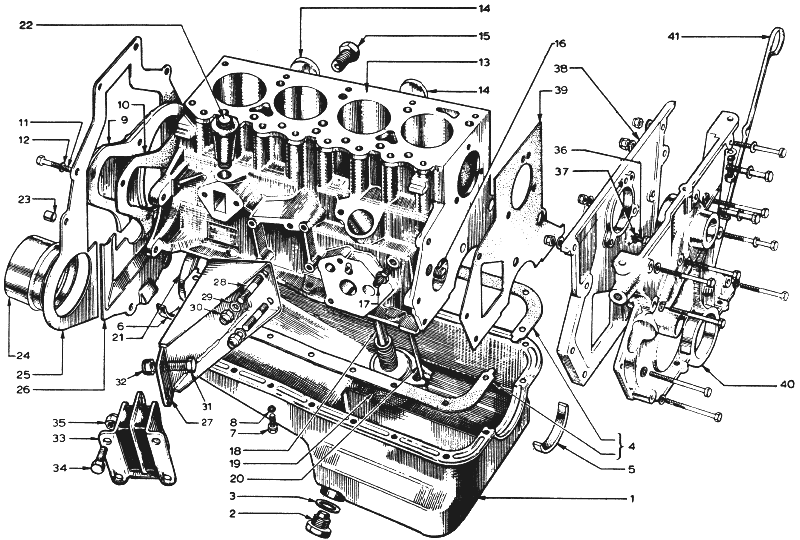

Notes Bulletin Reference | |||||||||||||
1 | V026E0701W | 1 | + | Engine Assembly | |||||||||
1 | Y026E0701W | 1 | + | Engine Assembly | |||||||||
1 | R026E0701W | 1 | + | Engine Assembly | |||||||||
1 | Z026E0701W | 1 | + | Engine Assembly | |||||||||
1 | S026E0701W | 1 | 1 | Engine Assembly | |||||||||
1 | S026E0701W | 1 | 1 | 1 | 1 | Short Engine Assembly | |||||||
1 | C046E0708S | 1 | 1 | 1 | 1 | Cylinger Block - Short Engine Assembly | |||||||
1 | X026E0384Z | 1 | 1 | 1 | 1 | Retainer - Short Engine Assembly | |||||||
1 | A026E6032Z | 1 | 1 | 1 | 1 | Plug - Water Drain - Short Engine Assembly | |||||||
1 | A026E6031Z | 2 | 2 | 2 | 2 | Plug Oil Gallery - Short Engine Assembly | |||||||
1 | B026E0330Z | 1 | 1 | 1 | 1 | Crankshaft - Short Engine Assembly | |||||||
1 | X026E0015Z | 1 | 1 | 1 | 1 | Sprocket - Crankshaft - Short Engine Assembly | |||||||
1 | C026E0340W | 4 | 4 | 4 | 4 | Rod - Connecting - Short Engine Assembly | |||||||
1 | C026E0712A | 4 | 4 | 4 | 4 | Piston Assembly - Short Engine Assembly | |||||||
1 | X026E0352Z | 1 | 1 | 1 | 1 | Jackshaft - Short Engine Assembly | |||||||
1 | A026E6083Z | 1 | 1 | 1 | 1 | Oil Sump | |||||||
2 | A036E6164Z | 1 | 1 | 1 | 1 | Oil Sump Drain Plug | |||||||
3 | A036E6156Z | 1 | 1 | 1 | 1 | Washer - Oil Sump Drain Plug | |||||||
4 | A026E6085Z | 1 | 1 | 1 | 1 | Oil Sump L/H Gasket | |||||||
4 | A026E6084Z | 1 | 1 | 1 | 1 | Oil Sump R/H Gasket | |||||||
5 | A026E6082Z | 1 | 1 | 1 | 1 | Seal - Oil Sump - Front | |||||||
6 | A026E6086Z | 1 | 1 | 1 | 1 | Seal - Oil Sump - Rear | |||||||
7 | A026E6064Z | 18 | 18 | 18 | 18 | Bolt - Oil Sump to Cylinder Block | |||||||
8 | A026E6117Z | 18 | 18 | 18 | 18 | Washer - Oil Sump to Cylinder Block | |||||||
9 | X026E0384Z | 1 | 1 | 1 | 1 | Retainer - Rear Oil Seal | |||||||
10 | X026X0387Z | 1 | 1 | 1 | 1 | Rear Oil Seal Retainer Gasket | |||||||
11 | A026E6047Z | 4 | 4 | 4 | 4 | Bolt - Rear Oil Seal Retainer | |||||||
12 | A026E6091Z | 4 | 4 | 4 | 4 | Washer - Rear Oil Seal Retainer | |||||||
13 | C026E0708S | 1 | 1 | 1 | 1 | Cylinder Block | |||||||
14 | A026E6090Z | 3 | 3 | 3 | 3 | Plug - Water Jacket | |||||||
15 | A026E6032Z | 1 | 1 | 1 | 1 | Plug - Water Drain | |||||||
16 | A026E6031Z | 2 | 2 | 2 | 2 | Plug - Oil gallery | |||||||
17 | A036E6167Z | 1 | 1 | 1 | 1 | Oil Pressure Tube Adaptor | |||||||
18 | A026E6089W | 1 | 1 | 1 | 1 | Tube - Oil Intake | |||||||
19 | A026E6088W | 1 | 1 | 1 | 1 | Screen Assembly - Oil Pump | |||||||
20 | A026E6087W | 1 | 1 | 1 | 1 | Tube - Return | |||||||
21 | A036E6166Z | 1 | 1 | 1 | 1 | Crankshaft Seal - Rear | |||||||
22 | X026E0034Z | 1 | 1 | 1 | 1 | Connector - Cylinder Block Breather | |||||||
23 | A026E6106Z | 2 | 2 | 2 | 2 | Dowel Pin - Block to Clutch Housing | |||||||
24 | A026E6125Z | 1 | 1 | 1 | 1 | Cover - Starter Motor Drive | |||||||
25 | A026E6018Z | 1 | 1 | 1 | 1 | Cover - Flywheel - Upper | |||||||
26 | A036E6168Z | 1 | 1 | 1 | 1 | Cover - Flywheel - Lower | |||||||
27 | C074E0481Z | 1 | 1 | 1 | 1 | Bracket - Engine Mounting L/H | |||||||
27 | C074E0480Z | 1 | 1 | 1 | 1 | Bracket - Engine Mounting R/H | |||||||
28 | A074E0490Z | 8 | 8 | 8 | 8 | Stud - Mounting bracket | |||||||
29 | 118 | 8 | 8 | 8 | 8 | Washer - Plain | |||||||
30 | A074E6016Z | 8 | 8 | 8 | 8 | Nut | |||||||
31 | A036E6169Z | 4 | 4 | 4 | 4 | Bolt - Bracket to Engine Mounting | |||||||
32 | 214 | 4 | 4 | 4 | 4 | Nut - Bracket to Engine Mounting | |||||||
33 | A074E0549Z | 2 | 2 | 2 | 2 | Engine Mounting | |||||||
34 | 10 | 8 | 8 | 8 | 8 | Bolt - Engine Mounting | |||||||
35 | 221 | 8 | 8 | 8 | 8 | Nut - Engine Mounting | |||||||
36 | A026E6045Z | 1 | 1 | 1 | 1 | Set screw | |||||||
37 | A036E6170Z | 1 | 1 | 1 | 1 | Washer | |||||||
38 | X026E0004Z | 1 | 1 | 1 | 1 | Backplate - Timing Case | |||||||
39 | X026E0005Z | 1 | 1 | 1 | 1 | Backplate - Timing Case Gasket | |||||||
39 | A074E0705W | 1 | 1 | 1 | 1 | Cover Assembly - Timing Case | Comprising: 1 of A026E6000W and 1 of X026E0041Z | ||||||
40 | A074E0361Y | 1 | 1 | 1 | 1 | Cover - Timing Case | |||||||
40 | X026E0734W | 1 | 1 | 1 | 1 | Cover - Timing Case - c/w Oil Tube | |||||||
40 | A026E6030Z | 1 | 1 | 1 | 1 | Tube - Oil | |||||||
40 | A074E6004Z | 1 | 1 | 1 | 1 | Plug - Pressure | |||||||
40 | 12 | 1 | 1 | 1 | 1 | Set Screw - Timing Case to Head | |||||||
40 | 15 | 1 | 1 | 1 | 1 | Washer Spring - Timing Case to Head | |||||||
40 | 118 | 1 | 1 | 1 | 1 | Washer Plain - Timing Case to Head | |||||||
40 | A026E6057Z | 6 | 6 | 6 | 6 | Bolt 1/4 ins. UNC X 2 1/4 ins. - Timing Case to Block | |||||||
40 | 107 | 6 | 6 | 6 | 6 | Washer - Spring - Timing Case to Block | |||||||
40 | 6BL | 3 | 3 | 3 | 3 | Bolt - Timing Case to Block | |||||||
40 | A026E6050Z | 6 | 6 | 6 | 6 | Washer - Plain - Timing Case to Block | |||||||
40 | 208 | 3 | 3 | 3 | 3 | Nut - Timing Case to Block | |||||||
40 | A026E6121Z | 1 | 1 | 1 | 1 | Bolt - 5/16 ins. UNC x 2 1/4 ins. - Timing Case to Block | |||||||
40 | 115 | 1 | 1 | 1 | 1 | Washer - Spring - Timing Case to Block | |||||||
40 | 178 | 1 | 1 | 1 | 1 | Bolt Timing Case to Block | |||||||
40 | 118 | 1 | 1 | 1 | 1 | Washer - Plain Timing Case to Block | |||||||
40 | 213 | 1 | 1 | 1 | 1 | Nut Timing Case to Block | |||||||
41 | A026E0383B | 1 | 1 | 1 | 1 | Dip Stick | - More Info - |
