LOTUS EUROPA TC/TCS PARTS MANUALSection DA -- Suspension -- RearLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (425K) |

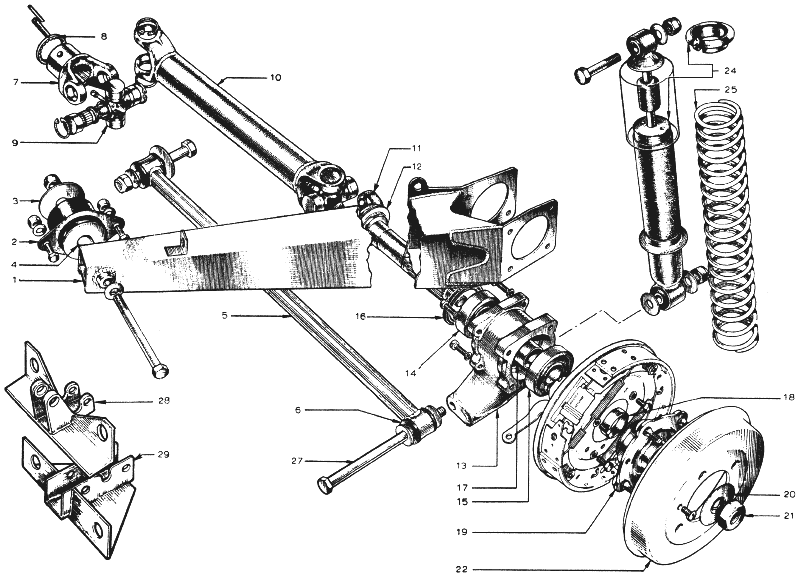

Notes Bulletin Reference | |||||||||||||
1 | A074D0197Z | 1 | 1 | + | + | Arm - Radius L/H | |||||||
1 | A074D0217Z | 1 | 1 | + | + | Arm - Radius L/H | |||||||
1 | A074D0198Z | 1 | 1 | + | + | Arm - Radius R/H | |||||||
1 | A074D0216Z | 1 | 1 | + | + | Arm - Radius R/H | |||||||
2 | X046D6000Z | 2 | 2 | 2 | 2 | Resilient Mounting (Metalastic) | |||||||
2 | 36A | 2 | 2 | 2 | 2 | Bolt - Mounting to Arm | |||||||
2 | 128 | 2 | 2 | 2 | 2 | Washer - Mounting to Arm | |||||||
3 | A07W3212 | 2 | 2 | 2 | 2 | Washer - Mounting to Arm | |||||||
3 | 216 | 2 | 2 | 2 | 2 | Nut - Mounting to Arm | |||||||
3 | 13 | 4 | 4 | 4 | 4 | Bolt - Mounting to Chassis | |||||||
3 | 119 | 4 | 4 | 4 | 4 | Washer - Mounting to Chassis | |||||||
3 | 211 | 4 | 4 | 4 | 4 | Nut - Mounting to Chassis | |||||||
4 | A074D0205Z | Shim - Radius Arm 1/8 ins. (As Required) | |||||||||||
4 | A074D0206Z | Shim - Radius Arm 1/16 ins. (As Required) | |||||||||||
5 | B074D0195Z | 2 | 2 | 2 | 2 | Link - Lower | |||||||
6 | A074D6002Z | 4 | 4 | 4 | 4 | Bush - Lower Link | |||||||
6 | 37 | 2 | 2 | 2 | 2 | Bolt - Lower Link to Gearbox | |||||||
6 | 128F | 4 | 4 | 4 | 4 | Washer - Lower Link to Gearbox | |||||||
6 | 219 | 2 | 2 | 2 | 2 | Nut - Lower Link to Gearbox | |||||||
6 | A074D0756W | 2 | 2 | + | + | Assembly - Drive Shaft (Use with Type 336 Gearbox) | |||||||
6 | A074D0749W | 2 | 2 | 2 | 2 | Assembly - Drive Shaft (Use with Type 352/365 Gearboxes) | |||||||
7 | A074D6006Z | 2 | 2 | + | + | Yoke (For A074D0756W) | |||||||
7 | A074D6010Z | 2 | 2 | 2 | 2 | Yoke (For A074D0749W) | |||||||
9 | A074D6008Z | 4 | 4 | 4 | 4 | Universal Joint (For A074D0756W and A074D0749W) | - More Info - | ||||||
10 | A074D6004Z | 2 | 2 | 2 | 2 | Shaft - Inboard Drive (For A074D0756W and A074D0749W) | |||||||
11 | A074D6005Z | 2 | 2 | 2 | 2 | Outboard Drive Shaft (Rear Stub Axle) (For A074D0756W and A074D0749W) | - More Info - | ||||||
12 | A074D0196Z | 2 | 2 | 2 | 2 | Flinger (For A074D0756W and A074D0749W) | |||||||
8 | X046R0022Z | Spacer Ring (0.405 ins. Undersize) (As Required) | |||||||||||
8 | X046R0023Z | Spacer Ring (0.410 ins. Undersize) (As Required) | |||||||||||
8 | X046R0024Z | Spacer Ring (1st Oversize) (As Required) | |||||||||||
8 | X046R0025Z | Spacer Ring (2nd Oversize 0.420 ins) (As Required) | |||||||||||
8 | X046R0026Z | Spacer Ring (3rd Oversize) (As Required) | |||||||||||
8 | A054D0187Z | Shim (0.005 ins) (As Required) | |||||||||||
8 | A054D0188Z | Shim (0.015 ins) (As Required) | |||||||||||
8 | X046R6000Z | 2 | 2 | Tension Pin - Outer - Dive Shaft to Gearbox | |||||||||
8 | X046R6001Z | 2 | 2 | Tension Pin - Inner - Drive Shaft to Final Drive | |||||||||
8 | A074F6013Z | 2 | 2 | 2 | 2 | Pin - Drive Shaft to Gearbox | Use on A074D0749W) | ||||||
13 | B074D0193Z | 1 | 1 | + | + | Housing - Wheel Bearing L/H | |||||||
13 | E074D0193Z | 1 | 1 | + | + | Housing - Wheel Bearing - R/H | |||||||
13 | B074D0194Z | 1 | 1 | + | + | Housing - Wheel Bearing - R/H | |||||||
13 | E074D0194Z | 1 | 1 | + | + | Housing - Wheel Bearing - R/H | |||||||
13 | 10 | 8 | 8 | 8 | 8 | Setscrew - Attaching - Housing - Wheel Bearing | |||||||
13 | 116 | 8 | 8 | 8 | 8 | Washer - Attaching - Housing - Wheel Bearing | |||||||
14 | A074D6001Z | 2 | 2 | + | + | Wheel Bearing Rear Inner | - More Info - | ||||||
14 | X036D6017Z | 2 | 2 | + | + | Wheel Bearing Rear Inner | - More Info - | ||||||
15 | X036D6017Z | 2 | 2 | 2 | 2 | Wheel Bearing Rear Outer | - More Info - | ||||||
16 | A074D6000Z | 2 | 2 | + | + | Seal - Wheel Bearing | |||||||
16 | A074D6009Z | 2 | 2 | + | + | Seal - Wheel Bearing | |||||||
17 | X046D0148Z | 2 | 2 | + | + | Spacer - Wheel Bearing to Wheel Bearing | - More Info - | ||||||
17 | A074D0215Z | 2 | 2 | + | + | Spacer - Wheel Bearing to Wheel Bearing | - More Info - | ||||||
18 | A074D0208Z | 2 | 2 | 2 | 2 | Spacer - Hub | |||||||
19 | A046D0007Y | 2 | 2 | + | + | Hub | |||||||
19 | A074D0214Y | 2 | 2 | + | + | Hub | |||||||
20 | X046D6006Z | 2 | 2 | 2 | 2 | Washer - Hub Retaining | |||||||
21 | X046D6007Z | 2 | 2 | 2 | 2 | Hub Retaining Nut | |||||||
22 | X046J6023Z | 2 | 2 | + | + | Brake Drum | |||||||
22 | A074J6036Z | 2 | 2 | + | + | Brake Drum | |||||||
22 | KUFS0408 | 1 | 1 | 1 | 1 | Brake Drum to Hub Attaching Screw | |||||||
22 | X036D6002Z | 8 | 8 | 8 | 8 | Wheel Stud | Thread: 3/8-24, Knurl Dia.: .519", Length: 1.237", Shoulder Length: .455" - More Info - | ||||||
22 | D074D0757W | 2 | 2 | 2 | 2 | Assembly - Damper/Spring | |||||||
24 | A074D6007W | 2 | 2 | 2 | 2 | Damper Assembly - Assembly - Damper/Spring | |||||||
25 | B026C0010A | 2 | 2 | 2 | 2 | Spring - Assembly - Damper/Spring | - More Info - | ||||||
27 | A074D0209Z | 2 | 2 | 2 | 2 | Bolt - Damper/Lower Link to Housing | |||||||
27 | 129 | 4 | 4 | 4 | 4 | Washer - Damper/Lower Link to Housing | |||||||
27 | 12BF | 4 | 4 | 4 | 4 | Washer - Damper/Lower Link to Housing | |||||||
27 | 219 | 2 | 2 | 2 | 2 | Nut - Damper/Lower Link to Housing | |||||||
27 | 37 | 2 | 2 | 2 | 2 | Bolt - Damper to Cross Beam | |||||||
27 | 129 | 2 | 2 | 2 | 2 | Washer - Damper to Cross Beam | |||||||
27 | 219 | 2 | 2 | 2 | 2 | Nut - Damper to Cross Beam | |||||||
28 | C074A0721W | 1 | 1 | 1 | 1 | Mounting - Lower Link to Type 352/365 Gearbox | |||||||
29 | B074A0716W | 1 | 1 | + | + | Mounting - Lower Link to Type 336 Gearbox |
