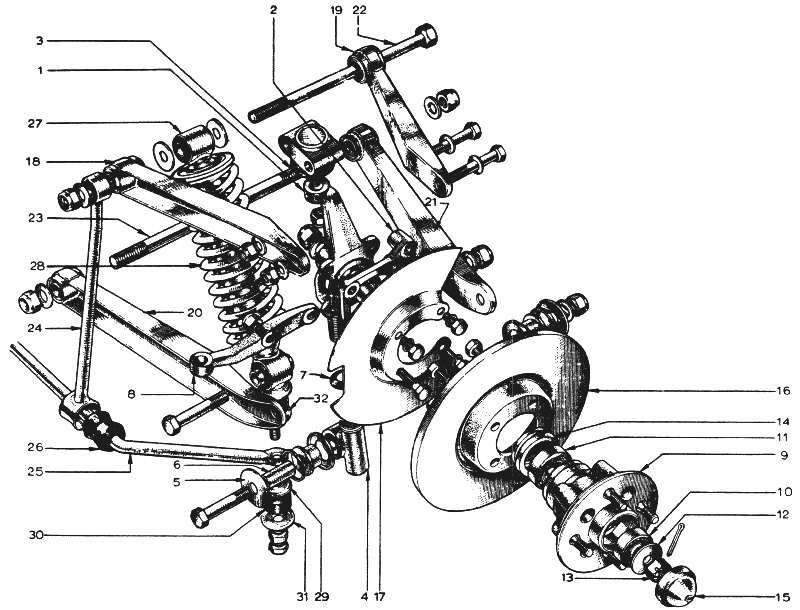

LOTUS EUROPA TC/TCS PARTS MANUALSection CA -- Suspension -- FrontLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (385K) |
Notes Bulletin Reference | |||||||||||||
1 | X036C6006Z | 1 | 1 | 1 | 1 | Vertical Link L/H | - More Info - | ||||||
1 | X036C6005Z | 1 | 1 | 1 | 1 | Vertical Link R/H | - More Info - | ||||||
1 | X036C6008Z | 2 | 2 | 2 | 2 | Stub Axle (Front) | - More Info - | ||||||
1 | X036C6033Z | 2 | 2 | 2 | 2 | Nut - Nyloc or Stover - Stub Axle to Vertical Link or 036C6033 | 1/2" x 20 TPI, 3/4" head | ||||||
1 | X036C6034Z | 2 | 2 | 2 | 2 | Washer - Stub Axle to Vertical Link or 036C6034 | |||||||
2 | X036C6022Z | 1 | 1 | 1 | 1 | Caliper Mounting Plate L/H | |||||||
2 | X036C6021Z | 1 | 1 | 1 | 1 | Caliper Mounting Plate R/H | |||||||
3 | X036C6007Z | 2 | 2 | 2 | 2 | Ball Joint Assembly Upper | - More Info - | ||||||
3 | 218 | 2 | 2 | 2 | 2 | Nut - Ball Joint to Vertical Link | |||||||
4 | X036C6026W | 1 | 1 | 1 | 1 | Lower Trunnion Assembly L/H | - More Info - | ||||||
4 | X036C6025W | 1 | 1 | 1 | 1 | Lower Trunnion Assembly R/H | - More Info - | ||||||
5 | X036C6032Z | 4 | 4 | 4 | 4 | Washer - Lower Trunnion | |||||||
5 | X036C6029Z | 4 | 4 | 4 | 4 | Washer - Lower Trunnion | |||||||
5 | X050B6005Z | 4 | 4 | 4 | 4 | Bush - Lower Trunnion | |||||||
6 | X036C6031Z | 2 | 2 | 2 | 2 | Sleeve - Lower Trunnion | |||||||
6 | X036C6030Z | 4 | 4 | 4 | 4 | Seal - Lower Trunnion | |||||||
6 | 33 | 2 | 2 | 2 | 2 | Bolt - Lower Trunnion to Wishbone | |||||||
6 | 128 | 2 | 2 | 2 | 2 | Washer - Lower Trunnion to Wishbone | |||||||
6 | 218 | 2 | 2 | 2 | 2 | Nut - Lower Trunnion to Wishbone | |||||||
7 | X036C6028Z | 2 | 2 | 2 | 2 | Seal - Lower Trunnion | |||||||
8 | X036H6001Z | 1 | 1 | 1 | 1 | Steering Arm L/H | - More Info - | ||||||
8 | X036H6000Z | 1 | 1 | 1 | 1 | Steering Arm R/H | - More Info - | ||||||
9 | X036C6014Z | 2 | 2 | 2 | 2 | Front Hub | |||||||
9 | X036C6015Z | 8 | 8 | 8 | 8 | Wheel Stud | Thread: 3/8-24, Knurl Dia.: .519", Length: 1.237", Shoulder Length: .455" - More Info - | ||||||
10 | X036C6016Z | 2 | 2 | 2 | 2 | Wheel Bearing - Front Outer | - More Info - | ||||||
11 | X036C6017Z | 2 | 2 | 2 | 2 | Wheel Bearing - Front Inner | - More Info - | ||||||
12 | X036C6009Z | 2 | 2 | 2 | 2 | D Washer - Hub to Stub Axle | |||||||
13 | X036C6010Z | 2 | 2 | 2 | 2 | Castellated Nut - Hub to Stub Axle | |||||||
13 | W0087 | 2 | 2 | 2 | 2 | Split Pin - Hub to Stub Axle | |||||||
14 | X036C6018Z | 2 | 2 | 2 | 2 | Oil Seal - Front Hub | - More Info - | ||||||
15 | X036C6013Z | 2 | 2 | 2 | 2 | Grease Cap | |||||||
16 | X036J6008Z | 2 | 2 | 2 | 2 | Brake Disc | |||||||
16 | X036J6009Z | 8 | 8 | 8 | 8 | Bolt - Brake Disc to Front Hub | 9/16" | ||||||
16 | X036J6010Z | 8 | 8 | 8 | 8 | Washer - Brake Disc to Front Hub | 9/16" | ||||||
17 | X036C6020Z | 1 | 1 | 1 | 1 | Dust Cover - L/H | |||||||
17 | X036C6019Z | 1 | 1 | 1 | 1 | Dust Cover - R/H | |||||||
17 | X036C6023Z | 2 | 2 | 2 | 2 | Bolt - Dust Cover - Caliper Mounting Plate & Steering Arm to Vertical Link | 9/16" x 2.25" long with 1" thread length | ||||||
17 | X036C6024Z | 8 | 8 | 8 | 8 | Bolt - Dust Cover - Caliper Mounting Plate to Vertical Link | 1/2" x 3/4" long (add 1/2" split washer) | ||||||
18 | A046C0093Z | 1 | 1 | 1 | 1 | Wishbone - Top Leading L/H | |||||||
18 | Z046C0094Z | 1 | 1 | 1 | 1 | Wishbone - Top Leading R/H | |||||||
19 | A065C0095Z | 1 | 1 | 1 | 1 | Wishbone - Top Trailing L/H | |||||||
19 | A065C0096Z | 1 | 1 | 1 | 1 | Wishbone - Top Trailing R/H | |||||||
20 | A065C0043Z | 2 | 2 | 2 | 2 | Wishbone - Bottom Leading L/H | |||||||
21 | A065C0044Z | 2 | 2 | 2 | 2 | Wishbone - Bottom Leading R/H | |||||||
21 | X036C6004Z | 8 | 8 | 8 | 8 | Bush - Wishbone | |||||||
21 | XUFB0854 | 2 | 2 | 2 | 2 | Bolt - Damper to Wishbone (Lower) | |||||||
21 | 139 | 4 | 4 | 4 | 4 | Washer - Lower Wishbone to Damper | |||||||
21 | 219 | 2 | 2 | 2 | 2 | Nut - Lower Wishbone to Damper | |||||||
21 | 18 | 4 | 4 | 4 | 4 | Bolt - Upper Wishbone to Damper | |||||||
21 | 118 | 8 | 8 | 8 | 8 | Washer - Upper Wishbone to Damper | |||||||
21 | 211 | 4 | 4 | 4 | 4 | Nut - Upper Wishbone to Damper | |||||||
22 | B046C0092Z | 2 | 2 | 2 | 2 | Pin - Upper Fulcrum | |||||||
22 | 219 | 2 | 2 | 2 | 2 | Nut - Securing - Upper Fulcrum | |||||||
22 | 128F | 2 | 2 | 2 | 2 | Washer - Upper Fulcrum | |||||||
23 | C074C0115Z | 2 | 2 | 2 | 2 | Pin Lower Fulcrum | |||||||
23 | 219 | 4 | 4 | 4 | 4 | Nut - Securing - Lower Fulcrum | |||||||
23 | 128F | 4 | 4 | 4 | 4 | Washer - Lower Fulcrum | |||||||
24 | X054C0005Z | 2 | 2 | 2 | 2 | Link - Anti Roll Bar | |||||||
24 | X046C6001Z | 2 | 2 | 2 | 2 | Bush - Anti Roll Bar Link | |||||||
25 | B074C0003Z | 1 | 1 | 1 | 1 | Bar - Anti Roll | - More Info - | ||||||
26 | X036C6027Z | 2 | 2 | 2 | 2 | Bush - Anti Roll Bar to Link | |||||||
27 | A074C0730W | 2 | 2 | 2 | 2 | Assembly - Damper/Spring | |||||||
28 | A074C0010Z | 2 | 2 | 2 | 2 | Spring | - More Info - | ||||||
29 | X036C6000Z | 2 | 2 | 2 | 2 | Plate - Damper to Anti Roll Bar | |||||||
30 | X046C6000Z | 4 | 4 | 4 | 4 | Rubber - Damper to Anti Roll Bar | |||||||
31 | X036C6003Z | 2 | 2 | 2 | 2 | Retainer - Damper to Anti Roll Bar (Lower) | |||||||
32 | X036C6001Z | 2 | 2 | 2 | 2 | Retainer - Damper to Anti Roll Bar (Upper) | |||||||
32 | AUFN060F | 2 | 2 | 2 | 2 | Nut - Damper bottom | |||||||
32 | 216 | 2 | 2 | 2 | 2 | Nut - Securing - Retainer - Upper |
