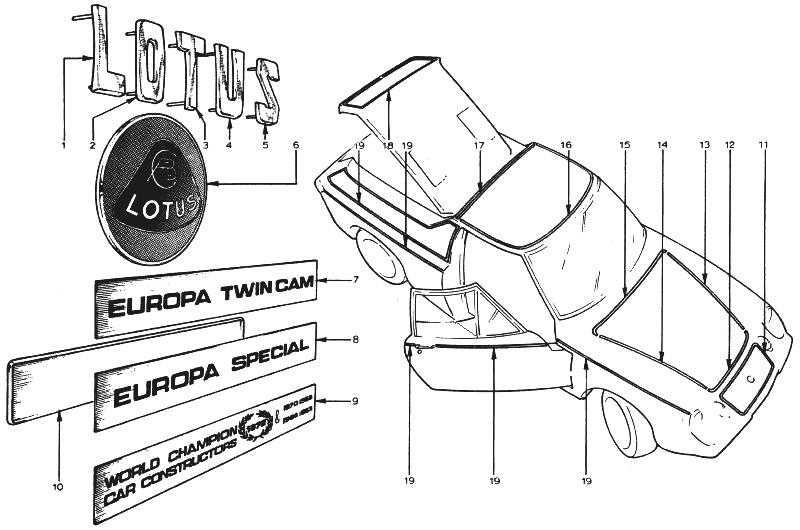

LOTUS EUROPA TC/TCS PARTS MANUALSection BN -- Body -- Badges and DecalsLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (130K) |
Notes Bulletin Reference | |||||||||||||
1 | X036B0544Z | 1 | 1 | 1 | 1 | Letter Plate L | - More Info - | ||||||
2 | X036B0545Z | 1 | 1 | 1 | 1 | Letter Plate O | - More Info - | ||||||
3 | X036B0546Z | 1 | 1 | 1 | 1 | Letter Plate T | - More Info - | ||||||
4 | X036B0547Z | 1 | 1 | 1 | 1 | Letter Plate U | - More Info - | ||||||
5 | X036B0548Z | 1 | 1 | 1 | 1 | Letter Plate S | - More Info - | ||||||
5 | 443 | 15 | 15 | 15 | 15 | Fixing Clip - Letter Plate | - More Info - | ||||||
6 | X026B0269Z | 1 | 1 | 1 | 1 | Badge - Lotus | |||||||
7 | A074U0010Z | 1 | 1 | + | + | Badge Europa Twin Cam | |||||||
8 | A074U0058Z | 1 | 1 | + | + | Badge Europa Special | |||||||
9 | A074U0079Z | 2 | 2 | 2 | 2 | Badge World Champions | Replaces A036B2073z | ||||||
9 | A036B2073Z | 2 | 2 | 2 | 2 | Badge World Champions | |||||||
10 | A036B6341Z | 3 | 3 | 3 | 3 | Bezel - Badge | |||||||
10 | 443 | 1 | 1 | + | + | Clip - Bezel Securing | |||||||
11 | A074U0062Z | 1 | 1 | + | + | Decal - Front Skirt | - Location PDF - | ||||||
12 | A074U0066Z | 1 | 1 | + | + | Decal - Bonnet Front | - Location PDF - | ||||||
13 | A074U0068Z | 1 | 1 | + | + | Decal - Bonnet L/H Front | - Location PDF - | ||||||
14 | A074U0069Z | 1 | 1 | + | + | Decal - Bonnet R/H Front | - Location PDF - | ||||||
15 | A074U0067Z | 1 | 1 | + | + | Decal - Bonnet Rear | - Location PDF - | ||||||
16 | A074U0075Z | 1 | 1 | + | + | Decal - Roof Rear | - Location PDF - | ||||||
17 | A074U0074Z | 1 | 1 | + | + | Decal - Roof Rear | - Location PDF - | ||||||
18 | A074U0063Z | 1 | 1 | + | + | Decal - Engine Compartment | - Location PDF - | ||||||
19 | A074U0081Z | + | + | Decal (As Required) | - Location PDF - |
