Notes Bulletin Reference | |||||||||||||

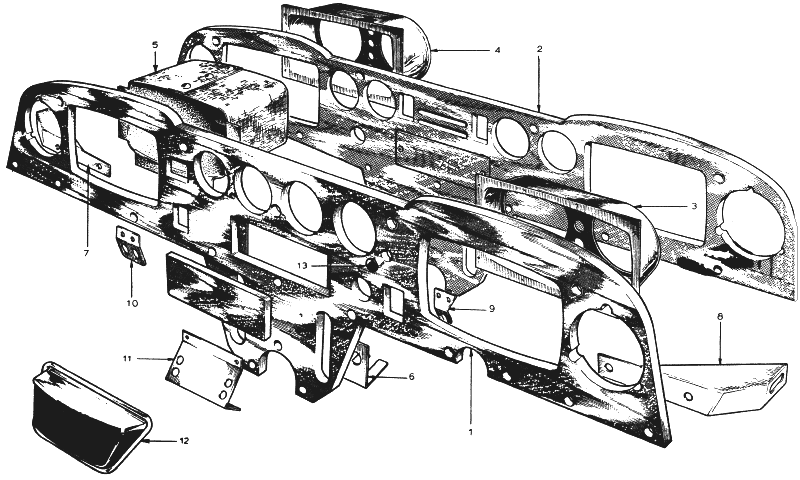

1 | A074B0238Z | 1 | 1 | + | Facia Panel | - More Info - | |||||||
1 | B054B0237Z | 1 | 1 | 1 | + | Facia Panel | - More Info - | ||||||
2 | B074U0105Z | 1 | Facia Panel | - More Info - | |||||||||
3 | B054B1408Z | 1 | 1 | 1 | + | + | Binnacle - Instrument | ||||||
4 | A074V0713Z | 1 | Binnacle - Instrument | ||||||||||
5 | X054B0195Z | 1 | 1 | 1 | 1 | Box - Glove | |||||||
5 | 303C | 17 | 17 | 17 | 17 | Screw - Binnacle and Glove Box Securing | |||||||
6 | A074U0008Z | 2 | 2 | 2 | 2 | Bracket - Facia Mounting | |||||||
7 | B054B1459Z | 1 | 1 | 1 | 1 | Bracket. Facia End Support | |||||||
8 | B054B1460Z | 1 | 1 | 1 | 1 | Bracket. Facia End Support | |||||||
8 | 335D | 4 | 4 | 4 | 4 | Screw - Facia Mounting | |||||||
8 | 3 | 2 | 2 | 2 | 2 | Screw - Facia Mounting | |||||||
8 | 110 | 2 | 2 | 2 | 2 | Washer - Plain - Facia Mounting | |||||||
8 | 110A | 2 | 2 | 2 | 2 | Washer - Fibre - Facia Mounting | |||||||
8 | 208 | 2 | 2 | 2 | 2 | Nut - Facia Mounting | |||||||
9 | X054B1463Z | 1 | 1 | 1 | + | + | Speedometer Trip Cable Bracket | ||||||
10 | X054B1539Z | 1 | 1 | 1 | + | Speedometer Trip Cable And Test Switch Bracket | |||||||
11 | X054B0560Z | 1 | 1 | 1 | 1 | Bracket - Ashtray Mounting | |||||||
12 | X054B6014W | 1 | 1 | 1 | 1 | Ashtray | |||||||
13 | X036B6114Z | Clip - Facia Blanking (As Required) |
