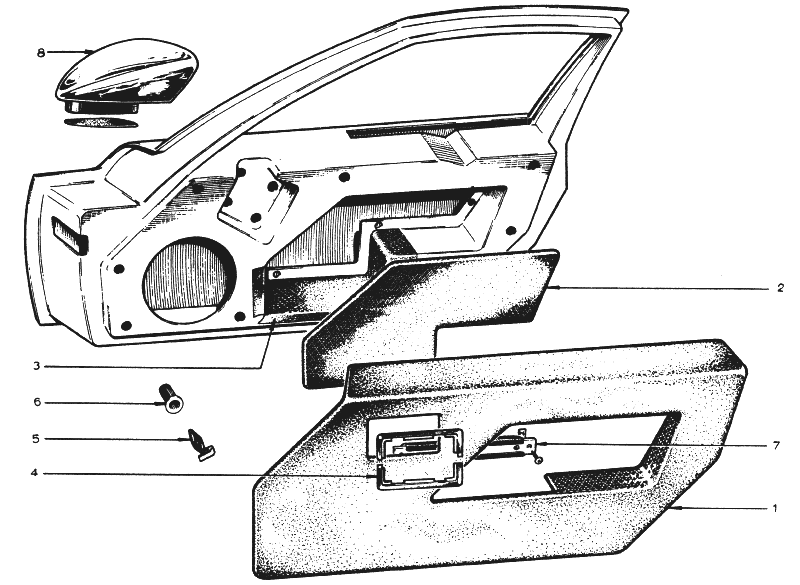

LOTUS EUROPA TC/TCS PARTS MANUALSection BH -- Body -- Door Shells and TrimLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (110K) |
Notes Bulletin Reference | |||||||||||||
1 | X054B0721S | 1 | 1 | 1 | + | + | Panel - Trim (Black) L/H | ||||||
1 | A074B0721S | 1 | 1 | 1 | + | + | Panel - Trim (Beige) L/H | ||||||
1 | B074B0721S | 1 | Panel - Trim L/H | ||||||||||
1 | X054B0722S | 1 | 1 | 1 | + | + | Panel - Trim (Black) R/H | ||||||
1 | A074B0722S | 1 | 1 | 1 | + | + | Panel - Trim (Beige) R/H | ||||||
1 | B074B7022S | 1 | Panel - Trim R/H | ||||||||||
2 | X054B0887S | 1 | 1 | 1 | + | + | Panel - Aperature (Black) L/H | ||||||
2 | A074B0887S | 1 | 1 | 1 | + | + | Panel - Aperature (Beige) L/H | ||||||
2 | B074B0887S | 1 | Panel - Aperature L/H | ||||||||||
2 | X054B0888S | 1 | 1 | 1 | + | + | Panel - Aperature (Black) R/H | ||||||
2 | A074B0888S | 1 | 1 | 1 | + | + | Panel - Aperature (Beige) R/H | ||||||
2 | B074B0888S | 1 | Panel - Aperature R/H | ||||||||||
3 | X054B1698Z | 2 | 2 | 2 | 2 | Citrus - Door Pocket | |||||||
4 | X054B6059Z | 4 | 4 | 4 | 4 | Bezel - Door Handle Remote Control (Inside Door Handle) | - More Info - | ||||||
5 | W0010 | 16 | 16 | 16 | 16 | Clip - Trim Panel Mounting | - More Info - | ||||||
6 | 428A | 16 | 16 | 16 | 16 | Snap Sac - Trim Panel Mounting | - More Info - | ||||||
7 | A074V0056Z | 2 | 2 | 2 | 2 | Plate - Door Pull Fixing | |||||||
7 | 313 | 4 | 4 | 4 | 4 | Screw - Door Pull Plate Securing | |||||||
7 | 422 | 4 | 4 | 4 | 4 | Nut - Door Pull Plate Securing | |||||||
8 | X050B6140Z | 1 | 2 | 2 | + | + | Mirror - Wing |
