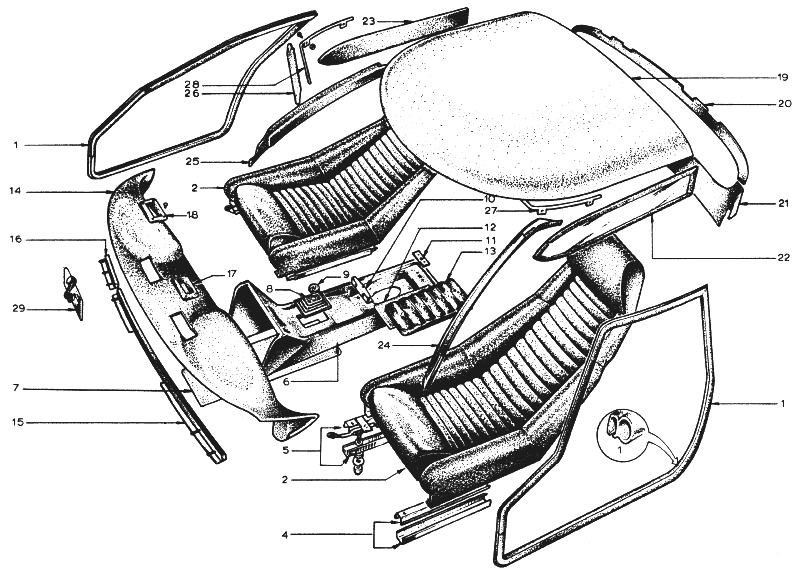

LOTUS EUROPA TC/TCS PARTS MANUALSection BG -- Body -- Interior and RoofLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (280K) |
Notes Bulletin Reference | |||||||||||||
1 | A074V0067Z | 2 | 2 | 2 | 2 | Door Seal | - More Info - | ||||||
2 | A074V0706S | 1 | Assembly - Seat (Black) R/H | ||||||||||
2 | B074V0706S | 1 | Assembly - Seat R/H | ||||||||||
2 | C074V0706S | 1 | Assembly - Seat (Beige) R/H | ||||||||||
2 | D074V0706S | 1 | Assembly - Seat L/H | ||||||||||
2 | A074V0707S | 2 | 1 | 2 | + | + | Assembly - Seat (Black) | ||||||
2 | B074V0707S | 2 | 1 | 2 | + | + | Assembly - Seat (Beige) | ||||||
2 | C074B1174S | 2 | + | + | Assembly - Narrow Seat (Black) | ||||||||
2 | D074B1174S | 2 | + | + | Assembly - Narrow Seat (Beige) | ||||||||
4 | X054B6018Z | 2 | 2 | 2 | 2 | Seat Runner | - More Info - | ||||||
5 | X054B6019Z | 2 | 2 | 2 | 2 | Seat Runner c/w Catch | |||||||
5 | XUFB0510 | 8 | 8 | 8 | 8 | Bolt - Seat Fixing | |||||||
5 | 118 | 16 | 16 | 16 | 16 | Washer - Seat Fixing | |||||||
5 | 211 | 16 | 16 | 16 | 16 | Nut - Seat Fixing | |||||||
5 | 119 | 16 | 16 | 16 | 16 | Washer - Seat Fixing | |||||||
5 | XUFB0516 | 8 | 8 | 8 | 8 | Bolt - Seat Fixing | |||||||
5 | 118A | 8 | 8 | 8 | 8 | Washer - Seat Fixing | |||||||
6 | D074V0009Z | 1 | + | + | Tunnel Top | ||||||||
6 | A074V0076Z | 1 | Tunnel Top | ||||||||||
6 | A074V0087Z | 1 | + | + | Tunnel Top | ||||||||
6 | A074V0088Z | 1 | Tunnel Top | ||||||||||
7 | A047V0712Z | 1 | 1 | 1 | + | + | Insulator - Body/Tunnel Top | ||||||
7 | B074V0712Z | 1 | Insulator - Body/Tunnel Top | ||||||||||
8 | X050F6000Z | 1 | 1 | 1 | 1 | Gromet - Gear Lever | |||||||
9 | X036J6026X | 1 | 1 | 1 | 1 | Gromet | |||||||
10 | X054B1389Z | 1 | 1 | 1 | + | + | Bracket - Cable Anchor | ||||||
10 | X074B1389Z | 1 | Bracket - Cable Anchor | ||||||||||
11 | A074V0055Z | 1 | 1 | 1 | 1 | Plate - Armrest Fixing | |||||||
12 | B054B1461Z | 1 | 1 | 1 | 1 | Seal - Chassis Access | |||||||
13 | X054B8111Z | 1 | 1 | 1 | 1 | Armrest | |||||||
13 | 454E | 2 | 2 | 2 | 2 | Clip - Armrest Securing | |||||||
14 | X050B0230Z | 1 | 1 | 1 | 1 | Pad - Crash | |||||||
15 | X054B1161S | 1 | 1 | + | Trim - Facia L/H | ||||||||
15 | X054B1162S | 1 | 1 | 1 | 1 | + | Trim - Facia R/H | ||||||
16 | X054B1163S | 1 | 1 | 1 | 1 | + | Trim - Facia L/H | ||||||
16 | X054B1164S | 1 | 1 | + | Trim - Facia r/H | ||||||||
17 | X054P0069Z | 1 | 1 | 1 | 1 | Bezel - Demist Nozzle L/H | |||||||
18 | A054P0070Z | 1 | 1 | 1 | 1 | Bezel - Demist Nozzle R/H | |||||||
18 | 308 | 8 | 8 | 8 | 8 | Screw - Bezel Attaching | |||||||
19 | X054B0360S | 1 | 1 | 1 | + | + | Headliner | ||||||
19 | B054B6127Z | 1 | Headliner | ||||||||||
20 | X054B1443Z | 1 | 1 | 1 | 1 | Surround - Rear Screen - Upper | |||||||
21 | X054B1484Z | 1 | 1 | 1 | 1 | Surround - Rear Screen - Lower | |||||||
22 | X054B0717S | 1 | 1 | 1 | 1 | Contrail - L/H | |||||||
23 | X054B0718S | 1 | 1 | 1 | 1 | Contrail - R/H | |||||||
24 | A054B0361S | 1 | 1 | 1 | 1 | Trim - Windscreen Pillar L/H | |||||||
25 | A054B0362S | 1 | 1 | 1 | 1 | Trim - Windscreen Pillar R/H | |||||||
26 | X054B1720Z | 2 | 2 | 2 | + | + | Visor - Sun | ||||||
26 | A074V6010Z | 2 | Visor - Sun | ||||||||||
27 | X054B1291Z | 1 | 1 | 1 | 1 | Bracket - L/H Sun Visor Mounting | |||||||
28 | X054B1292Z | 1 | 1 | 1 | 1 | Bracket - R/H Sun Visor Mounting | |||||||
28 | 323A | 4 | 4 | 4 | 4 | Screw - Sun Visor Bracket to Body | |||||||
28 | YUFN100F | 4 | 4 | 4 | 4 | Nut - Sun Visor Bracket to Body | |||||||
29 | X036B6031Z | 1 | 1 | 1 | 1 | Interior Mirror |
