LOTUS EUROPA TC/TCS PARTS MANUALSection BD -- Body -- Door HardwareLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|

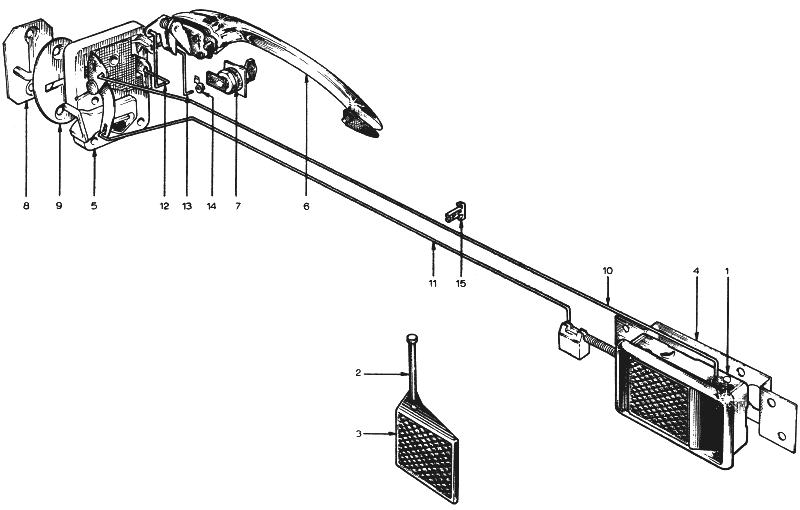

Click here to open a new window containing a searchable PDF copy. (170K) |
Notes Bulletin Reference | |||||||||||||
1 | X036B6151W | 1 | 1 | 1 | 1 | Control - Remote L/H | |||||||
1 | X036B6152W | 1 | 1 | 1 | 1 | Control - Remote R/H | |||||||
2 | A036B6257Z | 2 | 2 | 2 | 2 | Pin - Control - Remote | |||||||
3 | A036B6256Z | 2 | 2 | 2 | 2 | Flap - Control - Remote | |||||||
4 | X046B1629Z | 1 | 1 | 1 | 1 | Bracket - Remote Control (Inside Door Handle) (Inside Door Handle) Mounting L/H | |||||||
4 | X046B1630Z | 1 | 1 | 1 | 1 | Bracket - Remote Control (Inside Door Handle) Mounting R/H | |||||||
4 | 339 | 8 | 8 | 8 | 8 | Fastner - Bracket to Door | |||||||
4 | RSTS1008 | 6 | 6 | 6 | 6 | Screw - Remote Control (Inside Door Handle) to Bracket | |||||||
4 | 208 | 6 | 6 | 6 | 6 | Nut - Remote Control (Inside Door Handle) to Bracket | |||||||
5 | X036B6048W | 1 | 1 | 1 | 1 | Assembly - Door Lock Mechanism | |||||||
5 | X036B6049W | 1 | 1 | 1 | 1 | Assembly - Door Lock Mechanism | |||||||
5 | 335A | 8 | 8 | 8 | 8 | Screw - Lock Mechanism to Door | |||||||
5 | 208 | 8 | 8 | 8 | 8 | Nut - Lock Mechanism to Door | |||||||
6 | X036B6052W | 1 | 1 | 1 | 1 | Door Handle - Exterior LH | - More Info - | ||||||
6 | X036B6053W | 1 | 1 | 1 | 1 | Door Handle - Exterior RH | - More Info - | ||||||
6 | X036B6168Z | 2 | 2 | 2 | 2 | Door Handle Gasket - Small | |||||||
6 | X036B6164Z | 2 | 2 | 2 | 2 | Door Handle Gasket - Large | |||||||
6 | 38 | 4 | 4 | 4 | 4 | Screw - Door Handle to Door | |||||||
6 | 101 | 4 | 4 | 4 | 4 | Washer - Door Handle to Door | |||||||
7 | A036B6191W | 2 | 2 | 2 | 2 | Lock - Private | |||||||
7 | LUFN120F | 2 | 2 | 2 | 2 | Nut - Secuting - Lock - Private | |||||||
7 | A036B1921Z | 2 | 2 | 2 | 2 | Plate - Securing - Lock - Private | |||||||
7 | X036B6096Z | 2 | 2 | 2 | 2 | Gasket | |||||||
8 | X036B6054Z | 2 | 2 | 2 | 2 | Plate - Striker | |||||||
9 | X036B6055Z | 2 | 2 | 2 | 2 | Plate - Cover | |||||||
9 | 335A | 4 | 4 | 4 | 4 | Screw - Striking Securing | |||||||
10 | X054B1411Z | 1 | 1 | 1 | 1 | Rod - Locking - L/H | |||||||
10 | X054B1412Z | 1 | 1 | 1 | 1 | Rod - Locking - R/H | |||||||
11 | Z054B1413Z | 1 | 1 | 1 | 1 | Rod - Opening - L/H | |||||||
11 | X054B1414Z | 1 | 1 | 1 | 1 | Rod - Opening - R/H | |||||||
12 | X054B1415Z | 1 | 1 | 1 | 1 | Rod - Door Handle - L/H | |||||||
12 | X054B1416Z | 1 | 1 | 1 | 1 | Rod - Door Handle - R/H | |||||||
13 | X054B1423Z | 1 | 1 | 1 | 1 | Rod - Key Locking - L/H | |||||||
13 | X054B1424Z | 1 | 1 | 1 | 1 | Rod - Key Locking - R/H | |||||||
14 | A036U6001 | 12 | 12 | 12 | 12 | Assembly - Clip and Brush | |||||||
15 | X036B6155Z | 4 | 4 | 4 | 4 | Anti-rattle Clip |
