LOTUS EUROPA TC/TCS PARTS MANUALSection BC -- Body -- Door Windows, Motors and HingesLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (260K) |

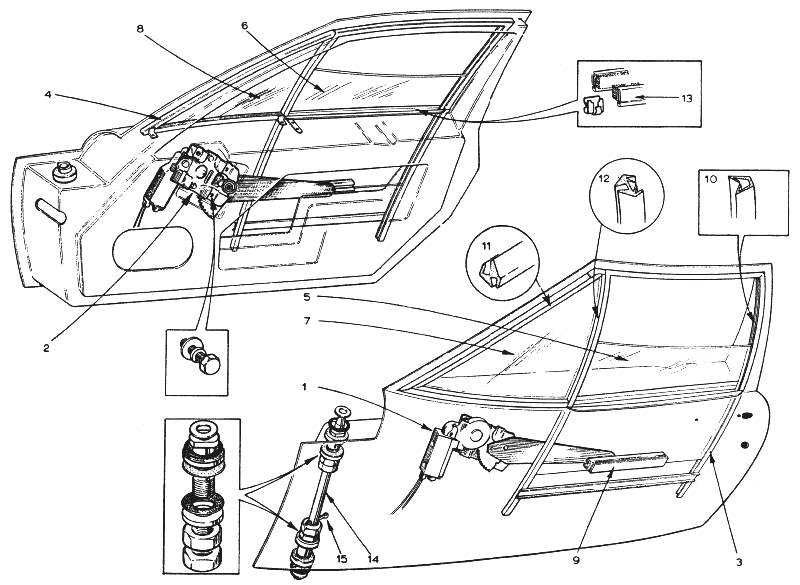

Notes Bulletin Reference | |||||||||||||
1 | X054B1495S | 1 | 1 | 1 | 1 | Window Lift Motor - LH | - More Info - | ||||||
2 | X054B1496S | 1 | 1 | 1 | 1 | Window Lift Motor - RH | - More Info - | ||||||
2 | XUFB0418 | 8 | 8 | 8 | 8 | Bolt - Motor to Door | |||||||
2 | 113 | 8 | 8 | 8 | 8 | Washer - Motor to Door | |||||||
2 | 108 | 8 | 8 | 8 | 8 | Washer - Shakeproof - Motor to Door | |||||||
3 | X054B0791W | 1 | 1 | 1 | 1 | Frame - Wiindow L/H | |||||||
3 | X054B0792W | 1 | 1 | 1 | 1 | Frame - Window R/H | |||||||
4 | X054B0790W | 1 | 1 | 1 | 1 | Frame - Quarter Light R/H | |||||||
4 | X054B0789W | 1 | 1 | 1 | 1 | Frame - Quarter Light L/H | |||||||
4 | 434 | 14 | 14 | 14 | 14 | Rivet - Frame Securing | |||||||
4 | 305B | 4 | 4 | 4 | 4 | Screw - Frame Securing | |||||||
4 | 100 | 4 | 4 | 4 | 4 | Washer - Frame Securing | |||||||
4 | 207 | 4 | 4 | 4 | 4 | Nut - Frame Securing | |||||||
5 | X054B0667Z | 1 | 1 | 1 | 1 | Glass - L/H Side Window | |||||||
5 | X054B0667A | 1 | 1 | 1 | 1 | Glass - L/H Side Window - Shaded (Optional) | |||||||
5 | A036B6213V | 1 | 1 | 1 | 1 | Seal - Window | |||||||
6 | X054B668Z | 1 | 1 | 1 | 1 | Glass - LRH Side Window | |||||||
6 | X054B668A | 1 | 1 | 1 | 1 | Glass - R/H Side Window - Shaded (Optional) | |||||||
6 | X036B6213V | 1 | 1 | 1 | 1 | Seal - Window | |||||||
7 | X054B669A | 1 | 1 | 1 | 1 | Glass - L/H Quarter Light | |||||||
7 | B054B0669Z | 1 | 1 | 1 | 1 | Glass - L/H Quarter Light - Shaded (Optional) | |||||||
8 | X054B0670A | 1 | 1 | 1 | 1 | Glass - R/H Quarter Light | |||||||
8 | B054B0670Z | 1 | 1 | 1 | 1 | Glass - R/H Quarter Light - Shaded (Optional) | |||||||
9 | X054B0091Z | 2 | 2 | 2 | 2 | Channel - Window Operating | |||||||
9 | X054B6108Z | 2 | 2 | 2 | 2 | Strip - Channel Seal | |||||||
10 | X054B6023Z | 2 | 2 | 2 | 2 | Channel - Side Window | |||||||
11 | A054B1929Z | 2 | 2 | 2 | 2 | Seal - Quarter Light - Front and Base | |||||||
12 | A054B1928Z | 2 | 2 | 2 | 2 | Seal - Quarter Light - Dividing Channel | |||||||
13 | X036B6061Z | 4 | 4 | 4 | 4 | Seal - Side Window | |||||||
13 | 417 | 16 | 16 | 16 | 16 | Clip - Seal - Side Window | |||||||
14 | X046B0073Z | 2 | 2 | 2 | 2 | Pintle - Door Hinge | |||||||
14 | A054B2000Z | 4 | 4 | 4 | 4 | Bush - Door Hinge | |||||||
14 | X046B6024Z | 4 | 4 | 4 | 4 | O Ring - Door Hinge | |||||||
14 | 220A | 8 | 8 | 8 | 8 | Nut - Door Hinge | |||||||
14 | 128D | 8 | 8 | 8 | 8 | Washer - Door Hinge | |||||||
14 | 128CA | Washer - Door Hinge (As Required) | |||||||||||
14 | W015 | 12 | 12 | 12 | 12 | Washer - Abraisive - Door Hinge | |||||||
15 | 412C | 2 | 2 | 2 | 2 | Pin - Split - Door Hinge |
