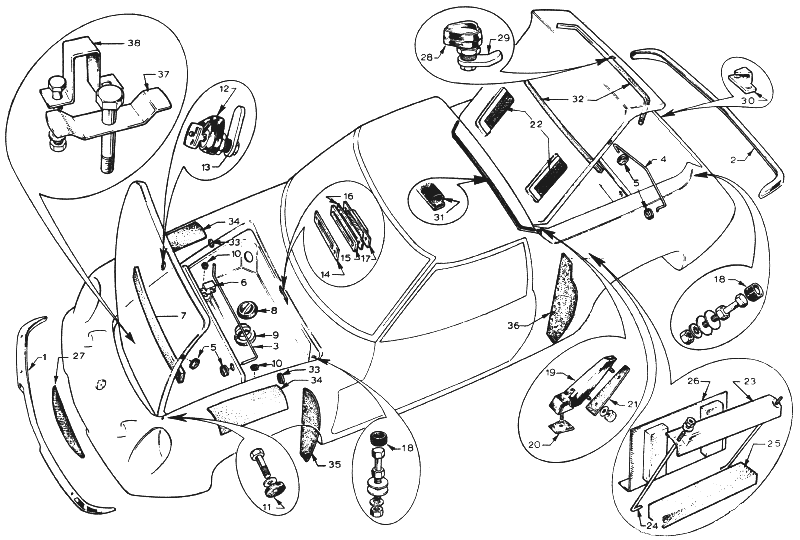

LOTUS EUROPA TC/TCS PARTS MANUALSection BB -- Body -- AttachmentsLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (460K) |
Notes Bulletin Reference | |||||||||||||
1 | X046B6011Z | 1 | 1 | 1 | 1 | Front Bumper | - More Info - | ||||||
2 | X046B6012Z | 1 | 1 | 1 | 1 | Rear Bumper | - More Info - | ||||||
2 | 436B | 2 | 2 | 2 | 2 | Rivet - Blanking - Bumper | |||||||
2 | 453A | 8 | 8 | 8 | 8 | Bumper Bolt - Bumper Mounting | - More Info - | ||||||
2 | 116AA | 8 | 8 | 8 | 8 | Fibre Washer - Bumper Mounting | - More Info - | ||||||
2 | 118 | 8 | 8 | 8 | 8 | Washer - Plain - Bumper Mounting | |||||||
2 | AA4 | 8 | 8 | 8 | 8 | Washer - Spring - Bumper Mounting | |||||||
2 | 214A | 8 | 8 | 8 | 8 | Nut - Bumper Mounting | |||||||
3 | X054B1535Z | 1 | 1 | 1 | 1 | Stay - Bonnet Lid | |||||||
4 | X046B1131Z | 1 | 1 | 1 | 1 | Stay - Engine Compartment Lid | |||||||
5 | X036B6010Z | 4 | 4 | 4 | 4 | Gromet - Stay Pivot | |||||||
6 | X0541673Z | 2 | 2 | 2 | 2 | Clip - Stay Pivot | |||||||
7 | X054B1652Z | 1 | 1 | 1 | 1 | Strip - Foam - Bonnet Lid | |||||||
8 | X026B0371Z | 1 | 1 | 1 | 1 | Gromet - Handbrake Fixing Access | - More Info - | ||||||
9 | X036K0068Z | 1 | 1 | 1 | 1 | Seal - Handbrake Access Aperature | |||||||
10 | A054J6005Z | 2 | 2 | 2 | 2 | Gromet - Body Attaching Bolt Access | - More Info - | ||||||
11 | 148 | 2 | 2 | 2 | 2 | Bolt - Bonnet Securing | |||||||
11 | X054B6107Z | 2 | 2 | 2 | 2 | Rubber Washer - Bonnet Fixing | 1" OD x 11/32" ID x 1/8" Thick - More Info - | ||||||
11 | 118 | 2 | 2 | 2 | 2 | Washer - Bonnet Securing | |||||||
12 | X046B6112Z | 1 | 1 | 1 | 1 | Lock - Bonnet | - More Info - | ||||||
13 | X046B1362Z | 1 | 1 | 1 | 1 | Tab - Bonnet Lock | |||||||
14 | A046B1368Z | 1 | 1 | 1 | 1 | Plate - Strike - Bonnet Lock | |||||||
15 | A074U0057Z | 1 | 1 | 1 | 1 | Packing - Bonnet Lock | |||||||
16 | A074B2109Z | 1 | 1 | 1 | 1 | Seal - Bonnet Lock | |||||||
17 | D074B1368Z | 1 | 1 | 1 | 1 | Plate - Locking - Bonnet Lock | |||||||
17 | 337 | 2 | 2 | 2 | 2 | Screw - Securing - Plate - Locking - Bonnet Lock | |||||||
18 | X046B6113Z | 4 | 4 | 4 | 4 | Buffer - Bonnet and Engine Compartment Lid | |||||||
18 | 13C | 2 | 2 | 2 | 2 | Bolt - Bonnet Buffer | |||||||
18 | 14A | 2 | 2 | 2 | 2 | Bolt - Engine Compartment Lid Buffer | |||||||
18 | 119 | 8 | 8 | 8 | 8 | Washer - Plain - Engine Compartment Lid Buffer | |||||||
18 | 116 | 4 | 4 | 4 | 4 | Washer - Shakeproof - Engine Compartment Lid Buffer | |||||||
18 | 209A | 4 | 4 | 4 | 4 | Nut - Engine Compartment Lid Buffer | |||||||
19 | X036B6006Z | 2 | 2 | 2 | 2 | Hinge - Engine Compartment | |||||||
20 | A036B1111Z | 2 | 2 | 2 | 2 | Engine Compartment Lid Hinge Front Gasket | |||||||
21 | A036B1112Z | 2 | 2 | 2 | 2 | Engine Compartment Lid Hinge Rear Gasket | |||||||
21 | 113 | 4 | 4 | 4 | 4 | Washer - Hinge to Lid | |||||||
21 | 206 | 4 | 4 | 4 | 4 | Nut - Hinge to Lid | |||||||
21 | 119 | 2 | 2 | 2 | 2 | Washer - Hinge to Body | |||||||
21 | 210A | 2 | 2 | 2 | 2 | Nut - Hinge to Body | |||||||
22 | A074U0011Z | 2 | 2 | 2 | 2 | Grille - Engine Compartment Lid | |||||||
22 | 316B | 8 | 8 | 8 | 8 | Screw - Grille Securing | |||||||
22 | 422 | 8 | 8 | 8 | 8 | Nut - Grille Securing | |||||||
23 | A074U0014Z | 1 | 1 | 1 | 1 | Clamp - Battery | |||||||
24 | C074U0015Z | 2 | 2 | 2 | 2 | Rod - Battery Clamp | |||||||
25 | A054B6111V | Strip - Rubber (As Required) | |||||||||||
26 | A074B0026Z | 1 | 1 | 1 | 1 | Shield - Battery Heat | |||||||
27 | X046B0272Z | 1 | 1 | 1 | 1 | Grille - Front | |||||||
27 | RSTS0808 | 8 | 8 | 8 | 8 | Screw - Grille Securing | |||||||
27 | 421 | 8 | 8 | 8 | 8 | Nut - Grille Securing | |||||||
27 | 102 | 8 | 8 | 8 | 8 | Washer - Grille Securing | |||||||
28 | X046B6112Z | 1 | 1 | 1 | 1 | Lock - Engine Compartment Lid | - More Info - | ||||||
29 | X046B1367Z | 1 | 1 | 1 | 1 | Tab - Lock | |||||||
30 | X046B1366Z | 1 | 1 | 1 | 1 | Plate - Latch | |||||||
30 | 318B ? | 2 | 2 | 2 | 2 | Screw - Plate Securing | |||||||
30 | 102 | 2 | 2 | 2 | 2 | Washer - Plate Securing | |||||||
30 | 423 | 2 | 2 | 2 | 2 | Nut - Plate Securing | |||||||
31 | A074V6006V | 1 | 1 | 1 | 1 | Seal - Engine Compartment | |||||||
32 | X046B1289Z | 2 | 2 | 2 | 2 | Strip - Foam - Engine Compartment Lid | |||||||
33 | X026B0731Z | 2 | 2 | 2 | 2 | Gromet - Upper Wishbone Access | |||||||
34 | A036V0083V | 2 | 2 | 2 | 2 | Guard - Stone | |||||||
35 | X054B1271Z | 2 | 2 | 2 | 2 | Plate - Closing - Front Wheel Arch | |||||||
36 | X054B1272Z | 2 | 2 | 2 | 2 | Plate - Closing - Rear Wheel Arch | |||||||
35 | 434 | 24 | 24 | 24 | 24 | Rivet - Plate Securing | |||||||
35 | 100 | 48 | 48 | 48 | 48 | Washer - Plate Securing | |||||||
37 | X036B0599Z | 1 | 1 | 1 | 1 | Clamp - Spare Wheel (Steel Wheel Only) | |||||||
38 | A074U0028Z | 1 | 1 | 1 | 1 | Bracket - Wheel Support (Steel Wheel Only) | |||||||
38 | 4__ | 2 | 2 | 2 | 2 | Bolt - Bracket Securing | |||||||
38 | 110 | 2 | 2 | 2 | 2 | Washer - Bracket Securing | |||||||
38 | 208 | 2 | 2 | 2 | 2 | Nut - Bracket Securing | |||||||
38 | 125 | 1 | 1 | 1 | 1 | Washer - Spare Wheel Securing (Alloy Wheel Only) | |||||||
38 | 30A | 1 | 1 | 1 | 1 | Bolt - Spare Wheel Securing (All) |
