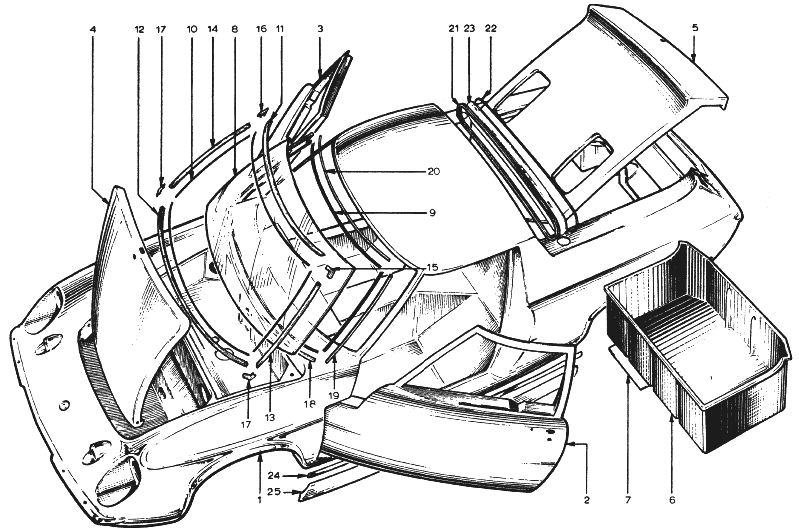

LOTUS EUROPA TC/TCS PARTS MANUALSection BA -- Body -- Major Panels and TrimLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (300K) |
Notes Bulletin Reference | |||||||||||||
1 | A074B1800S | 1 | 1 | + | Shell - Body | ||||||||
1 | A074B1801S | 1 | 1 | + | Shell - Body | ||||||||
1 | B074B1801S | 1 | Shell - Body | ||||||||||
1 | C074B1801S | 1 | Shell - Body | ||||||||||
2 | A065B0089S | 1 | 1 | 1 | 1 | Shell - Door - L/H | |||||||
3 | A065B0088S | 1 | 1 | 1 | 1 | Shell - Door - R/H | |||||||
4 | A464B0030S | 1 | 1 | 1 | 1 | Lid - Bonnet | |||||||
4 | X054B1820Z | 1 | 1 | 1 | 1 | Strip - Bonnet Reinforcing | SB - Service III 1969/40 | ||||||
4 | 434 | 6 | 6 | 6 | 6 | Rivet - Strip Securing | SB - Service III 1969/40 | ||||||
4 | A036B6213V | 1 | 1 | 1 | 1 | Sealing - Front Stowage Compartment | |||||||
5 | A074B0040Z | 1 | 1 | 1 | 1 | Engine Compartment Lid | |||||||
6 | X054B0059S | 1 | 1 | 1 | 1 | Luggage Box | |||||||
6 | 6BN | 2 | 2 | 2 | 2 | Bolt - Box Securing | |||||||
6 | 113 | 2 | 2 | 2 | 2 | Washer - Box Securing | |||||||
7 | X046B2005Z | 1 | 1 | 1 | 1 | Shield - Heat - Metal | |||||||
7 | X046B2007Z | 1 | 1 | 1 | 1 | Shield - Heat - Asbestos | |||||||
8 | X046B0029Z | 1 | 1 | 1 | 1 | Windscreen | |||||||
8 | X054B0029Z | 1 | 1 | 1 | 1 | Windscreen - tinted (Optional) | |||||||
9 | X050B6182Z | 1 | 1 | 1 | 1 | Strip - Sealing | |||||||
10 | A050B6181Z | 1 | 1 | 1 | 1 | Strip - Sealing | |||||||
10 | A054B6132Z | 1 | 1 | 1 | 1 | Blocks - Mounting | |||||||
11 | A054B6118Z | 1 | 1 | 1 | 1 | Finish - External Top | |||||||
12 | A054B6119Z | 1 | 1 | 1 | 1 | Finish - External Bottom | |||||||
13 | A054B6120Z | 1 | 1 | 1 | 1 | Finish - External L/H | |||||||
14 | A054B6126Z | 1 | 1 | 1 | 1 | Finish - External T/H | |||||||
15 | A054B6133Z | 1 | 1 | 1 | 1 | Clip - Top L/H Corner | |||||||
16 | A054B6134Z | 1 | 1 | 1 | 1 | Clip - Top R/H Corner | |||||||
17 | A050B6190Z | 2 | 2 | 2 | 2 | Clip - Bottom Corner | |||||||
18 | A054B6122Z | 1 | 1 | 1 | 1 | Trim - windscreen Internal Base | |||||||
19 | A054B6123Z | 2 | 2 | 2 | 2 | Trim - Windscreen Internal Side | |||||||
20 | A054B1621Z | 1 | 1 | 1 | 1 | Trim - windscreen Internal Top | Up to Chassis No. 1657P - 1088Q - 2468R | ||||||
20 | B050B6209Z | 1 | 1 | 1 | 1 | Trim - windscreen Internal Top and Sides | From Chassis No. 1658P - 1089Q - 2469R | ||||||
21 | X054B1769Z | 1 | 1 | 1 | 1 | Weatherstrip - Rear Screen | - More Info - | ||||||
22 | 65U0009Z | 1 | 1 | 1 | 1 | Strip - Filler - Rear Screen | |||||||
23 | X046B0349Z | 1 | 1 | 1 | 1 | Rear Screen | |||||||
23 | B046B0349Z | 1 | 1 | 1 | 1 | Rear Screen Shaded (Optional) | |||||||
24 | A074U6004Z | 2 | 2 | 2 | 2 | Strip - Trim | |||||||
24 | A074U6006Z | 18 | 18 | 18 | 18 | Clip - Attaching | |||||||
25 | A074U0111Z | 1 | 1 | 1 | 1 | Panel - Trim - L/H | |||||||
25 | A074U0110Z | 1 | 1 | 1 | 1 | Panel - trim R/H | |||||||
25 | A074U6007Z | Tape - Double Sided Adhesive (As Required) | |||||||||||
25 | A074U6005Z | 10 | 10 | 10 | 10 | Clip - Trim Panel Attaching |
