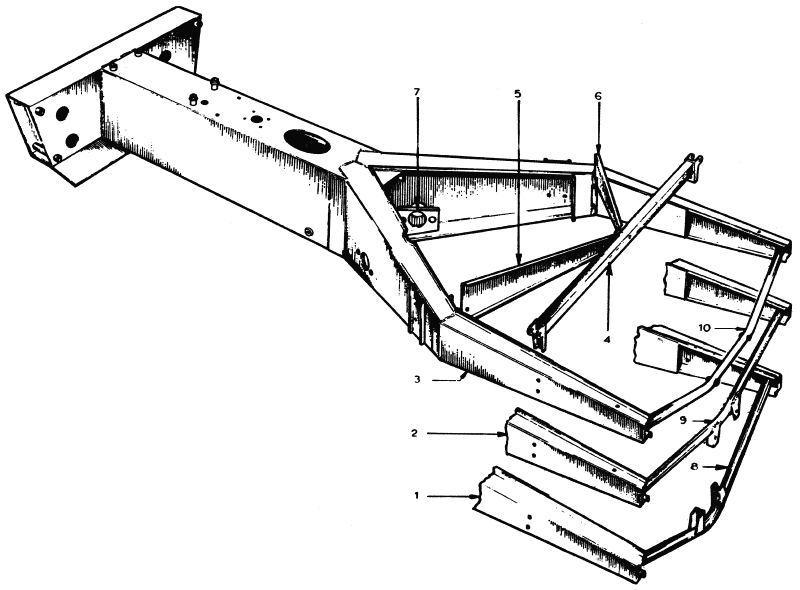

LOTUS EUROPA TC/TCS PARTS MANUALSection AA -- ChassisLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (115K) |
Notes Bulletin Reference | |||||||||||||
1 | C074A0715W | 1 | 1 | + | + | Assembly - Chassis - (Type 336 G/Box Mounting) | - More Info - | ||||||
2 | C074A0722W | 1 | 1 | + | + | Assembly - Chassis - (Type 352 G/Box Mounting) | - More Info - | ||||||
3 | C074A0724W | 1 | 1 | + | + | Assembly - Chassis - (Type 352/365 G/Box Mounting) | - More Info - | ||||||
3 | A074A0012Z | 2 | 2 | 2 | 2 | Tube - Lower Wishbone Pivot | |||||||
4 | A074A0714W | 1 | 1 | 1 | 1 | Beam - Cross | |||||||
4 | XUFB0516 | 4 | 4 | 4 | 4 | Bolt - Cross Beam to Chassis | |||||||
4 | 118B | 4 | 4 | 4 | 4 | Washer - Cross Beam to Chassis | |||||||
4 | 211 | 4 | 4 | 4 | 4 | Nut - Cross Beam to Chassis | |||||||
5 | D074A0295Z | 1 | 1 | 1 | 1 | Brace - L/H Diagonal | |||||||
6 | D074A0296Z | 1 | 1 | 1 | 1 | Brace - R/H Diagonal | |||||||
6 | XUFB0512 | 4 | 4 | 4 | 4 | Bolt - Brace to Chassis | |||||||
6 | Z05W2002 | 4 | 4 | 4 | 4 | Washer - Brace to Chassis | |||||||
6 | 211 | 4 | 4 | 4 | 4 | Nut - Brace to Chassis | |||||||
6 | 17A | 1 | 1 | 1 | 1 | Bolt - Brace to Cross Beam | |||||||
6 | A05W2002 | 1 | 1 | 1 | 1 | Washer - Brace to Cross Beam | |||||||
6 | 211 | 1 | 1 | 1 | 1 | Nut - Brace to Cross Beam | |||||||
7 | A074A02B5Z | 1 | 1 | 1 | 1 | Plate - Reinforcing L/H | |||||||
7 | A07402B6Z | 1 | 1 | 1 | 1 | Plate - Reinforcing R/H | |||||||
8 | A074A0171W | 1 | 1 | + | + | Assembly - Type 335 G/Box Mounting | |||||||
9 | A074A0313Z | 1 | 1 | + | + | Assembly - Type 352 G/Box Mounting | Tube | ||||||
9 | B074A0315Z | 1 | 1 | + | + | Assembly - Type 352 G/Box Mounting | Bracket - Mounting L/H | ||||||
9 | B074A0316Z | 1 | 1 | + | + | Assembly - Type 352 G/Box Mounting | Bracket - Mounting R/H | ||||||
10 | B074A0323Z | 1 | 1 | + | + | Assembly - Type 352/365 G/Box Mounting |
