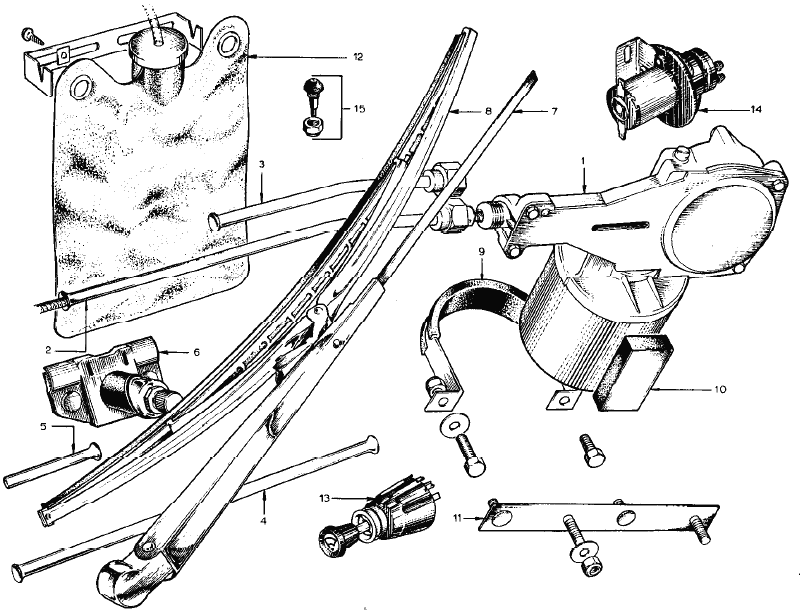

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection MG -- Electrical -- Windscreen WiperLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (300K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046M6150 | 1 | 1 | Windscreen Wiper Motor | |||||||||
| 1 | 054M6041 | 1 | Windscreen Wiper Motor | ||||||||||
| 1 | 054M6041 | 1 | Windscreen Wiper Motor | Up to Chassis No. 1456 | |||||||||
| 1 | 054M6042 | 1 | Windscreen Wiper Motor | From Chassis No. 1457 | |||||||||
| 1 | 046M6154 | 1 | 1 | Bundy - Motor to Wheelbox | |||||||||
| 2 | 054M0003 | 1 | Bundy - Motor to Wheelbox | ||||||||||
| 2 | 054M0003 | 1 | Bundy - Motor to Wheelbox | Up to Chassis No. 1456 | |||||||||
| 3 | A054M0010 | 1 | Bundy - Motor to Wheelbox | From Chassis No. 1457 | |||||||||
| 4 | A054M0011 | 1 | Bundy - Wheelbox to Wheelbox | From Chassis No. 1457 | |||||||||
| 4 | 046M6155 | 1 | 1 | 1 | 1 | Bundy - Over-run | |||||||
| 5 | 026M0012 | 1 | 1 | 1 | 1 | Bundy - Over-run | |||||||
| 5 | 046M6156 | 1 | 1 | Wheelbox Assembly | |||||||||
| 6 | 036M6151 | 1 | 1 | 1 | Wheelbox Assembly | ||||||||
| 6 | 036M6151 | 1 | Wheelbox Assembly | Up to Chassis No. 1456 | |||||||||
| 6 | 054M6056 | 2 | Wheelbox Assembly | From Chassis No. 1457 | |||||||||
| 7 | 046M6177 | 1 | 1 | 1 | Wiper Arm | ||||||||
| 7 | 046M6177 | 1 | Wiper Arm | Up to Chassis No. 1456 | |||||||||
| 7 | 054M6033 | 1 | Wiper Arm LH | From Chassis No. 1457 | |||||||||
| 7 | 054M6036 | 1 | Wiper Arm RH | From Chassis No. 1457 | |||||||||
| 8 | 046M6178 | 1 | 1 | 1 | Wiper Blade | ||||||||
| 8 | A036M6379 | 1 | Wiper Blade (was 046M6178 - then A054M6090) | Up to Chassis No. 1456 | |||||||||
| 8 | 054M6037 | 2 | Wiper Blade | From Chassis No. 1457 | |||||||||
| 9 | 046M6155 | 1 | 1 | 1 | 1 | Mounting Bracket - Wiper Motor | |||||||
| 9 | RUFS0406 | 2 | 2 | Screw - Wiper Motor to Body | |||||||||
| 9 | L04W0000 | 2 | 2 | Washer - Wiper Motor to Body | |||||||||
| 9 | A04W0906 | 2 | 2 | Washer - Wiper Motor to Body | |||||||||
| 9 | XUFB0408 | 1 | Screw - Wiper Motor to Body | ||||||||||
| 9 | XUFB0408 | 1 | Screw - Wiper Motor to Body | Up to Chassis No. 1456 | |||||||||
| 9 | XUFB0416 | 1 | Screw - Wiper Motor to Body | ||||||||||
| 9 | XUFB0416 | 1 | Screw - Wiper Motor to Body | Up to Chassis No. 1456 | |||||||||
| 9 | A04W1606 | 2 | Washer - Wiper Motor to Body | ||||||||||
| 9 | A04W1606 | 2 | Washer - Wiper Motor to Body | Up to Chassis No. 1456 | |||||||||
| 9 | YUFN040F | 2 | Nut - Wiper Motor to Body | ||||||||||
| 9 | YUFN040F | 2 | Nut - Wiper Motor to Body | Up to Chassis No. 1456 | |||||||||
| 10 | 046M6152 | 1 | 1 | 1 | 1 | Mounting Pad | |||||||
| 11 | 054M1677 | 1 | Mounting Bracket - Wiper Motor | From Chassis No. 1457 | |||||||||
| 11 | A04W0904 | 2 | Washer - Mounting Bracket to Bulkhead | From Chassis No. 1457 | |||||||||
| 11 | YUFN040F | 2 | Nut - Mounting Bracket to Bulkhead | From Chassis No. 1457 | |||||||||
| 12 | 049B6009 | 1 | 1 | 1 | 1 | Washer Bag | Up to Chassis No. ? | ||||||
| 12 | 046B6134 | 1 | 1 | 1 | 1 | Washer Bag | From Chassis No. ? To ? | ||||||
| 12 | A036B6160 | 1 | 1 | 1 | 1 | Washer Bag | From Chassis No. ? | ||||||
| 12 | A036B6161 | 1 | 1 | 1 | 1 | Washer Bag Top with Valve Assembly | From Chassis No. ? | ||||||
| 12 | A036B6162 | 1 | 1 | 1 | 1 | Mounting Bracket - Washer Bag | From Chassis No. ? | ||||||
| 12 | PSTS0608 | 2 | 2 | 2 | 2 | Screw - Mounting Bracket to Bulkhead | |||||||
| 12 | 036B6001 | 2 | 2 | 2 | 2 | Nut - Mounting Bracket to Bulkhead | |||||||
| 12 | A036B6173 | 1 | 1 | 1 | 1 | Tube - Bag to Pump | From Chassis No. ? | ||||||
| 12 | A054M6057 | 1 | 1 | 1 | 1 | Tube - Pump to Jet/T Piece | From Chassis No. ? | ||||||
| 13 | 050M0123 | 1 | 1 | Switch - Wiper/Washer Pump | |||||||||
| 13 | 054M6052 | 1 | Switch - Wiper/Washer Pump (Sweden) from Feb. 1970 | ||||||||||
| 13 | A054M6067 | 1 | 1 | Knob - Switch | |||||||||
| 14 | 036M6284 | 1 | Washer Pump (Sweden) | From Feb. 1970 | |||||||||
| 14 | 046B6010 | 1 | 1 | 1 | Jet - Washer (replaced by 046B6306) | ||||||||
| 14 | 046B6206 | 1 | 1 | 1 | 1 | Jet - Washer (replaced by 036B6085) | Up to Chassis No. 1456 | ||||||
| 15 | 036B6085 | 1 | Jet - Washer | ||||||||||
| 15 | 054M6040 | 2 | Jet - Washer | ||||||||||
| 15 | 046M6207 | 1 | T Piece (teplaced by 054M6053) | ||||||||||
| 15 | 054M6053 | 1 | T Piece | ||||||||||
| 15 | 054M6055 | 2 | Tube - T piece to Hose |
