LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection MF -- Electrical -- Side and Interior LightsLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (150K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

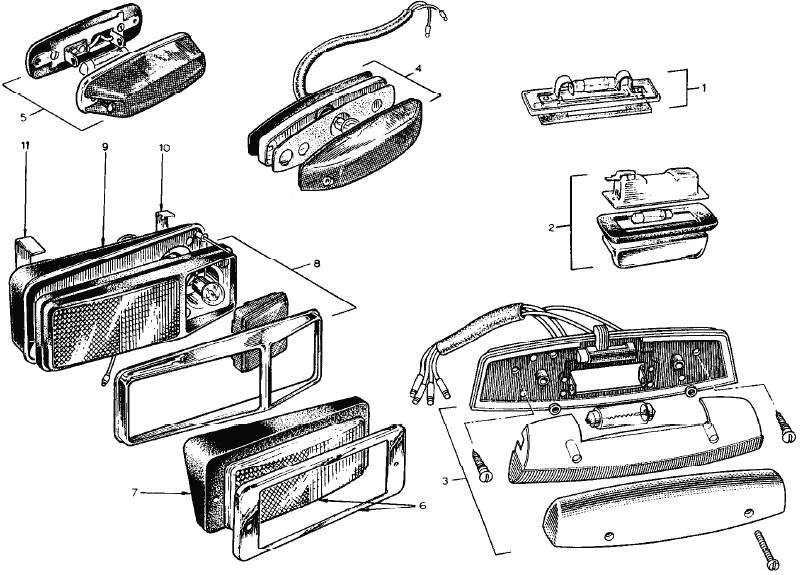

| 1 | 046M6144 | 1 | 1 | Number Plate lamp | |||||||||
| 1 | 254 | 1 | 1 | Bulb (254) - Number Plate lamp | - More Info - | ||||||||
| 2 | 036M6253 | 1 | 1 | Number Plate Lamp | |||||||||
| 2 | DSTS0612 | 2 | 2 | 2 | 2 | Screw - Number Plate Lamp Mouting | |||||||
| 2 | 036B6001 | 2 | 2 | 2 | 2 | Nut - Number Plate Lamp Mounting | |||||||
| 3 | 036M6048 | 1 | 1 | 1 | 1 | Interior Lamp | |||||||
| 3 | 036M6317 | 1 | 1 | 1 | 1 | Bulb (239) - Interior Lamp | - More Info - | ||||||
| 3 | PSTS0616 | 2 | 2 | 2 | 2 | Screw - Interior Lamp to Bulkhead | |||||||
| 3 | 036B6001 | 2 | 2 | 2 | 2 | Nut - Interior Lamp to Bulkhead | |||||||
| 4 | 046M6165 | 2 | 2 | Repeater Flasher | - More Info - | ||||||||
| 4 | 050M6162 | 2 | 2 | Bulb (501) | - More Info - | ||||||||
| 5 | 036M6001 | 2 | Repeater Flasher | ||||||||||
| 5 | A036M6339 | 2 | Bulb (254) - Flasher Repeater | - More Info - | |||||||||
| 6 | 036M6093 | 2 | Reflector and Bezel Side Marker - Amber | From Chassis No. ? To ? | |||||||||
| 6 | 036M6092 | 2 | Reflector and Bezel Side Marker - Red | From Chassis No. ? To ? | |||||||||
| 7 | W0083 | 2 | Moulding - Reflector Mounting | From Chassis No. ? To ? | |||||||||
| 7 | PSTS0620 | 8 | Screw - Reflector Mounting | From Chassis No. ? To ? | |||||||||
| 7 | 036B6001 | 8 | Nut - Reflector Mounting | From Chassis No. ? To ? | |||||||||
| 8 | 036M6282 | 2 | Side Marker Lamp - Amber | From Chassis No. ? To ? | |||||||||
| 8 | 036M6281 | 2 | Side Marker Lamp - Red | From Chassis No. ? To ? | |||||||||
| 9 | 050B1852 | 2 | Insert - Side marker Lamp - Front | From Chassis No. ? To ? | |||||||||
| 10 | A050B1853 | 2 | Mounting Bracket - Front - Side Marker Lamp - Insert to Body | From Chassis No. ? To ? | |||||||||
| 11 | A050B1854 | 2 | Mounting Bracket - Rear - Side Marker Lamp - Insert to Body | From Chassis No. ? To ? | |||||||||
| 10 | UNKNOWN | 8 | Pop Rivet - Insert to Body | From Chassis No. ? To ? | |||||||||
| 10 | 054M0126 | 2 | Earth Lead | From Chassis No. ? To ? | |||||||||
| 10 | A036M6330 | 2 | Bulb (989) - Side Marker lamp | From Chassis No. ? To ? - More Info - |
