LOTUS EUROPA S1/S2 COMBINED PARTS MANUAL

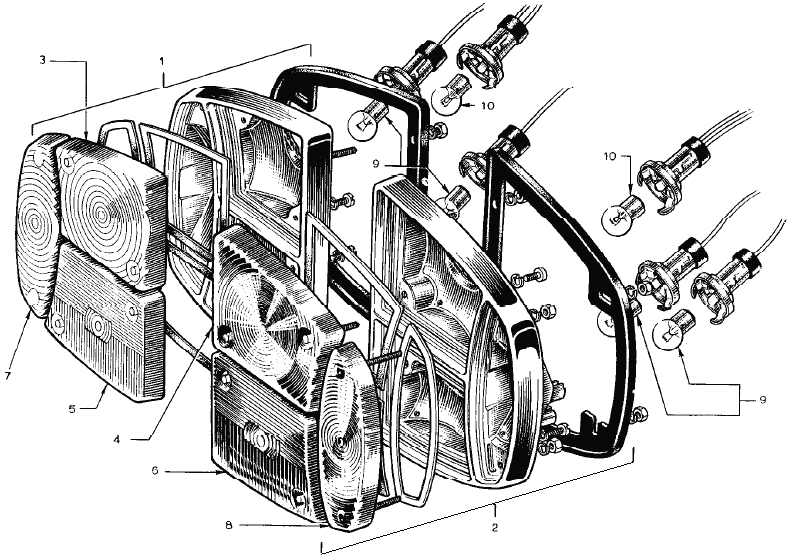

Section MD -- Electrical -- Taillights S1 and S1A

Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (165K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 046M61421 1         Rear Lamp Assembly LH Up to Chassis No. 0541
 - More Info -
2 046M61431 1         Rear Lamp Assembly RH Up to Chassis No. 0541
 - More Info -
3 046M61891 1         Lens Up to Chassis No. 0541
4 046M61921 1         Lens Up to Chassis No. 0541
5 046M61911 1         Lens Up to Chassis No. 0541
6 046M61941 1         Lens Up to Chassis No. 0541
7 046M61901 1         Lens - Indicator LH Up to Chassis No. 0541
7 046M6193          Replaced by 046M6190
8 046M61901 1         Lens - Indicator RH Up to Chassis No. 0541
9 A036M63294 4         Bulb (382) Up to Chassis No. 0541
 - More Info -
10 A036M63312 2         Bulb (380) Up to Chassis No. 0541
 - More Info -
