LOTUS EUROPA S1/S2 COMBINED PARTS MANUAL

Section MB -- Electrical -- Headlights

Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (155K)

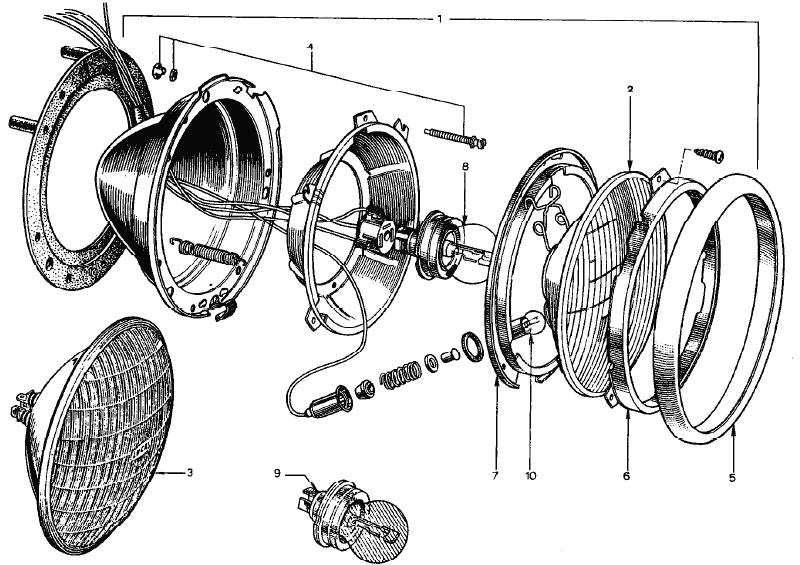

Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 046M61602 2 2 2     + Headlamp - LH dip
1 A054M60642 2 2 2     + Headlamp - LH dip
1 046M61612 2 2 2      +Headlamp - RH dip (Yellow Bulb) France only
1 036M60792 2 2 2      +Headlamp - RH dip (Yellow Bulb) France only
1 036M60802 2 2 2      +Headlamp - RH dip U.S.A. - Canada & Switzerland
1 036M63022 2 2 2      +Headlamp - RH dip U.S.A. - Canada & Switzerland
1 036M60782 2 2 2      +Headlamp - RH dip Switzerland & Italy
2 036M60812 2 2 2     + Lamp Unit - LH dip
2 046M61852 2 2 2      +Lamp Unit - RH dip Except U.S.A. - Canada & Switzerland
3 036M60832 2 2 2      +Lamp Unit - RH dip U.S.A. - Canada & Switzerland
4 046M61872 2 2 2       Screw - Trimmer - Headlamp Assembly
5 046M61862 2 2 2       Headlamp Bezel  - More Info -
5 036M60362 2 2 2       Headlamp Bezel  - More Info -
6 046M61632 2 2 2       Headlamp Rim
6 046M61622 2 2 2       Headlamp Gasket
7 036M60442 2 2 2       Basket
8 A036M63602 2 2 2       Bulb (? #) Except U.S.A - Canada - Switzerland and France
9 A036M6361 (411)2 2 2 2       Bulb (411) - France only
10 A036M6330 (989)2 2 2 2       Bulb (989) Except U.S.A - Canada & Switzerland ?
 - More Info -
10 RSTS10148 8 8 8       Screw - Headlamp Mounting
10 036B60048 8 8 8       Nut - Headlamp Mounting
