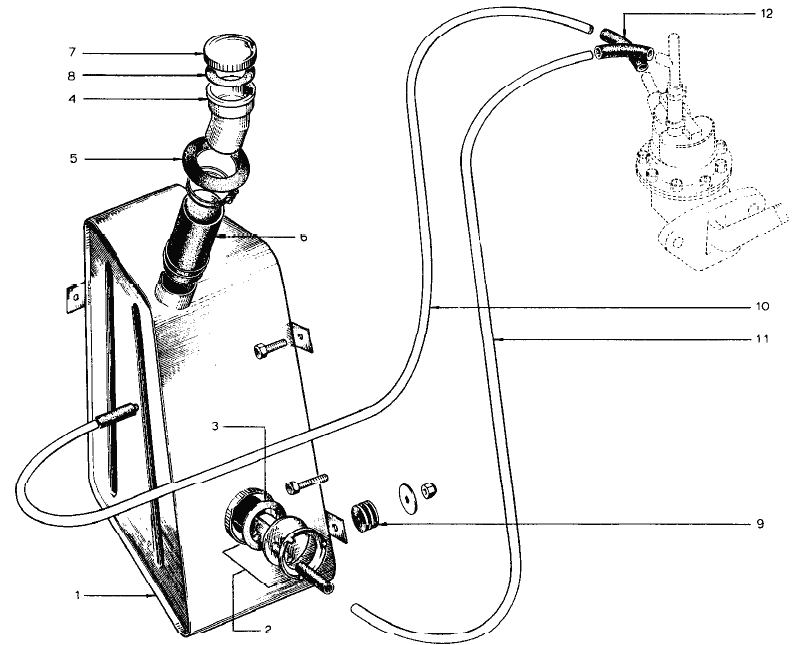

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection LA -- Fuel -- Fuel Tank and HosesLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (100K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046L0014 | 1 | 1 | Fuel Tank | |||||||||
| 1 | 054L0015 | 1 | 1 | Fuel Tank | |||||||||
| 2 | 046L6000 | 1 | 1 | Fuel Level Transmitter | |||||||||
| 2 | 046L6008 | 1 | 1 | Fuel Level Transmitter | |||||||||
| 3 | 046L6004 | 1 | 1 | 1 | 1 | Fuel Level Transmitter Gasket | - More Info - | ||||||
| 4 | 046L0705 | 1 | 1 | Filler Neck | |||||||||
| 4 | 054L0705 | 1 | 1 | Filler Neck | |||||||||
| 5 | 046L6001 | 1 | 1 | 1 | 1 | Gromet - Filler Neck | |||||||
| 6 | 046L0003 | 1 | 1 | 1 | 1 | Hose - Filler Neck to Tank | |||||||
| 6 | 046L6003 | 2 | 2 | 2 | 2 | Clip - Filler Neck Hose | |||||||
| 7 | 046L6002 | 1 | 1 | 1 | 1 | Fuel Filler Cap | - More Info - | ||||||
| 8 | 046L6005 | 1 | 1 | 1 | 1 | Seal Ring - Fuel Filler Cap | |||||||
| 8 | 054B6109 | Replaced by A036L6019 | |||||||||||
| 9 | A03L6019 | 6 | 6 | Rubber Washer - Fuel Tank Mounting | |||||||||
| 9 | YUFN050F | 2 | 2 | Nut - Fuel Tank Mounting | |||||||||
| 9 | A05W1606 | 2 | 2 | Washer - Fuel Tank Mounting | 3/32" thick, 7/8" OD, 13/32" ID | ||||||||
| 9 | XUFS0310 | 1 | 1 | Screw - Fuel Tank Mounting - Rear Lug | |||||||||
| 9 | A03W1606 | 1 | 1 | Washer - Fuel Tank Mounting - Rear Lug | |||||||||
| 9 | YUFN030F | 1 | 1 | Nut - Fuel Tank Mounting - Rear Lug | |||||||||
| 9 | XUFS0316 | 2 | 2 | Screw - Fuel Tank Mounting - top & Bottom Side Lugs | |||||||||
| 9 | A03W1606 | 1 | 1 | Washer - Fuel Tank Mounting - top & Bottom Side Lugs | |||||||||
| 9 | YUFN030F | 1 | 1 | Nut - Fuel Tank Mounting - top & Bottom Side Lugs | |||||||||
| 2 | Part of 046L6000 | Fuel Level Transmitter Clamp | - More Info - | ||||||||||
| 9 | XUFS0310 | 1 | 1 | Screw - Fuel Tank Mounting Center Side Lug | |||||||||
| 9 | A03W1606 | 1 | 1 | Washer - Fuel Tank Mounting Center Side Lug | |||||||||
| 9 | YUFN030F | 1 | 1 | Nut - Fuel Tank Mounting Center Side Lug | |||||||||
| 10 | 046L2000 | 1 | 1 | Fuel Line - Feed | |||||||||
| 10 | 054L2000 | 1 | 1 | Fuel Line - Feed | |||||||||
| 11 | 046L2001 | 1 | 1 | Fuel Line - Return | |||||||||
| 11 | 054L2001 | 1 | 1 | Fuel Line - Return | |||||||||
| 12 | 046L6343 | 4 | 4 | 4 | 4 | Sleeve - Fuel Line Connections |
