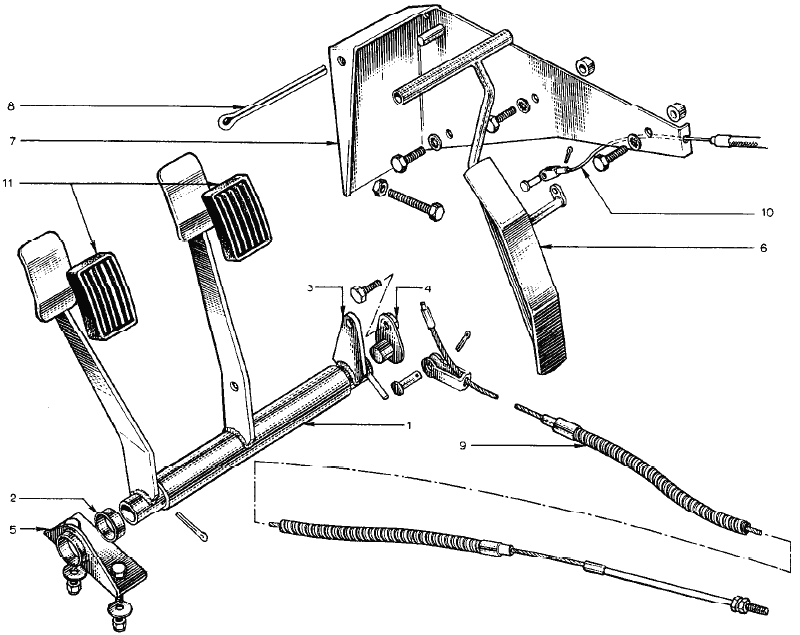

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection JE -- Brakes -- Pedals (S1, S1A and S1B)Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (115K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046J0707 | 1 | 1 | + | Pedal Assembly | ||||||||
| 2 | 046J6027 | 1 | 1 | + | Bushing - Clutch Pedal Shaft | ||||||||
| 3 | 046J0073 | 1 | 1 | + | Spikot Plate | ||||||||
| 4 | 046J6026 | 1 | 1 | + | Support Bush - Brake Pedal | ||||||||
| 4 | XUFS0412 | 1 | 1 | + | Screw - Support Bush to Chassis | ||||||||
| 4 | L04W0000 | 1 | 1 | + | Washer - Support Bush to Chassis | ||||||||
| 5 | 046J0030 | 1 | 1 | + | Pedal Mounting Bracket | ||||||||
| 5 | YUFN040F | 2 | 2 | + | Nut - Mounting Bracket to Body | ||||||||
| 5 | A04W0905 | 2 | 2 | + | Washer - Mounting Bracket to Body | 1/32" thick, 1/2" OD, 1/4" ID | |||||||
| 6 | 046S0702? | 1 | 1 | + | Throttle Pedal Assembly | This number also used for "Throttle Cable" | |||||||
| 7 | 046S0081 | 1 | 1 | + | Mounting Bracket - Throttle pedal | ||||||||
| 8 | 046S6016 | 1 | 1 | + | Pivot Pin | ||||||||
| 8 | XUFS0412 | 3 | 3 | + | Screw - Throttle Pedal Mounting | ||||||||
| 8 | L04W0000 | 3 | 3 | + | Washer - Throttle Pedal Mounting | ||||||||
| 8 | XUFS0416 | 1 | 1 | + | Screw - Throttle Stop | ||||||||
| 8 | AUFN040H | 1 | 1 | + | Nut - Throttle Stop | ||||||||
| 9 | 046Q0025 | 1 | 1 | + | Clutch Cable | ||||||||
| 9 | W0084 | 1 | 1 | Clevis Pin - Clutch Cable to Pedal | |||||||||
| 9 | W0086 | 1 | 1 | Split Pin - Clutch Cable to Pedal | |||||||||
| 10 | 046S0702 | 1 | 1 | Throttle Cable | This number also used for "Throttle Pedal Assembly" | ||||||||
| 10 | W0084 | 1 | 1 | Clevis Pin - Throttle Cable to Pedal | |||||||||
| 10 | W0086 | 1 | 1 | Split Pin - Throttle Cable to Pedal | |||||||||
| 11 | 036J6011 | 1 | 1 | Replaced by 036J6029 | |||||||||
| 11 | 036J6029 | 2 | 2 | 2 | 2 | Pedal Rubber | - More Info - |
